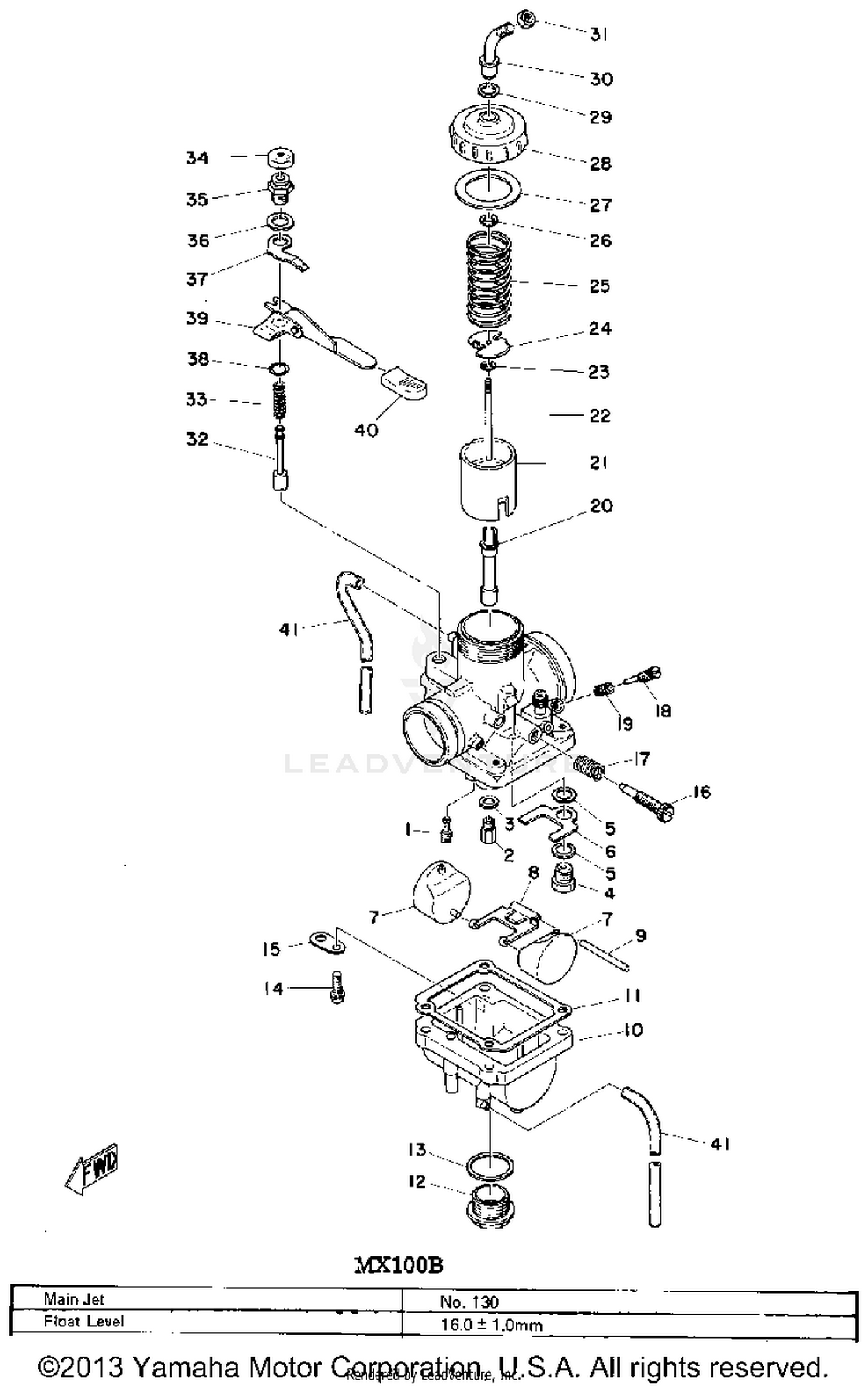

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JET, PILOT #50
193-14142-50-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
CARBURETOR ASSEMBLY 1
427-14101-60-00
|
$118.99 | ||
|
Unavailable |
|||
|
#2
JET, MAIN #120 (#120)
137-14143-24-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#130)
137-14143-26-A0
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#140)
137-14143-28-A0
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, MAIN JET
346-14153-70-00
|
$2.17 | ||
|
Unavailable |
|||
|
#4
NEEDLE VALVE SET
23L-14107-25-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, NEEDLE VALVE
214-14195-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLATE
402-14146-00-00
|
$2.17 | ||
|
Unavailable |
|||
|
#7
FLOAT
280-14185-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, FLOAT
280-14187-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#9
PIN, FLOAT
127-14186-00-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY, FLOAT CHMBR 1
402-14181-08-33
|
$39.99 | ||
|
Unavailable |
|||
|
#11
GASKET, FLOAT CHAMBER
360-14184-01-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, SCREW
278-14115-00-00
|
$2.55 | ||
|
Unavailable |
|||
|
#13
WASHER, SCREW PLUG
278-14117-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLATE
132-14146-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
THROTTLE SCREW SET
24X-14103-00-00
Superseded by 40T-14103-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, THROTTLE STOP
137-14133-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
AIR SCREW SET
23X-14104-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, AIR ADJUSTING
127-14134-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NOZZLE, MAIN
280-14141-34-00
|
$13.14 | ||
|
Unavailable |
|||
|
#21
VALVE, THROTTLE 1
360-14112-10-00
|
$44.99 | ||
|
Unavailable |
|||
|
#22
NEEDLE
644-14116-03-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
137-14137-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAT, SPRING
401-14136-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#25
SPRING, THROTTLE VALVE
248-14131-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
363-14137-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
246-14126-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
TOP, MXXING CHAMBER
401-14158-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#29
GASKET
363-14198-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GUIDE, CABLE
363-14155-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
NUT, CABLE ADJUSTING
127-14161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUNGER, STARTER
278-14171-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, PLUNGER
256-14135-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#35
CAP, PLUNGER
278-14174-00-00
|
$3.15 | ||
|
Unavailable |
|||
|
#36
WASHER, STARTER LVR
132-14179-00-00
|
$1.30 | ||
|
Unavailable |
|||
|
#37
PLATE, STARTER LVR
402-14178-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#38
O-RING
93220-09001-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
LEVER, STARTER LH
360-14175-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#40
CARBURETOR ASSEMBLY 1
360-14101-02-00
|
$126.99 | ||
|
Unavailable |
|||
|
#41
PIPE, AIRVENT
183-14197-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
