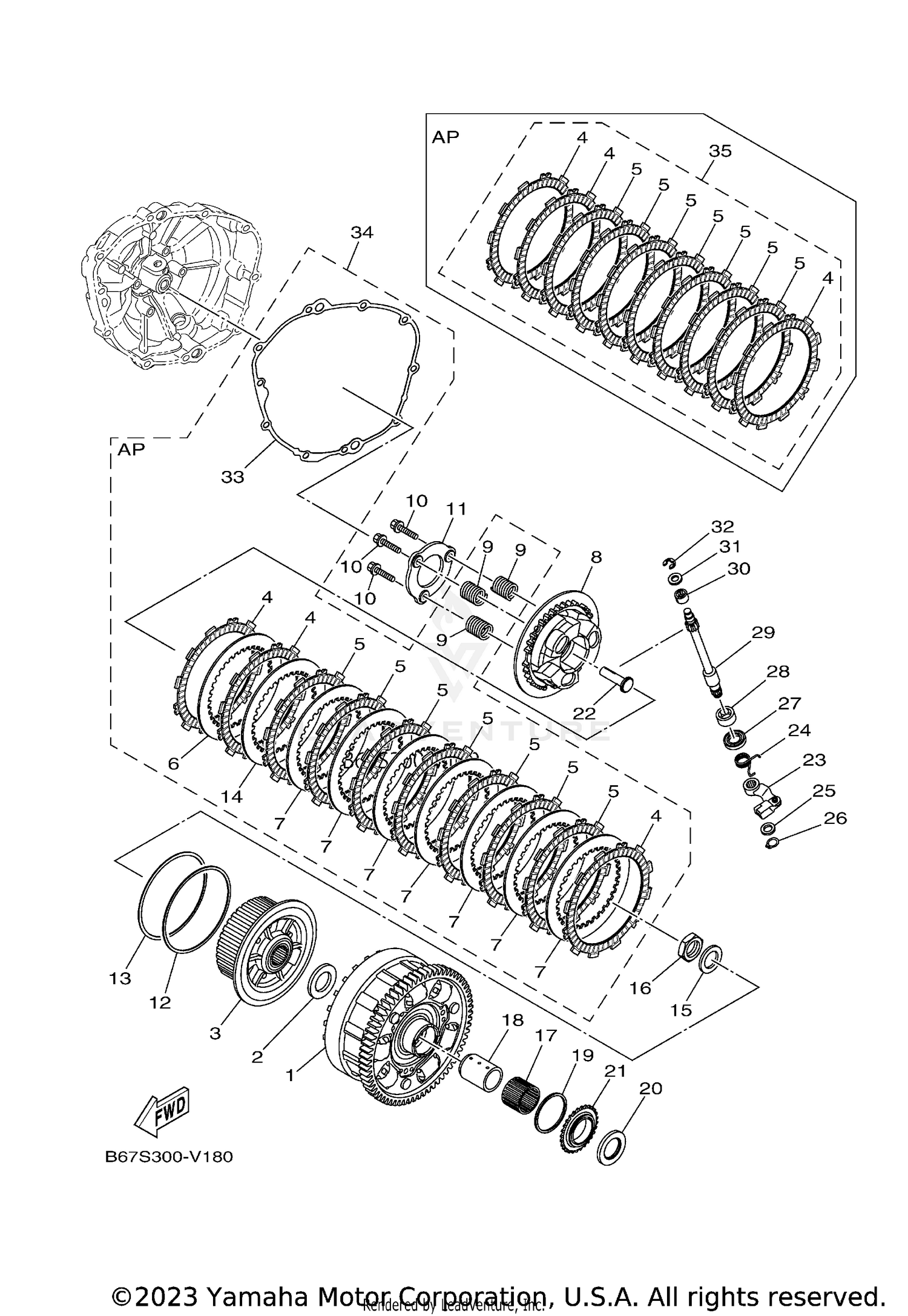

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR
BW8-16150-00-00
|
$511.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
363-16154-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
B67-16371-00-00
|
$171.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FRICTION 2
2CR-16330-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION
2CR-16321-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 1
2CR-16324-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
2CR-16325-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PRESSURE PLATE ASSY
BW8-16350-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
2CR-16173-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, SPRING
2CR-16337-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, PRESSURE 2
2CR-16352-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, SEAT
2CR-16384-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, CUSHION
2CR-16383-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, CLUTCH 2
2CR-16325-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, CLUTCH 2
2CR-16325-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#14
PLATE, CLUTCH 2
2CR-16325-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, CONICAL SPRING
90208-20001-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90179-20007-00
Superseded by 90179-20022-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93310-23168-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER 1
14B-16181-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-44008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, THRUST 1
2CR-16154-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPROKET, DRIVE
14B-13354-00-00
Superseded by 14B-13354-01-00
|
$142.99 | ||
|
Unavailable |
|||
|
#22
ROD, PUSH 1
1WS-16356-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PUSH LEVER ASSY
2CR-16340-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-16041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10029-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING
93315-21570-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
AXLE, PUSH LEVER
5VY-16382-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
CIRCLIP
99001-07600-00
Superseded by 99080-07600-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
GASKET, CRANKCASE COVER 2
2CR-15461-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLUTCH PLATE KIT
B67-W001G-00-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
FRICTION PLATE KIT
B67-W001M-00-00
|
$180.99 | ||
|
Available to order. Add to View Price |
|||
