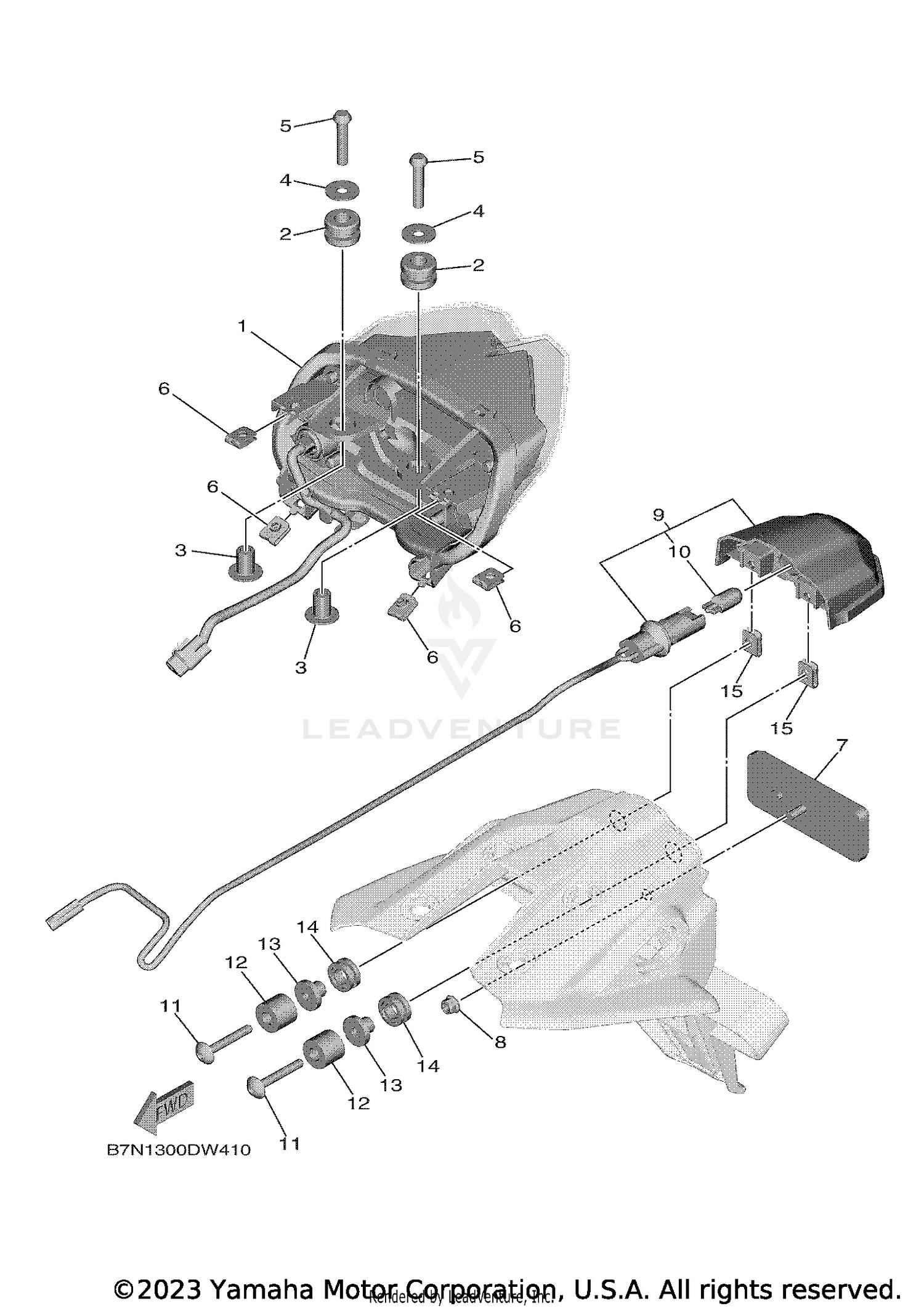

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY
B7N-84700-00-00
|
$258.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-14102-00
Superseded by 90480-14023-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
COLLAR
90387-06136-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06062-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, BUTTON HEAD
92012-06030-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LICENCE LIGHT UNIT ASSY
2PN-84745-01-00
Superseded by 2PN-84745-02-00
|
$45.99 | ||
|
Unavailable |
|||
|
#10
BULB (12V-5W)
5DM-84347-00-00
Superseded by 4SV-84347-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-05006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-08125-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-05044-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-14017-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$2.95 | ||
|
Unavailable |
|||
