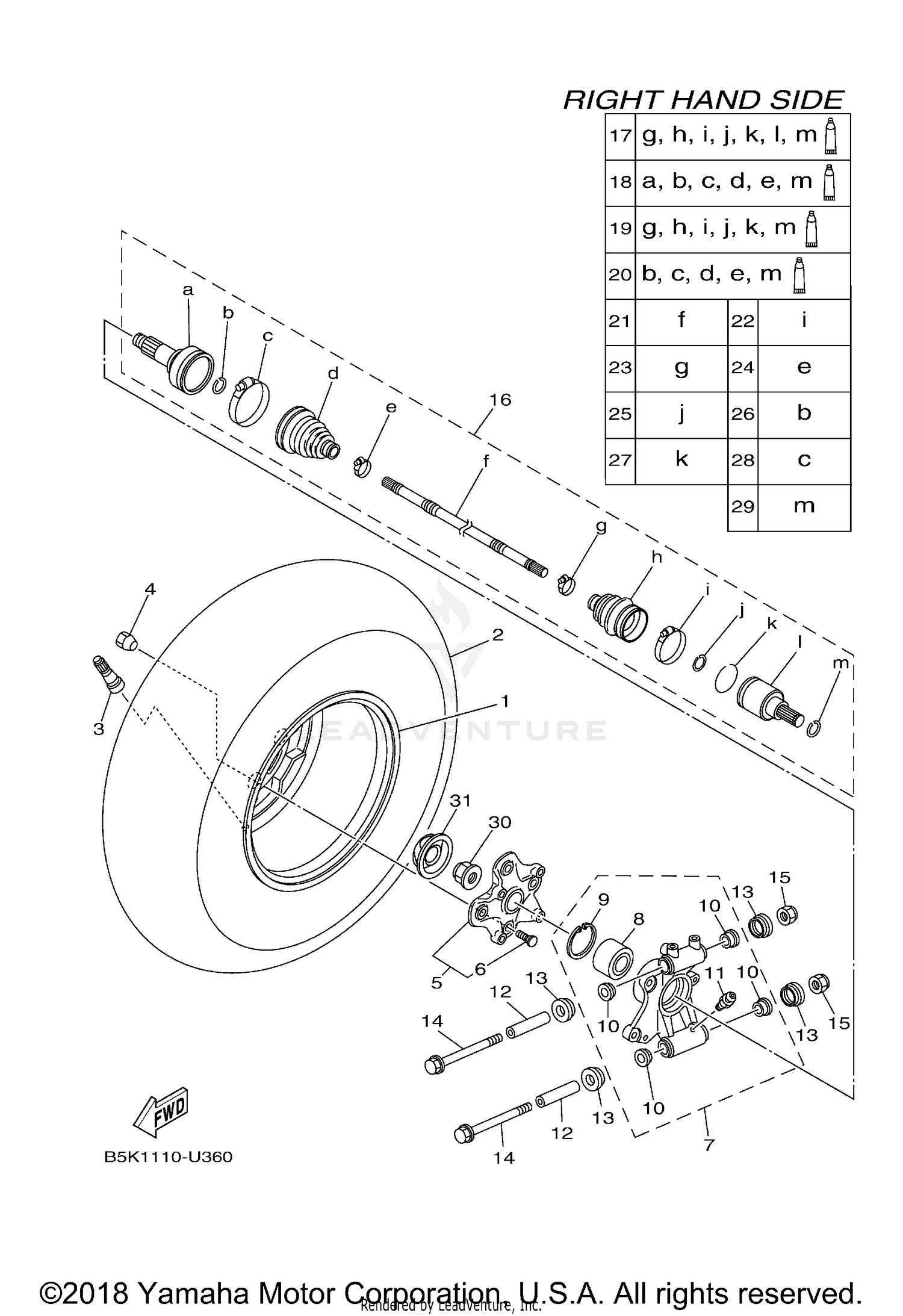

Rear Wheel 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
B16-F5390-00-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (AT25X10-12 MU20**TL)
94110-12814-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-10020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB ASSY 2
B16-F510D-01-00
Superseded by B16-F510D-03-00
|
$59.99 | ||
|
Unavailable |
|||
|
#6
BOLT, SERRATION
90114-10014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
REAR KNUCKLE ASSY.
2BG-F532F-01-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93305-00602-00
|
$110.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
CIRCLIP
99009-55500-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH, SOLID
90381-17067-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$8.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPACER
5KM-23448-00-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COVER, THRUST 1
2NL-23517-00-00
Superseded by 3JN-23517-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-10212-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
REAR DRIVE SHAFT A
B16-2531H-00-00
Superseded by B16-2531H-01-00
|
$299.99 | ||
|
Unavailable |
|||
|
#17
. .DOUBLE OFF SET JOINT
B16-2530V-00-00
Superseded by B16-2530V-01-00
|
$195.99 | ||
|
Unavailable |
|||
|
#18
. .BALL JOINT SET
28P-2510F-03-00
Superseded by 28P-2510F-10-00
|
$452.99 | ||
|
Unavailable |
|||
|
#19
. .BOOT SET(DOUBLE OFFSET JOINT
B16-2510H-00-00
Superseded by B16-2510H-01-00
|
$92.99 | ||
|
Unavailable |
|||
|
#20
. .BOOT SET (BALL JOINT)
28P-2510G-01-00
Superseded by 28P-2510G-10-00
|
$64.99 | ||
|
Unavailable |
|||
|
#21
SHAFT
B16-2518E-10-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOOT BAND(DOUBLE OFFSET JOINT)
B16-2511H-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOOT BAND (SMALL)
B16-2512G-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOOT BAND (SMALL)
28P-2512G-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SNAP RING
B16-2512J-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
3B4-2512H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
B16-25182-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOOT BAND(DOUBLE OFFSET JOINT)
28P-2511H-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, SPRING
3B4-2536E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
90179-20016-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, WHEEL
1HP-F512A-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
