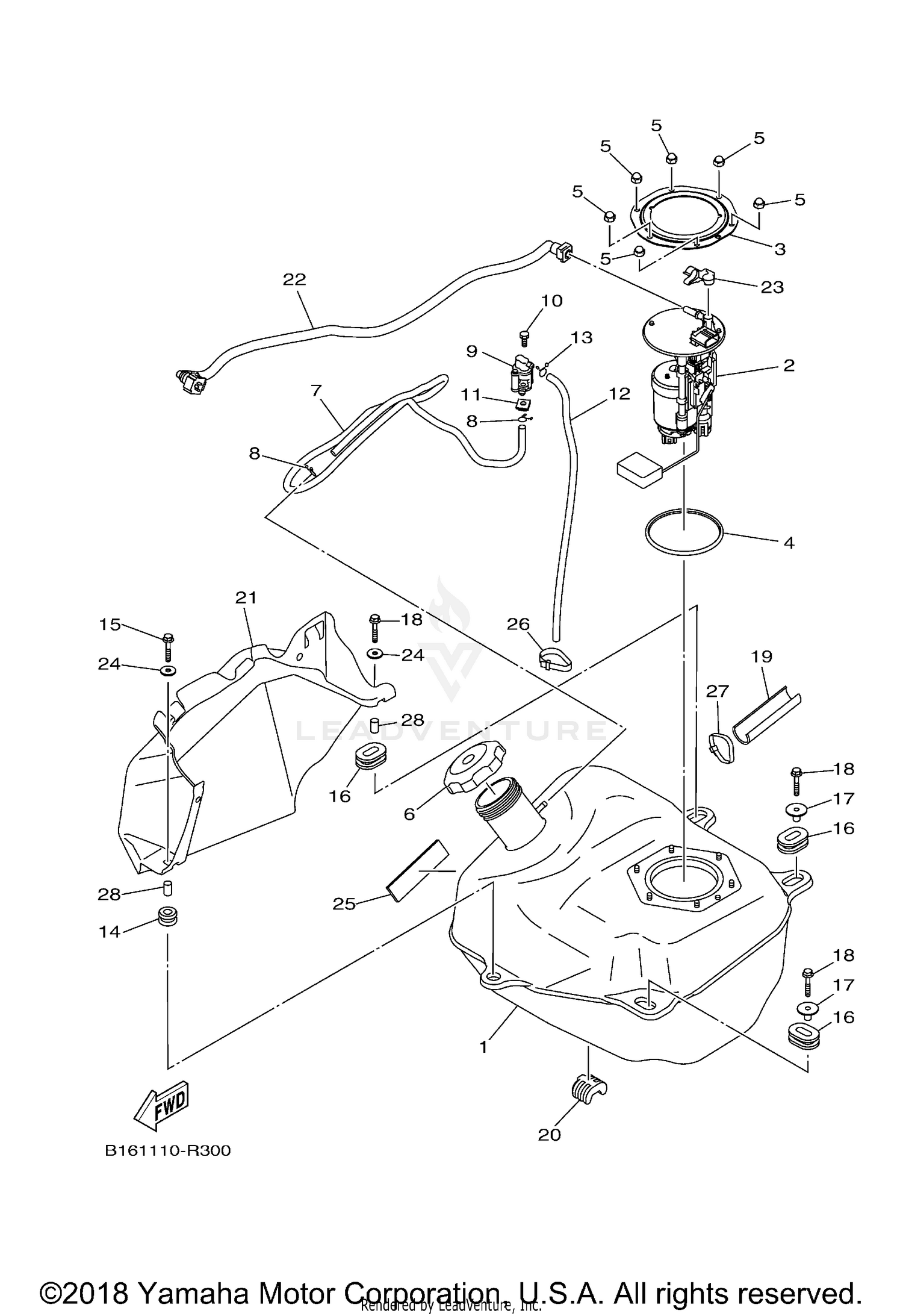

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
B16-F4110-00-00
|
$232.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUEL PUMP COMP.
B16-13907-00-00
Superseded by B16-13907-03-00
|
$505.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL PUMP
3B4-24491-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1S3-24486-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
95302-06800-00
Superseded by 95380-06800-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY
2P5-24610-00-00
Superseded by BVG-24610-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#7
HOSE (L1030)
90445-09829-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIPE JOINT ASSY
28P-24380-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON DEEP R
97002-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPRING
90183-061A3-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE (L470)
90445-09828-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#14
GROMMET
90480-18290-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE
95802-06035-00
Superseded by 95817-06035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-07021-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95802-06035-00
Superseded by 95817-06035-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
DAMPER, LOCATING 2
B16-F4182-01-00
Superseded by B16-F4182-04-00
|
$3.25 | ||
|
Unavailable |
|||
|
#20
DAMPER, LOCATING 1
B16-F4181-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
PROTECTOR, FUEL TANK
B16-F4141-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, FUEL 1
B16-13971-00-00
Superseded by B16-13971-01-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-14004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-06036-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER 1
2PA-21541-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-25003-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90464-32801-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COLLAR
90387-06M19-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
