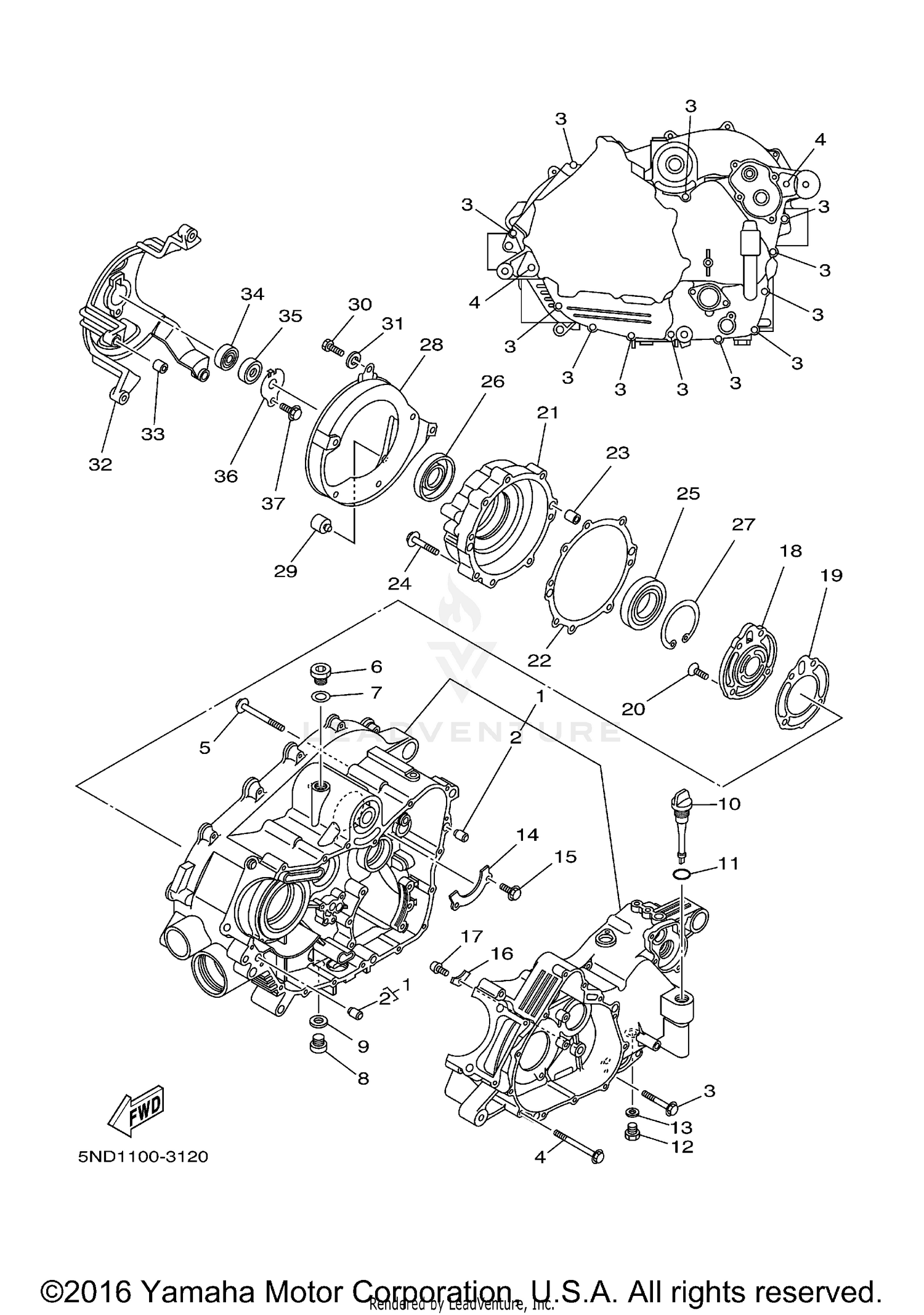

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
5ND-15100-00-00
Superseded by 5ND-15100-02-00
|
$1,015.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOLT, FLANGE
95027-06040-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06065-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95027-06065-00
|
$3.55 | ||
|
Unavailable |
|||
|
#6
PLUG, STRAIGHT SCREW
90340-18101-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-18130-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLUG, STRAIGHT SCREW
90340-14046-00
Superseded by 90340-14002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
214-11198-01-00
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLUG, OIL LEVEL
5GH-15362-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-19522-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
PLUG, STRAIGHT SCREW
90340-14029-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
214-11198-01-00
|
$3.17 | ||
|
Unavailable |
|||
|
#14
PLATE, BEARING COVER
5GH-15388-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95827-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE, BEARING COVER
2K7-15383-00-00
Superseded by 4XM-15383-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, COUNTERSUNK
90151-06014-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
COVER, AIR CLEANER
5GH-15414-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET 1
5GH-15454-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT HEAD
98707-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOUSING, BEARING 1
5GH-15163-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET, COVER PINION 2
5GH-15463-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
95027-06040-00
|
$3.55 | ||
|
Unavailable |
|||
|
#25
BEARING
93316-01003-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-32483-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
99009-80500-00
Superseded by 93420-80066-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER
5GH-15333-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DAMPER 5
5GH-15338-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
97017-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HOUSING, BEARING
5GH-15442-00-00
Superseded by 5GH-15442-01-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, DOWEL
91810-20001-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
BEARING
93306-20120-00
Superseded by 93306-20117-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
OIL SEAL
93101-12168-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLATE, BEARING COVER
4WV-15381-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
