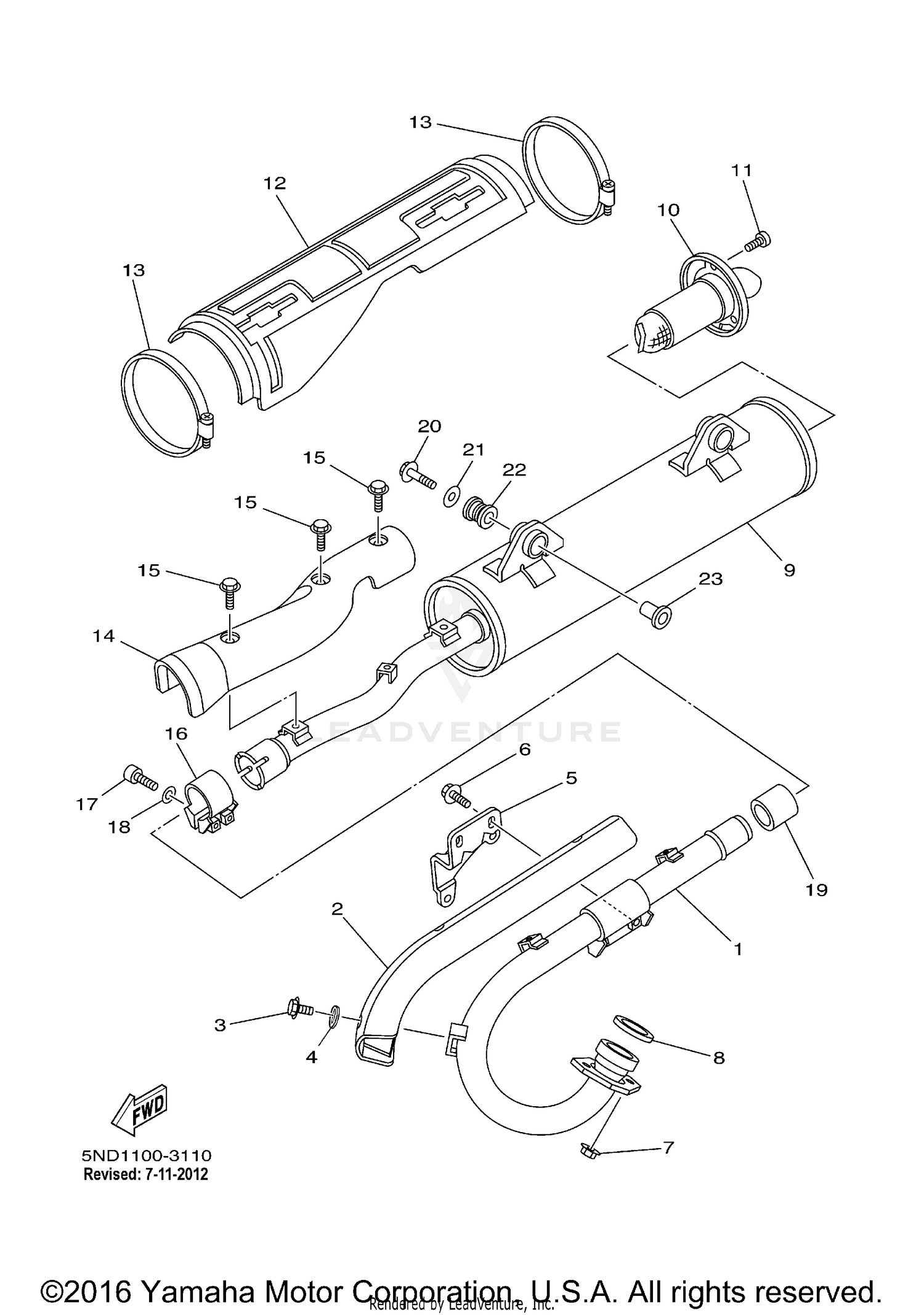

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
5ND-E4611-00-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
5ND-E4628-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,FLANGE
9581P-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06008-00
Superseded by 90201-06M02-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE 1
5ND-E477K-01-00
Superseded by 5ND-E477K-02-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
9581P-06016-00
Superseded by 95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT
90179-08410-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GASKET, EXHAUST PIPE
3GD-14613-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
MUFFLER 1
5ND-E4711-00-00
|
$1,099.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, OUTLET
5ND-E4752-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
5ND-E4719-00-00
Superseded by 91380-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, MUFFLER 1
5ND-E4718-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND, SILENCER
5ND-E4788-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR, MUFFLER 2
5ND-E4728-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
9581P-06008-00
Superseded by 95817-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, MUFFLER
5ND-E4715-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
5ND-E4777-00-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
WASHER
5ND-E4759-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, MUFFLER
5ND-E4714-00-00
Superseded by 3YF-14714-00-00
|
$39.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE
95827-10040-00
Superseded by 95817-10040-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-106E0-00
Superseded by 90201-10669-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER, MUFFLER
5ND-E4737-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-10636-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
