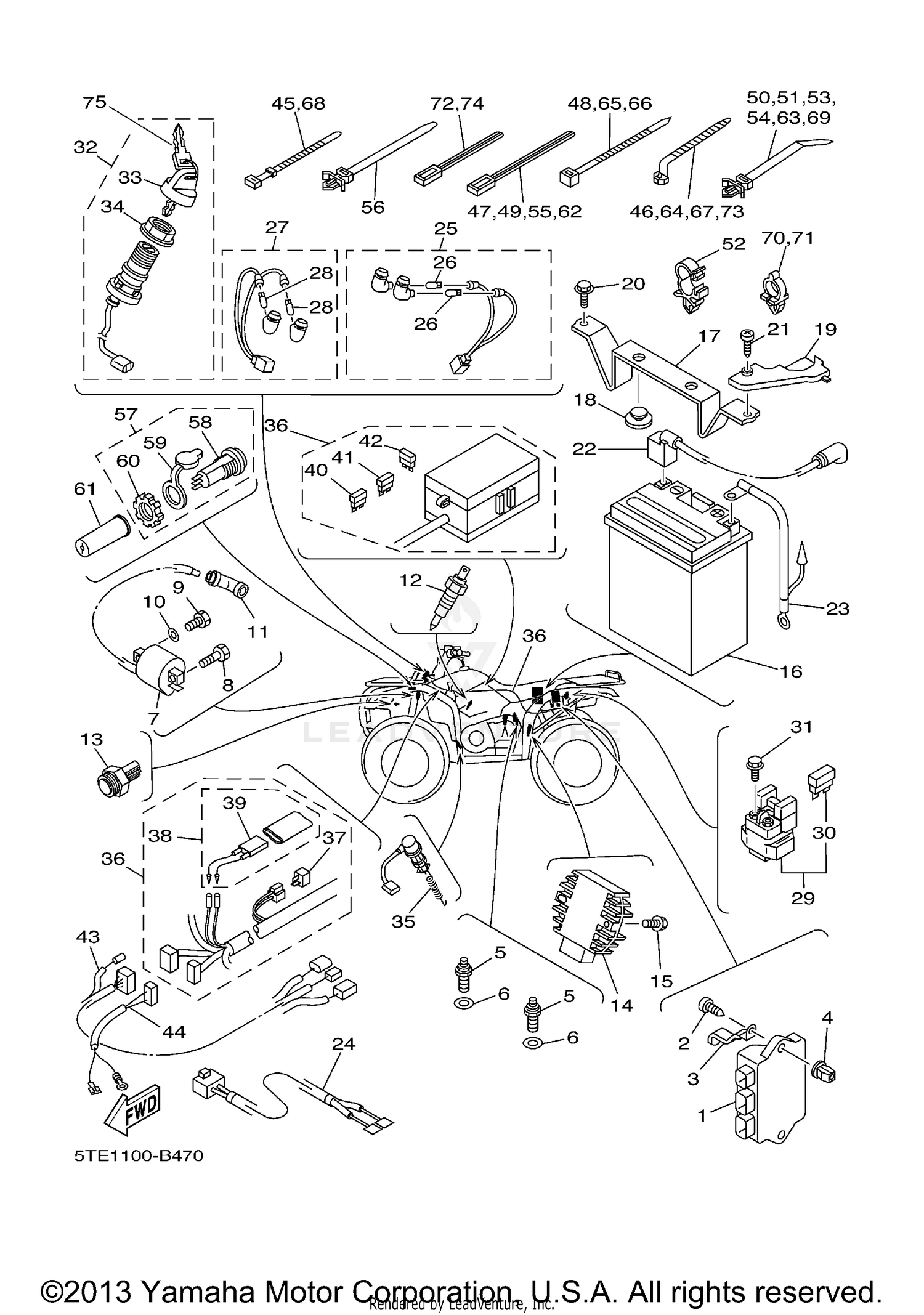

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
5TE-85540-00-00
|
$583.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TAPPING
97707-60420-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90462-06016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG
90338-08226-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
IGNITION COIL ASSY
3KJ-82310-10-00
Superseded by 3KJ-82310-14-00
|
$41.99 | ||
|
Unavailable |
|||
|
#8
BOLT
90109-06723-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
THERMO SWITCH ASSY
4BA-82560-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
THERMO SWITCH ASSY
5ND-82560-10-00
Superseded by 5ND-82560-11-00
|
$34.99 | ||
|
Unavailable |
|||
|
#14
RECTIFIER & REGULATOR ASSY
5GT-81960-00-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
YTX14AHBS YUASA BAT
BTY-YTX14-AH-BS
Superseded by YTX-14AHB-S0-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, BATTERY
5TE-H2128-00-00
Superseded by 5TE-H2128-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PAD, BATTERY
371-82121-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, LEAD WIRE
5ND-H2119-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
Unavailable |
|||
|
#21
SCREW, TAPPING
97707-60016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WIRE, PLUS LEAD
5TE-H2115-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WIRE, MINUS LEAD
5TE-H2116-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE, LEAD
5TE-82541-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#25
PILOT LIGHT ASSY
5TE-83530-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PILOT LIGHT ASSY
5GH-83530-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
STARTER RELAY ASSY (RC19-015)
4SV-81940-12-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
FUSE (30A-BL)
1AE-82151-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
9502P-06008-00
Superseded by 95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
MAIN SWITCH ASSY
5ND-82510-00-00
Superseded by 5ND-82510-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP, KEY
3HN-82579-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
STOP SWITCH ASSY
4KB-82530-10-00
Superseded by 4KB-82530-11-00
|
$56.99 | ||
|
Unavailable |
|||
|
#36
WIRE HARNESS ASSY
5TE-82590-00-00
|
$463.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
DIODE ASSY
3WP-81980-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCUIT BREAKER ASSY
5ND-82180-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
THERMO SWITCH ASSY
5ND-82560-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#42
FUSE (3A)
5JJ-82151-50-00
Superseded by 67F-82151-30-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
WIRE, SUB LEAD
5GH-82309-10-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
WIRE, SUB LEAD
5GH-82509-30-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-51800-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90464-31827-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-40825-00
|
$3.05 | ||
|
Unavailable |
|||
|
#50
CLAMP
90464-25800-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#52
CLAMP
90464-16006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#54
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#55
CLAMP
90464-40825-00
|
$3.05 | ||
|
Unavailable |
|||
|
#56
CLAMP
90464-38800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
TERMINAL ASSY
5FU-H1920-00-00
Superseded by 5FU-H1920-10-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
TERMINAL ASSY
5FU-H1925-00-00
Superseded by 5FU-H1920-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#59
TERMINAL ASSY
5FU-H1942-00-00
Superseded by 5FU-H1920-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#60
NUT
5FU-H191B-00-00
Superseded by 5FU-H191B-10-00
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#61
COVER, CONNECTER
5FU-H2599-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLAMP
90464-40825-00
|
$3.05 | ||
|
Unavailable |
|||
|
#63
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#64
CLAMP
90464-12830-00
|
$1.60 | ||
|
Unavailable |
|||
|
#65
CLAMP
90464-31827-00
|
$3.70 | ||
|
Unavailable |
|||
|
#66
CLAMP
90464-31827-00
|
$3.70 | ||
|
Unavailable |
|||
|
#67
CLAMP
90464-12830-00
|
$1.60 | ||
|
Unavailable |
|||
|
#68
CLAMP
90464-51800-00
|
$16.49 | ||
|
Unavailable |
|||
|
#69
CLAMP
90464-25800-00
|
$1.75 | ||
|
Unavailable |
|||
|
#70
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.60 | ||
|
Unavailable |
|||
|
#71
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.60 | ||
|
Unavailable |
|||
|
#72
CLAMP
90464-48800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#73
CLAMP
90464-12830-00
|
$1.60 | ||
|
Unavailable |
|||
|
#74
CLAMP
90464-48800-00
|
$4.90 | ||
|
Unavailable |
|||
|
#75
BLANK KEY (A-TYPE)
90890-56001-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#
BLANK KEY (B-TYPE)
90890-56002-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
