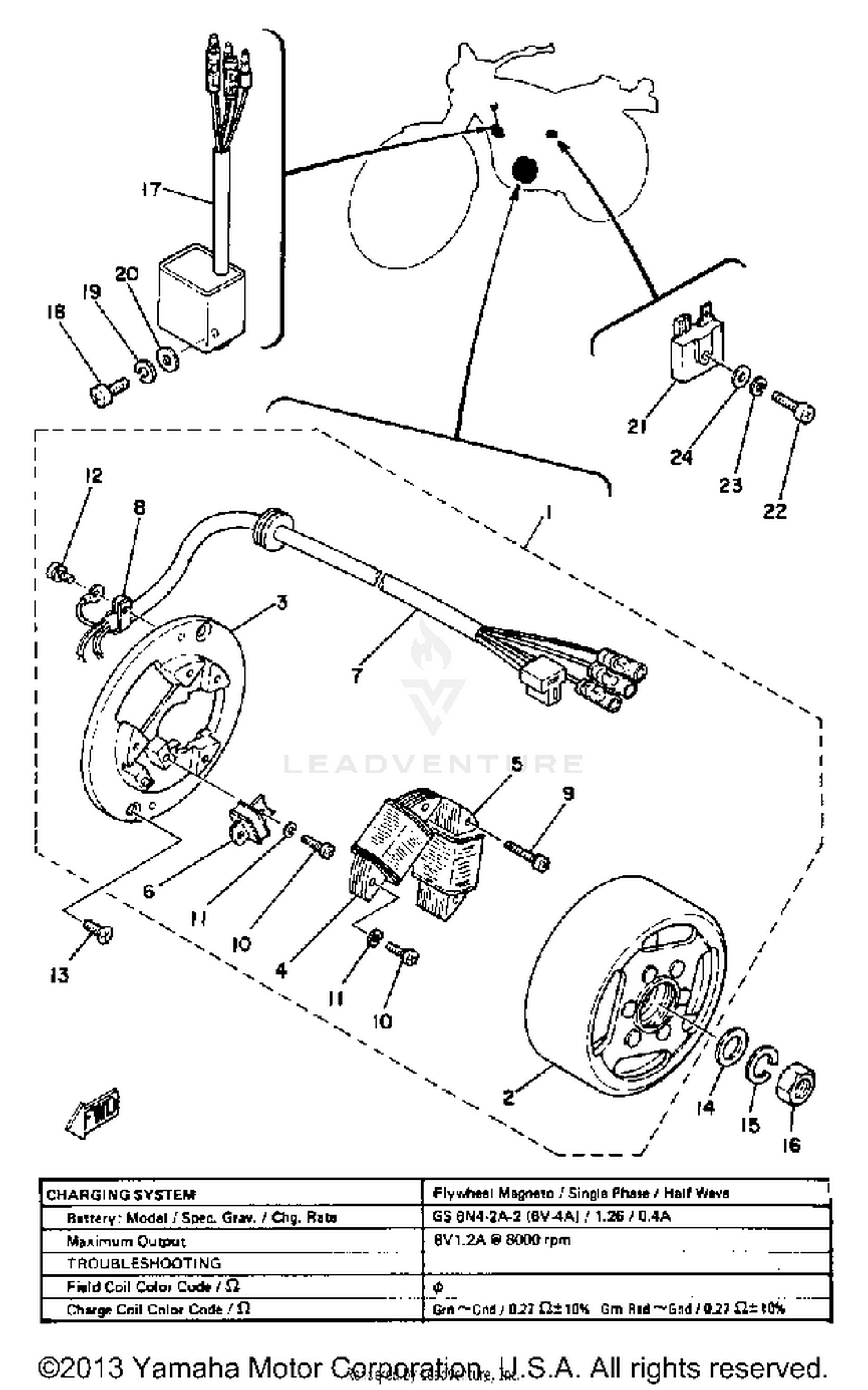

Generator Gt80g Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CDI MAGNETO ASSEMBLY
3J8-85500-21-00
|
$269.99 | ||
|
Unavailable |
|||
|
#2
ROTOR ASSEMBLY
3J8-85550-20-00
|
$108.99 | ||
|
Unavailable |
|||
|
#3
BASE, MAGNETO
3J8-85509-20-00
|
$34.64 | ||
|
Unavailable |
|||
|
#4
COIL SOURCE 2
3J8-85512-20-00
|
$189.99 | ||
|
Unavailable |
|||
|
#5
COIL, LIGHTING 1
3A3-85513-20-00
|
$98.59 | ||
|
Unavailable |
|||
|
#6
COIL, PULSER
3A3-85580-20-00
|
$134.99 | ||
|
Unavailable |
|||
|
#7
LEAD WIRE ASSEMBLY
3J8-85515-20-00
|
$31.56 | ||
|
Unavailable |
|||
|
#8
CLAMP
104-81328-20-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
97602-04125-00
Superseded by 98517-04025-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW, FLAT HEAD
98701-05016-00
Superseded by 98707-05016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-12535-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90170-12175-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CDI UNIT ASSEMBLY
3A3-85540-20-00
|
$247.75 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
RECTIFIER ASSY
353-81970-63-00
Superseded by 353-81970-M2-00
|
$21.99 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98580-05020-00
|
$1.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
