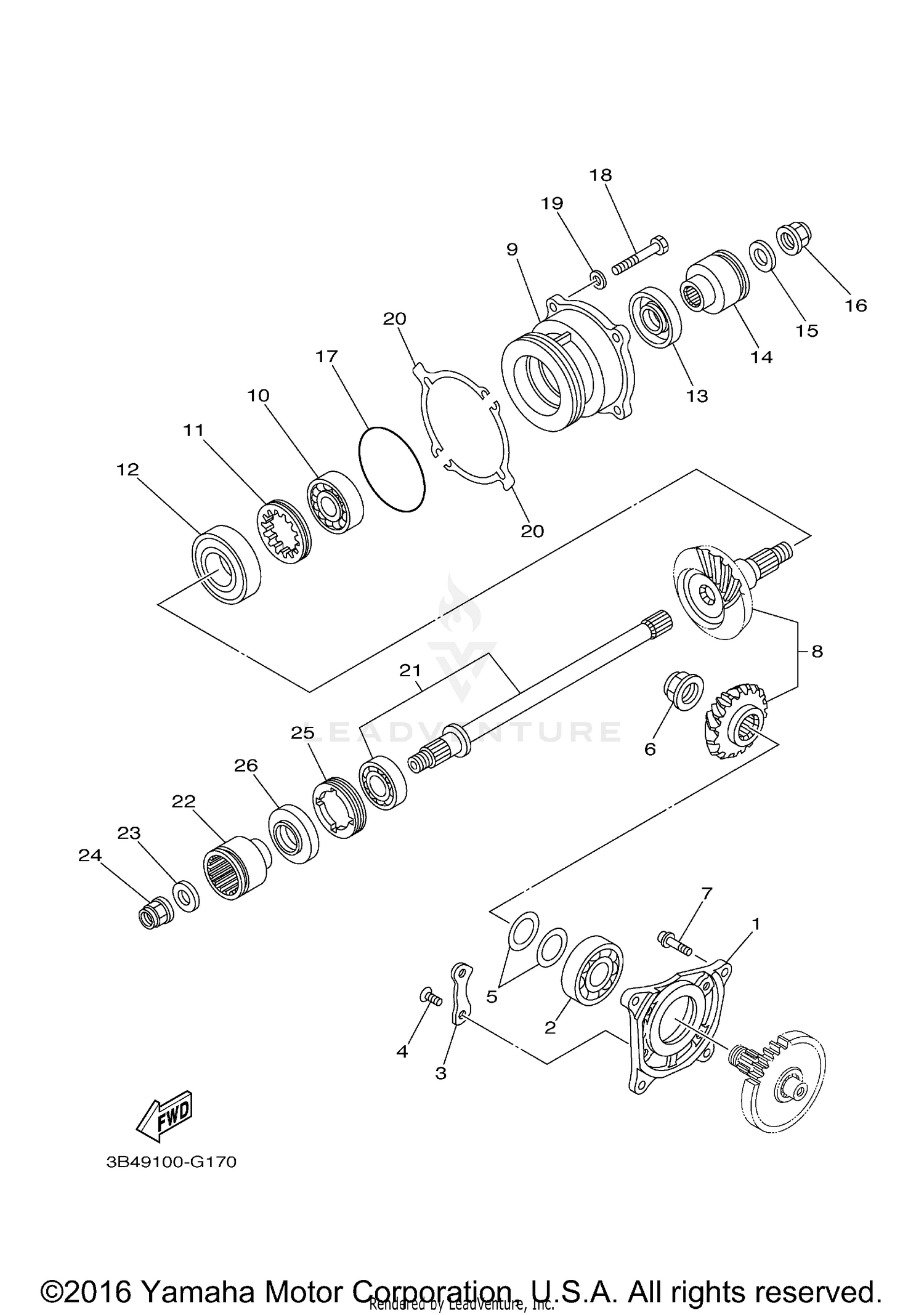

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, BEARING
3B4-17521-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-30537-00
Superseded by 93306-30560-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, BEARING COVER
11H-15383-02-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-08013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM, PINION (0.8T)
5KM-17531-90-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.5T)
5KM-17531-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.55T)
5KM-17531-60-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.6T)
5KM-17531-70-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (1.0T)
5KM-17531-B0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.9T)
5KM-17531-A0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.7T)
5KM-17531-80-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-22013-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-08091-00
Superseded by 90110-08092-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PINION SET
3B4-17530-01-00
|
$448.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOUSING, BEARING
3B4-17551-00-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-37206-00
Superseded by 93306-37204-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-60001-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-20654-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL SEAL
93102-30010-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COUPLING
3B4-17832-10-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-16021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
90179-16006-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-78544-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
97022-08030-00
Superseded by 97017-08030-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92902-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIM, PINION (0.1T)
3B4-17531-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.15T)
3B4-17531-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.2T)
3B4-17531-20-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.6T)
3B4-17531-60-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.3T)
3B4-17531-30-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.4T)
3B4-17531-40-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, PINION (0.5T)
3B4-17531-50-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
MIDDLE DRIVEN SHAFT ASSY
3B4-1755A-00-00
|
$272.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COUPLING
3B4-17832-10-00
|
$98.99 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-16021-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
NUT
90179-16006-00
|
$19.49 | ||
|
Unavailable |
|||
|
#25
NUT
90179-55660-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
OIL SEAL
93102-30010-00
|
$18.49 | ||
|
Unavailable |
|||
