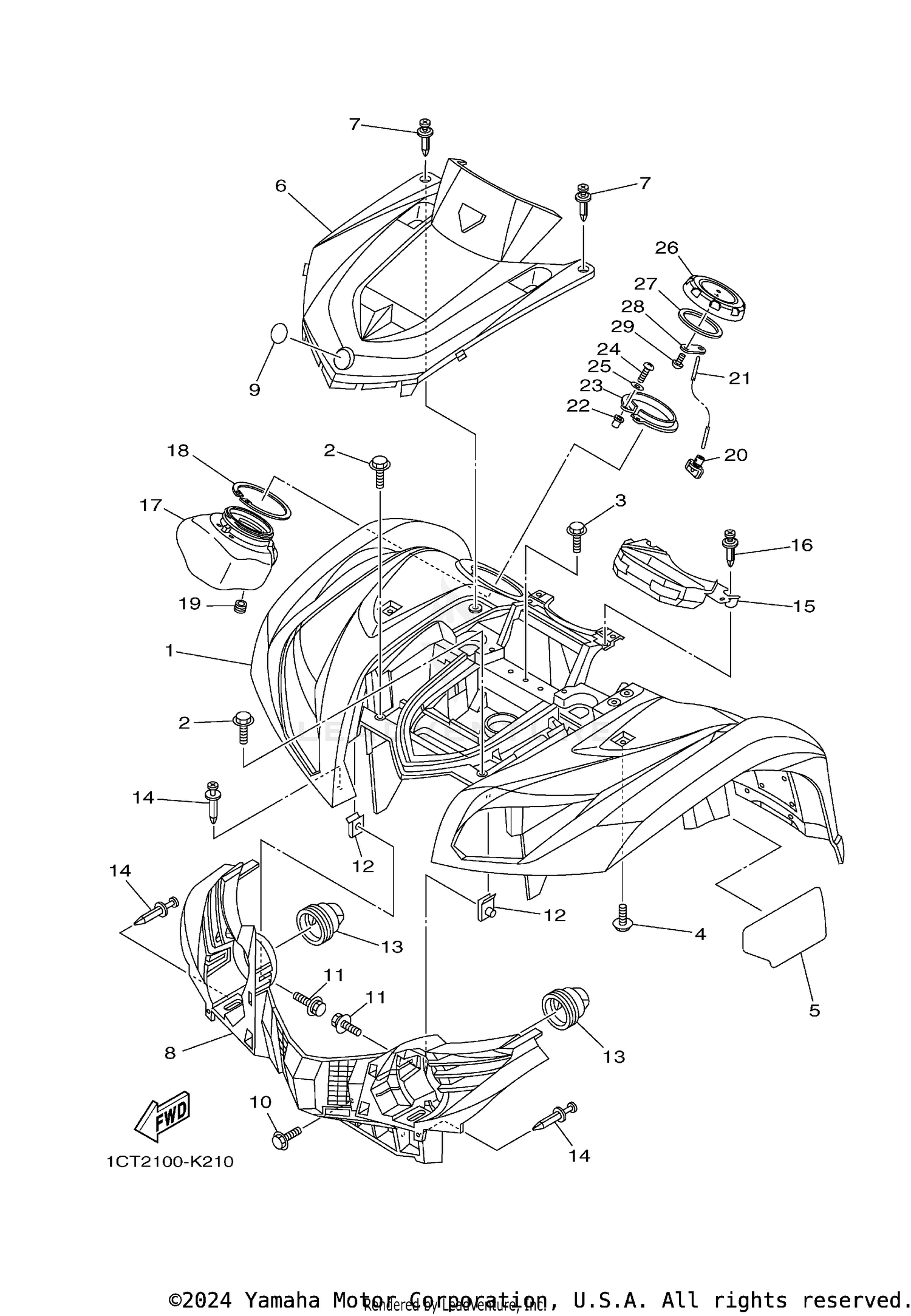

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
37S-F1500-70-00
|
$480.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-06157-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06157-00
|
$9.49 | ||
|
Unavailable |
|||
|
#4
BOLT, WITH WASHER
90119-06157-00
|
$9.49 | ||
|
Unavailable |
|||
|
#5
SEAL 1
5ND-F1575-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL,FRONT
37S-F3391-00-00
Superseded by 37S-F3391-C0-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIVET
90269-06800-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
GRILLE, FRONT
37S-F8309-00-00
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUNING FORK MARK
5FU-F175B-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06157-00
|
$9.49 | ||
|
Unavailable |
|||
|
#11
BOLT, WITH WASHER
90119-06157-00
|
$9.49 | ||
|
Unavailable |
|||
|
#12
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
5UH-F8349-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RIVET
90269-06800-00
|
$1.70 | ||
|
Unavailable |
|||
|
#15
PANEL, CONSOLE 1
5ND-F837L-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET
90269-06800-00
|
$1.70 | ||
|
Unavailable |
|||
|
#17
BOX 1
1HP-F838K-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, BOX 1
3B4-2838M-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-13004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG, DRAIN
3B4-215A1-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
STOPPER, OPEN
3B4-2845L-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOLDER
3B4-2839N-00-00
Superseded by 3B4-2839N-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, PAN HEAD
98502-05016-00
Superseded by 98507-05016-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
CAP
1HP-F151B-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL
3B4-28307-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PLATE 2
3B4-28487-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING
90164-05800-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
