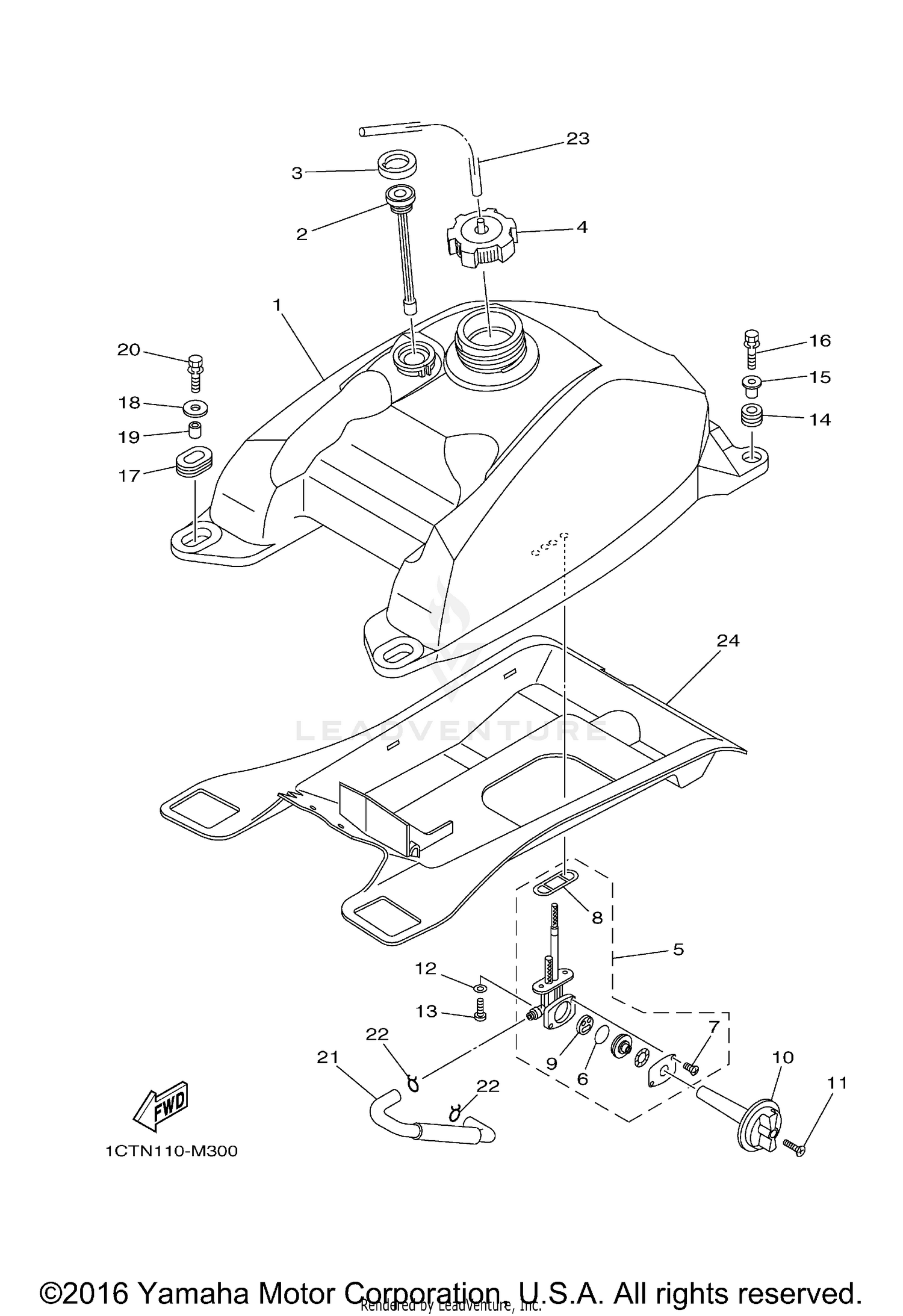

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
5ND-F4110-11-00
|
$609.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUEL METER ASSY
5GH-24260-11-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, FUEL METER
4SH-24261-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP ASSY
5KM-24610-00-00
|
$66.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FUEL COCK ASSY 1
5GH-24500-10-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, COCK
3AJ-24534-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-03014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
4X8-24512-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE PACKING
3AC-24523-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, COCK
1NS-F4524-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, FLAT HEAD
90151-04006-00
Superseded by 98702-04018-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SCREW
90149-06108-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-18290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-066J1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06883-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-06090-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-07598-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, WITH WASHER
90119-06883-00
|
$1.55 | ||
|
Unavailable |
|||
|
#21
PIPE, FUEL 1
3C2-24311-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
HOSE (L400)
90445-088C5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, PLATE 1
5ND-F414H-10-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
