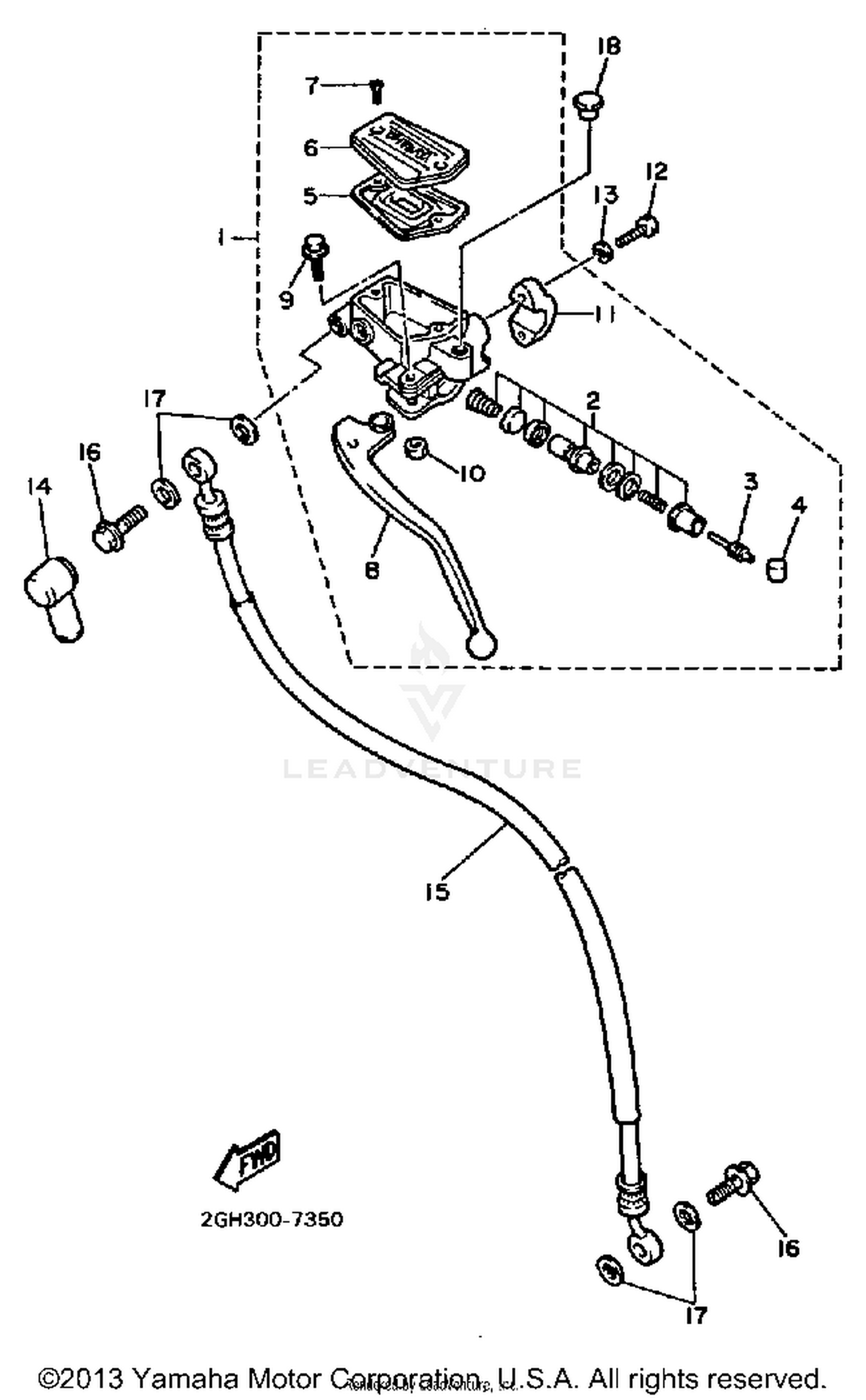

Front Master Cylinder 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
3BV-26450-10-00
Superseded by 2KW-W2645-00-00
|
$306.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER (CLUTCH)
2KW-W0099-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROD, PUSH
26H-26464-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH
3GM-26455-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
1AE-26454-00-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CAP, RESERVOIR
1FK-26452-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, FLAT HEAD
98706-04012-00
Superseded by 98707-04012-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
LEVER L
1AE-83912-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-067A0-00
|
$3.30 | ||
|
Unavailable |
|||
|
#10
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
HOLDER
1AE-26467-00-00
Superseded by 1AE-26467-01-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
BOOT, MASTER CYLINDER
4L0-25862-00-00
Superseded by 4L0-25862-01-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
HOSE, CLUTCH
2GH-26470-01-00
Superseded by 3GM-26470-A1-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, UNION
90401-10096-00
Superseded by 90401-10159-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG
90338-09012-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
