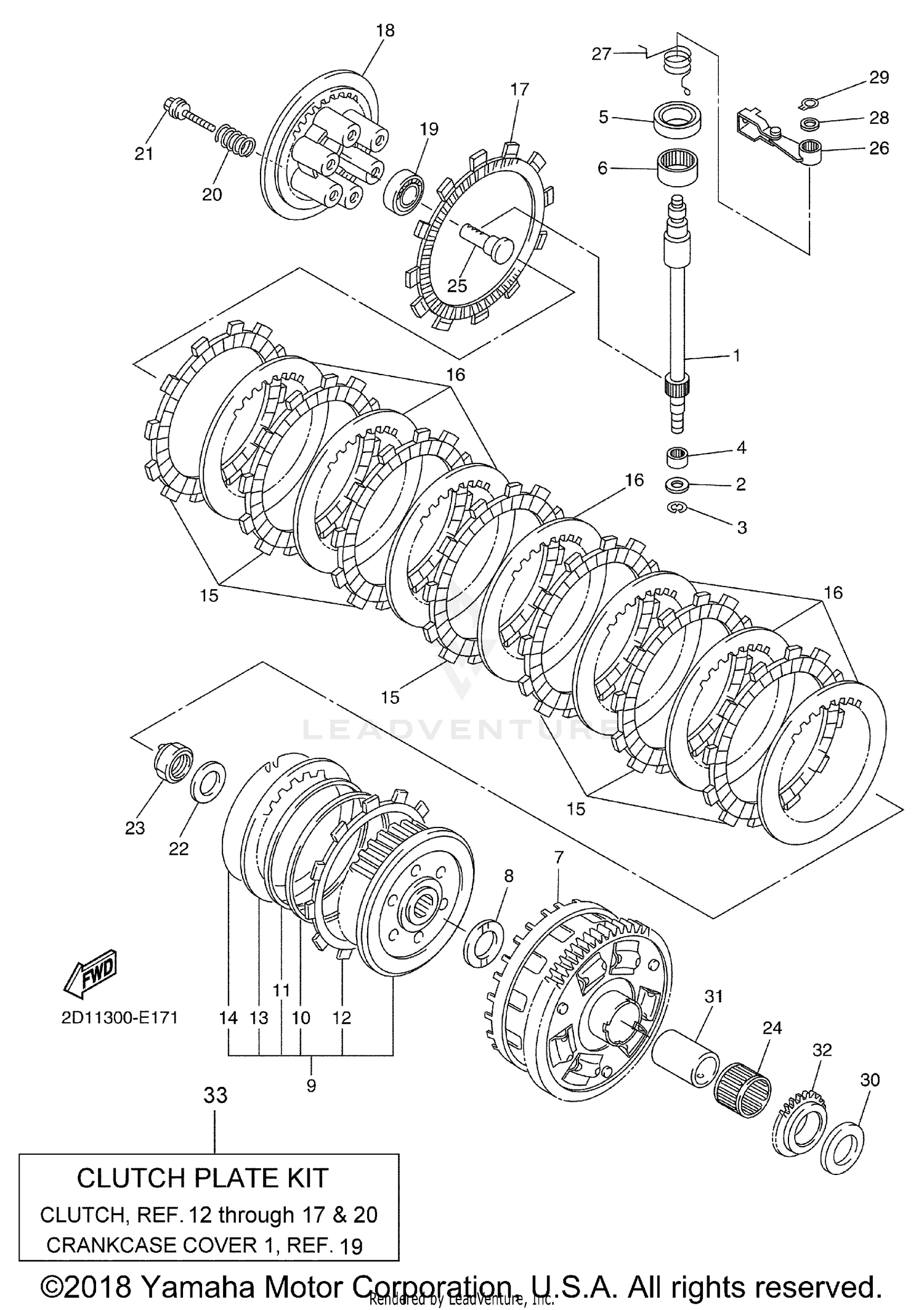

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, PUSH LEVER
2D1-16382-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
CIRCLIP
99001-07600-00
Superseded by 99080-07600-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
BEARING
93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING
93315-31502-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PRIMARY DRIVEN GEAR COMP.
5VY-16150-00-00
|
$764.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, THRUST 1
5VY-16154-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLUTCH BOSS ASSY
2D1-16370-00-00
Superseded by 2D1-16370-01-00
|
$246.99 | ||
|
Unavailable |
|||
|
#10
PLATE, SEAT
5VY-16384-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH BOSS
5VY-16383-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FRICTION 2
5VY-16331-00-00
|
$28.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#14
RING, CLUTCH BOSS
4X7-16385-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLATE, FRICTION
5VY-16321-00-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#17
PLATE, FRICTION 2
5VY-16330-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, PRESSURE 1
5VY-16351-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-00304-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SPRING, COMPRESSION
90501-230A0-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, WITH WASHER
90119-06257-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, CONICAL SPRING
90208-20001-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90179-20007-00
Superseded by 90179-20022-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93310-232R9-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROD, PUSH 1
4XV-16356-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PUSH LEVER ASSY
5VY-16340-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING, TORSION
90508-18051-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-10029-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PLATE, THRUST 2
5VY-16164-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPACER 1
5VY-16181-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPROCKET, DRIVE
5VY-13354-00-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLUTCH PLATE KIT
1CA-W001G-00-00
|
$213.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
