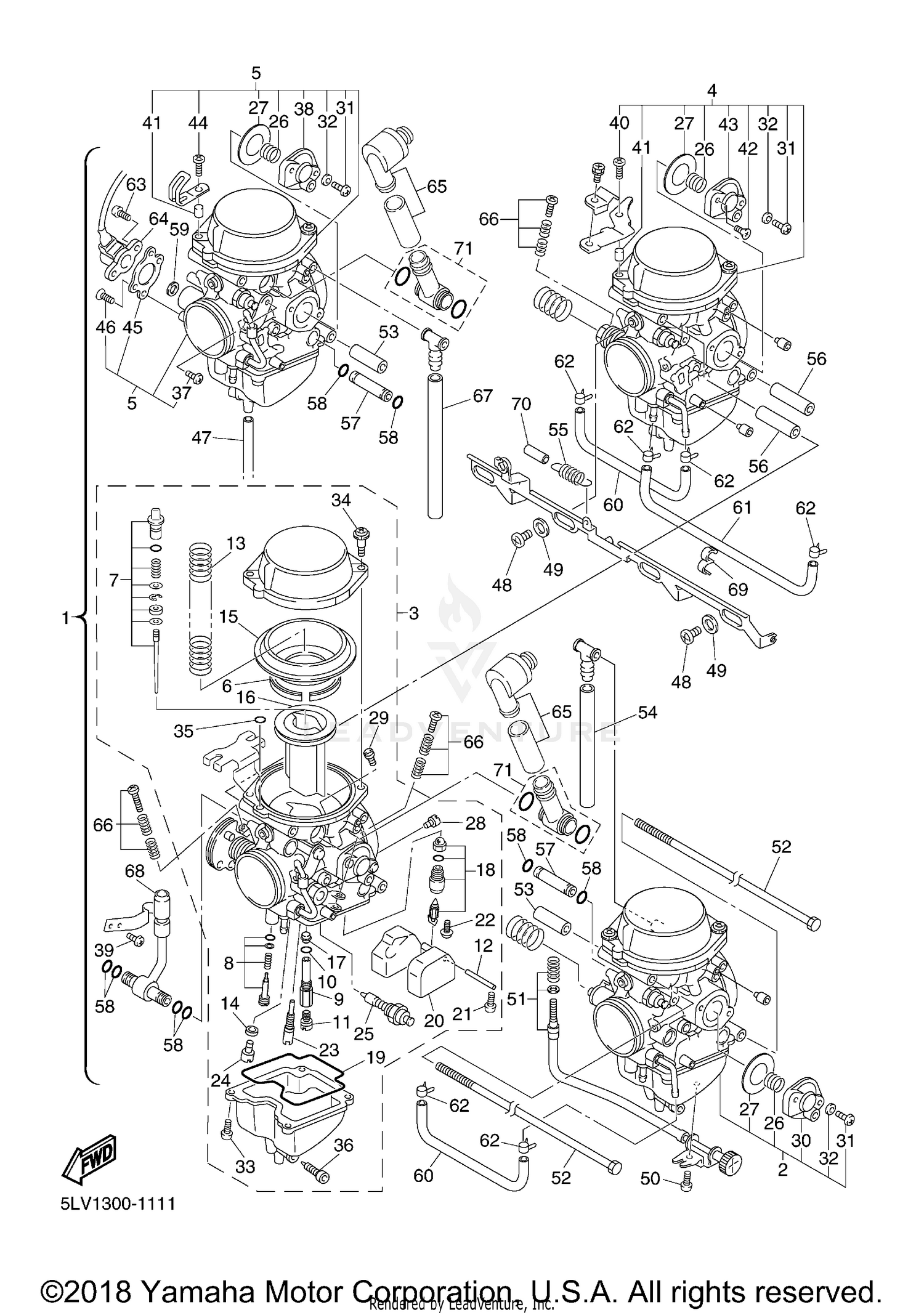

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
5LV-14900-40-00
|
$1,632.99 | ||
|
Unavailable |
|||
|
#1
CARBURETOR ASSY
5LV-14900-30-00
|
$2,112.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY 1
5LV-14901-40-00
|
$722.99 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY 1
5LV-14901-30-00
|
$718.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY 2
5LV-14902-40-00
|
$769.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY 2
5LV-14902-30-00
|
$725.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CARBURETOR ASSY 3
5LV-14903-40-00
|
$689.99 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY 3
5LV-14903-30-00
|
$622.99 | ||
|
Unavailable |
|||
|
#5
CARBURETOR ASSY 4
5LV-14904-40-00
|
$761.99 | ||
|
Unavailable |
|||
|
#5
CARBURETOR ASSY 4
5LV-14904-30-00
|
$653.99 | ||
|
Unavailable |
|||
|
#6
O-RING
5EL-14561-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE SET
5LV-1490J-20-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NEEDLE SET
5LV-1490J-30-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PILOT SCREW SET
5MP-14105-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER
5LV-14261-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
583-14561-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
JET, MAIN (#130)
3G2-14231-26-A0
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET, MAIN (#132.5)
3G2-1423A-77-A1
Superseded by 3G2-1423A-77-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, FLOAT
127-14186-00-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, DIAPHRAGM
5LV-14933-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING
5EL-14918-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
DIAPHRAGM
5EL-24411-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, THROTTLE 1
5LV-14112-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NOZZLE, MAIN
5DM-14141-40-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NEEDLE VALVE SET
4KM-14107-15-00
|
$44.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING
5DM-14561-00-00
|
$17.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
FLOAT
5DM-14985-00-00
|
$80.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98507-04008-00
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
1FN-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET, PILOT (# 15)
4KM-14142-15-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
JET, MAIN (# 42.5)
3G2-1423A-59-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
STARTER SET
5DM-1410A-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING
4XY-14589-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DIAPHRAGM ASSY
5AP-14940-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, MAIN (# 85)
1HX-14231-17-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, MAIN (#125)
1HX-14231-25-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, CARBURETOR
5AP-14280-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SCREW, PAN HEAD
98580-04014-00
|
$3.30 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING
92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, SPRING
92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
98582-04010-00
Superseded by 98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
4KM-14216-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
SCREW
4KM-14216-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#35
O-RING
354-14147-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUG, DRAIN
4KP-14191-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW, PAN HEAD
98502-05008-00
Superseded by 98507-05008-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#38
COVER
5EL-14480-00-00
|
$47.30 | ||
|
Unavailable |
|||
|
#39
SCREW, PAN HEAD
98580-03006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW, PAN HEAD
98582-05016-00
Superseded by 90157-05M19-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#41
RING
4KM-14194-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, FLAT HEAD
98707-04014-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
COVER, CARBURETOR
5HK-14280-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#44
SCREW, PAN HEAD WITH WASHER
98507-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET
5EA-14867-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW, FLAT HEAD
98707-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE
3JE-14197-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
SCREW
5DM-14565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
PACKING
4NK-14327-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW, PAN HEAD
98582-05008-00
Superseded by 98580-05008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
THROTTLE SCREW SET
5EA-14103-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
SCREW
4SV-14592-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#53
PIPE
5EA-14148-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
HOSE
4SV-14987-30-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
SPRING
4SV-14935-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIPE
5EA-14996-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
PIPE
4SV-14996-40-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
O-RING
36Y-14147-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
WASHER
4KG-14285-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#60
HOSE
5DM-14987-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#61
PIPE
5EL-14396-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLIP
5DM-14919-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#63
SCREW
4WM-14565-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
THROTTLE SENSOR ASSY
4XY-85885-00-00
Superseded by 4XY-85885-01-00
|
$341.99 | ||
|
Unavailable |
|||
|
#65
PIPE
4SV-14197-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
STOP SCREW SET
4KM-1490K-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
HOSE
4SV-14987-20-00
|
$19.99 | ||
|
Unavailable |
|||
|
#68
HOSE
5EA-14987-10-00
|
$3.50 | ||
|
Unavailable |
|||
|
#69
CLIP
5LV-14919-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#70
SEAT, SPRING
5DM-14936-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#71
NIPPLE, 1
5LV-1410F-00-00
|
$9.49 | ||
|
Unavailable |
|||
