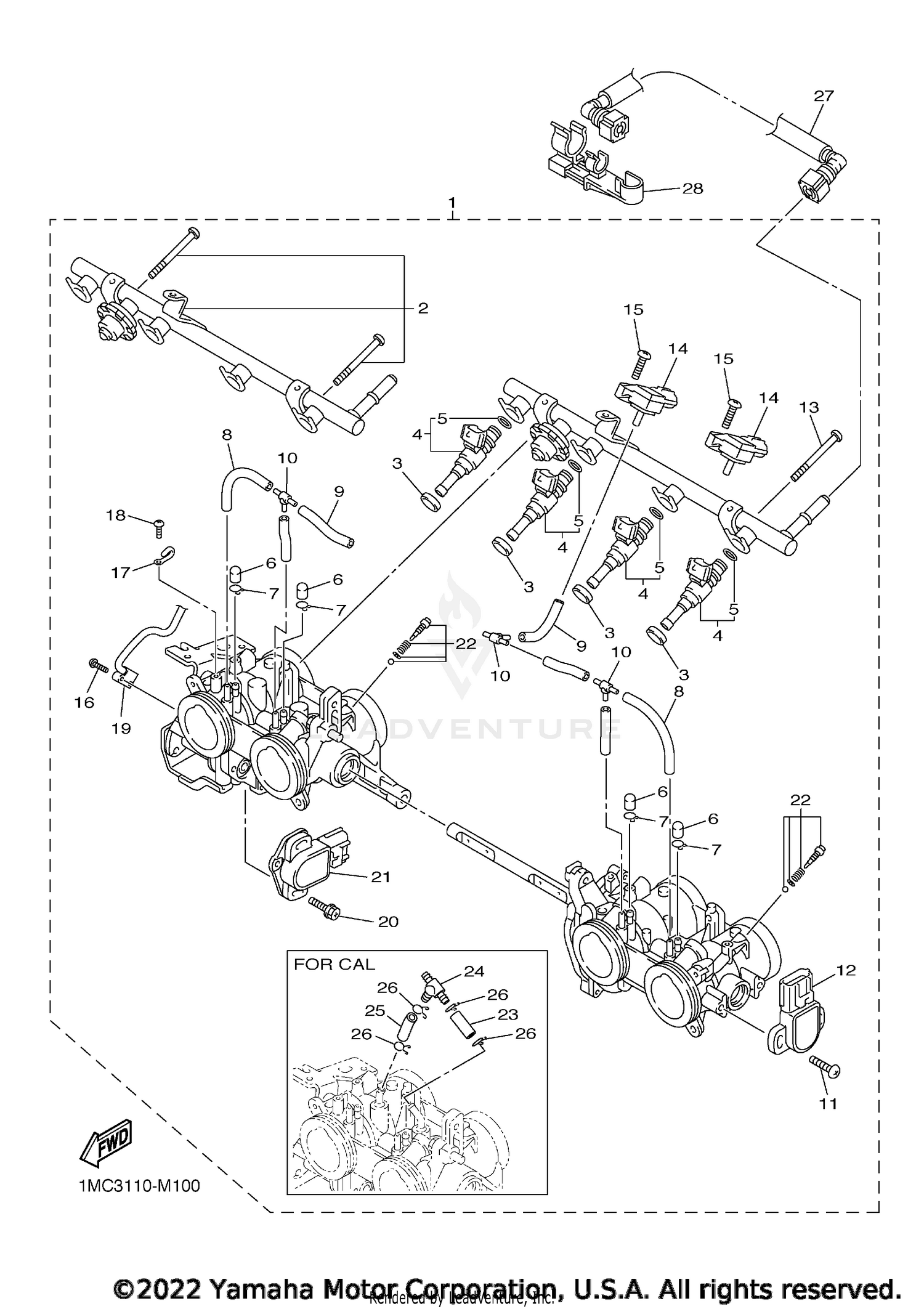

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
1MC-13750-00-00
Superseded by 1MC-13750-02-00
|
$1,727.99 | ||
|
Unavailable |
|||
|
#1
THROTTLE BODY ASSY
1MC-13750-10-00
|
$1,745.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, INLET
1MC-1393A-00-00
|
$442.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, INJECTOR
8FP-13556-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
INJECTOR
8GC-13761-00-00
|
$278.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
8GC-13769-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
895-14169-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLIP, PIPE
8A7-14139-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, VACUUM SENSING 3
6BH-13532-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, VACUUM SENSING 4
6P2-13533-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE, JOINT 1
68V-24376-00-00
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
8CC-14216-10-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
. .THROTTLE SENSOR ASSY
2S3-85885-00-00
Superseded by 2S3-85885-01-00
|
$182.99 | ||
|
Unavailable |
|||
|
#13
SCREW,PAN
98502-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, PRESSURE
2C0-82380-00-00
Superseded by 1WS-82380-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
2C0-14216-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
1MC-14216-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, WIRE HARNESS 1
1MC-21335-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
97602-03107-00
Superseded by 6H4-14567-09-00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH ASSY
1MC-81860-00-00
Superseded by 1MC-81860-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
5FL-14216-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
. .ACCELERATOR SENSOR ASSY.
1MC-85884-00-00
Superseded by 1MC-85884-01-00
|
$178.99 | ||
|
Unavailable |
|||
|
#22
PILOT SCREW SET
2C0-14105-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE
14B-14465-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WAY 3
90413-06031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE
14B-14466-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIPE, FUEL 1
5JW-13971-10-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-16005-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
