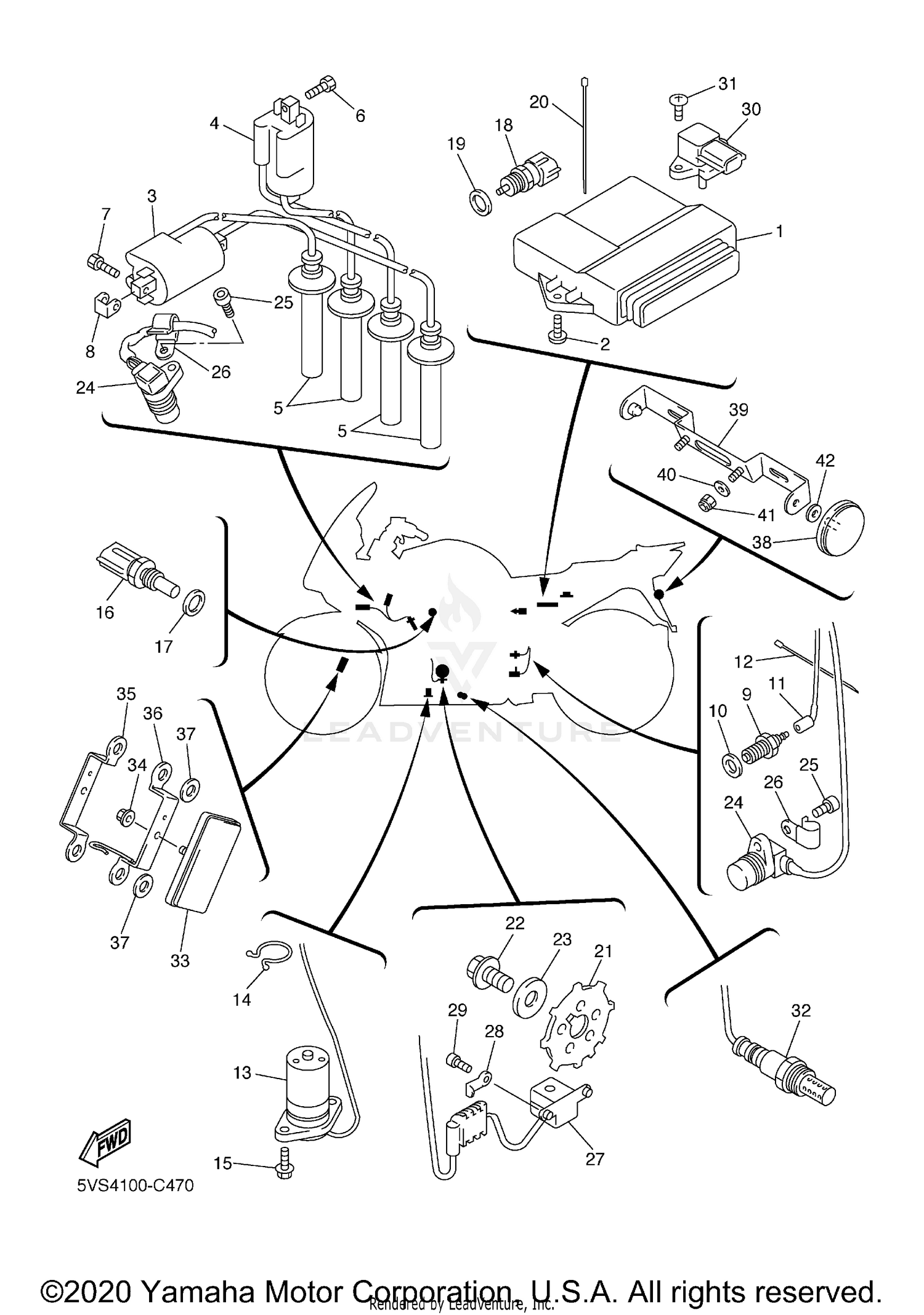

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNIT ASSY
5JW-8591A-31-00
Superseded by 5JW-8591A-32-00
|
$872.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TAPPING
97707-60020-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
5JW-82310-00-00
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
IGNITION COIL ASSY
5JW-82320-00-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
5JW-82370-00-00
|
$161.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BOLT
97080-06020-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
DAMPER, IGNITION COIL
3LN-82317-00-00
|
$3.00 | ||
|
Unavailable |
|||
|
#9
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WIRE, LEAD
5JW-82541-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#12
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
OIL LEVEL GAUGE ASSY
5JW-85720-00-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-14058-00
Superseded by 90464-16039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
THERMOSENSOR ASSY
8CC-85790-01-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-12790-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
THERMOSENSOR ASSY (IN TEMP SENS
5FL-85790-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
90430-12202-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
90465-10098-00
|
$2.70 | ||
|
Unavailable |
|||
|
#21
ROTOR
5JW-81673-00-00
Superseded by 5JW-81673-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-10217-00
Superseded by 90105-10153-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-107K6-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
SENSOR, SPEED
5FL-83755-00-00
Superseded by 5FL-83755-03-00
|
$157.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT (4MY)
90110-06124-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90465-08028-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PICK-UP ASSY
5JW-81670-00-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90465-08033-00
|
$7.99 | ||
|
Unavailable |
|||
|
#29
BOLT
90110-05007-00
Superseded by 91317-05012-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
SENSOR, PRESSURE
5JW-82380-00-00
|
$385.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SENSOR
5JW-8592A-00-00
|
$344.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, REFLECTOR 2
5BN-85122-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, REFLECTOR 2
5VS-85122-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
90201-08759-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
REFLECTOR, REAR 1
449-85131-02-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET, LICENSE
5JW-84751-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-05036-00
Superseded by 90201-061A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
