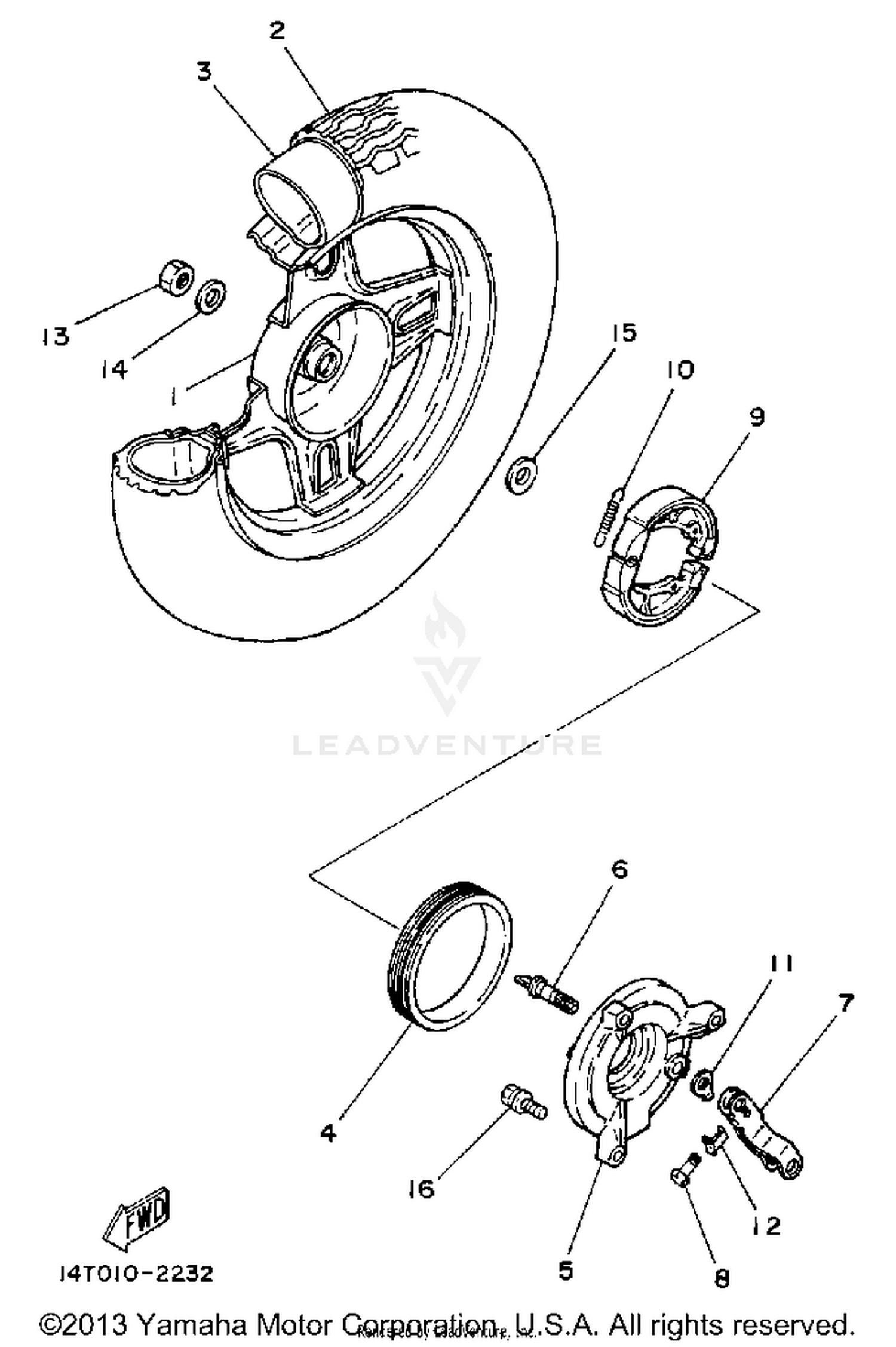

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL COMP.
14T-25390-01-35
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
275-10 IRC 4PR (94127-103M0)
94127-101K4-00
|
$26.99 | ||
|
Unavailable |
|||
|
#3
TUBE (2.50/2.75-10)
94227-10219-00
Superseded by 94225-10270-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING 2
27V-25336-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#5
PLATE, BRAKE SHOE
27V-25321-00-00
|
$77.99 | ||
|
Unavailable |
|||
|
#6
CAMSHAFT
4K5-25351-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#7
LEVER, CAMSHAFT
2T4-25355-01-00
|
$8.99 | ||
|
Unavailable |
|||
|
#8
BOLT
90101-05396-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BRAKE SHOE KIT
4K5-W2535-00-00
Superseded by 3EP-W253E-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-14081-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, INDICATOR
14T-2533A-00-00
|
$4.75 | ||
|
Unavailable |
|||
|
#12
WASHER
2E9-25412-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, SELF-LOCKING
90185-14081-00
Superseded by 90185-14150-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-14740-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-17255-00
Superseded by 90201-177G4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-08120-00
Superseded by 97527-08525-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
