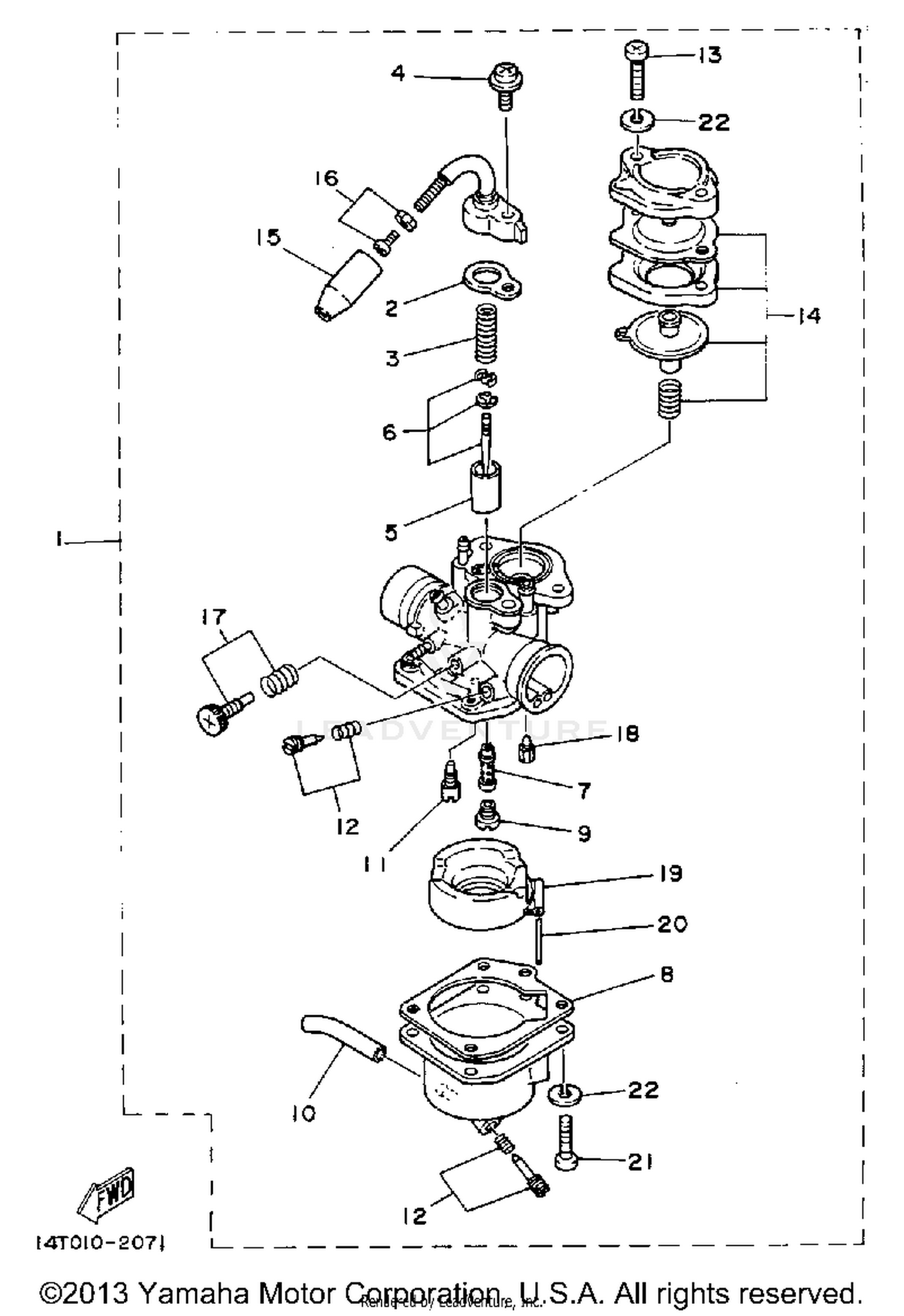

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1 (14T-1430
14T-14301-02-00
|
$362.99 | ||
|
Unavailable |
|||
|
#2
GASKET
2T4-14126-01-00
Superseded by 2T4-14126-02-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, THROTTLE VALVE
2T4-14331-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
5J3-24444-00-00
Superseded by 90157-05M19-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, THROTTLE 1
14T-14312-30-00
|
$33.99 | ||
|
Unavailable |
|||
|
#6
NEEDLE SET
14T-1490J-01-00
|
$10.70 | ||
|
Unavailable |
|||
|
#7
NOZZLE, MAIN
14T-14341-01-00
|
$18.49 | ||
|
Unavailable |
|||
|
#8
GASKET, FLOAT CHAMBER
14T-14384-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
JET, MAIN #74
14T-14343-37-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE
36F-14396-00-00
|
$7.55 | ||
|
Unavailable |
|||
|
#11
JET, PILOT #40
14T-14353-20-00
|
$23.99 | ||
|
Unavailable |
|||
|
#12
SCREW, AIR ADJUSTING
14T-14104-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
PLUNGER SET
14T-1490N-00-00
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
14T-14169-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CBLE AJST SCRW SET
14T-14106-00-00
|
$3.47 | ||
|
Unavailable |
|||
|
#17
THROTTLE SCREW SETSET
14T-14103-01-00
|
$21.99 | ||
|
Unavailable |
|||
|
#18
VALUE, NEEDLE
14T-14392-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
FLOAT
14T-14385-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#20
PIN, FLOAT
14T-14386-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98580-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
