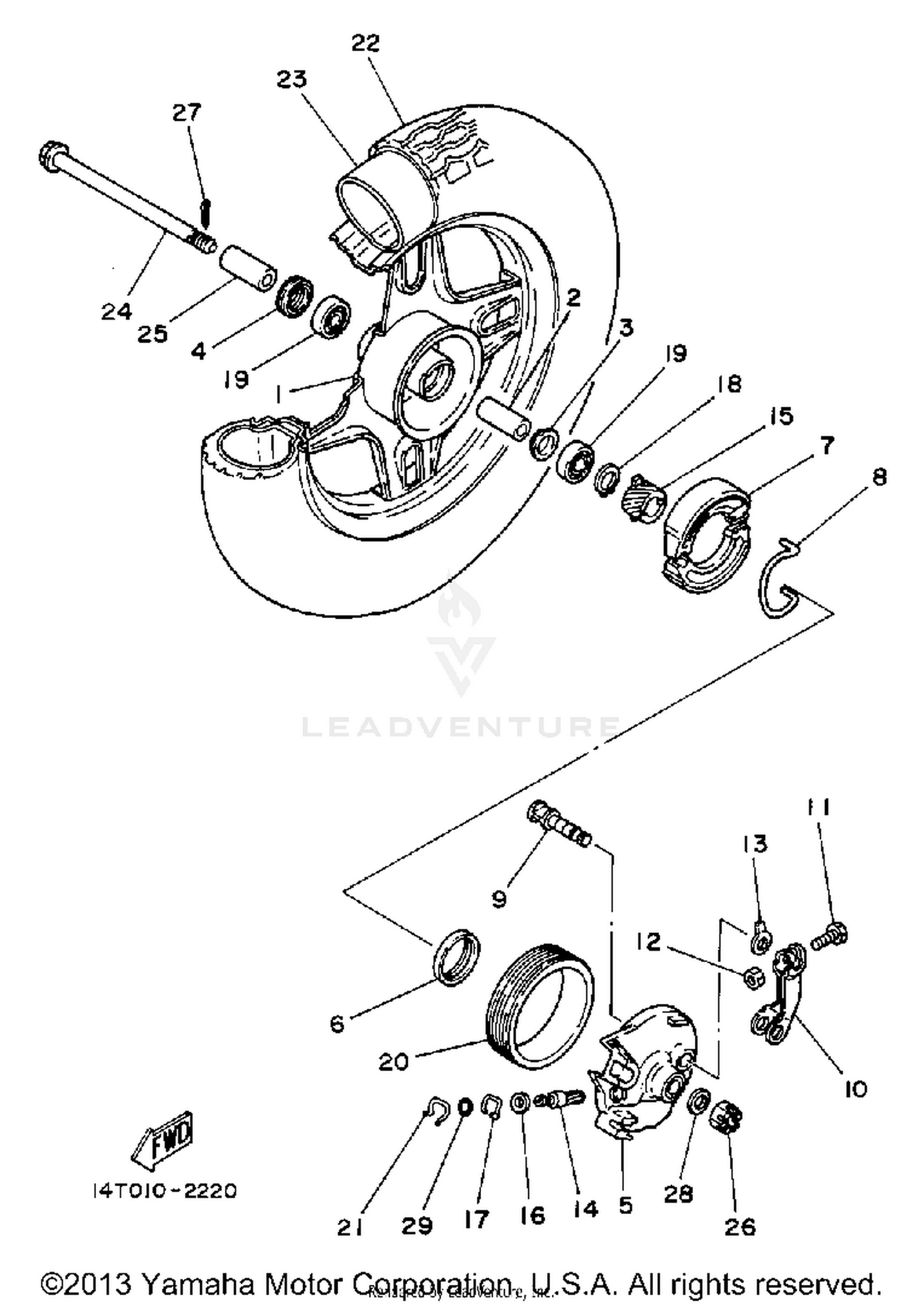

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, FRONT (14T-25180-00-35)
14T-25180-01-35
|
$130.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-10103-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER 2
2E9-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93106-17015-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, BRAKE SHOE
14T-25121-01-35
|
$31.28 | ||
|
Unavailable |
|||
|
#6
OIL SEAL
93109-34057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKESHOE SET-2PCS
2E9-W2535-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
SPRING, RETURN
2E9-25133-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAMSHAFT
25K-25151-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#10
LEVER, CAMSHAFT 1
2T4-25155-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
97021-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT
95380-05600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, INDICATOR
3L8-2513A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, METER
14T-25138-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, DRIVE
14T-25135-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-064L6-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, STOP
2T4-25137-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
99009-16400-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-20005-00
Superseded by 93306-20009-00
|
$48.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RING 1
14T-25185-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#21
RING, STOP
2E9-25137-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
275-10 IRC 4PR (94127-103M0)
94127-101K4-00
|
$26.99 | ||
|
Unavailable |
|||
|
#23
TUBE (2.50/2.75-10)
94227-10219-00
Superseded by 94225-10270-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE,WHEEL
4N0-25181-00-00
Superseded by 99999-03089-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-10728-00
|
$5.00 | ||
|
Unavailable |
|||
|
#26
NUT, CASTLE
90171-10004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-10131-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-10096-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
