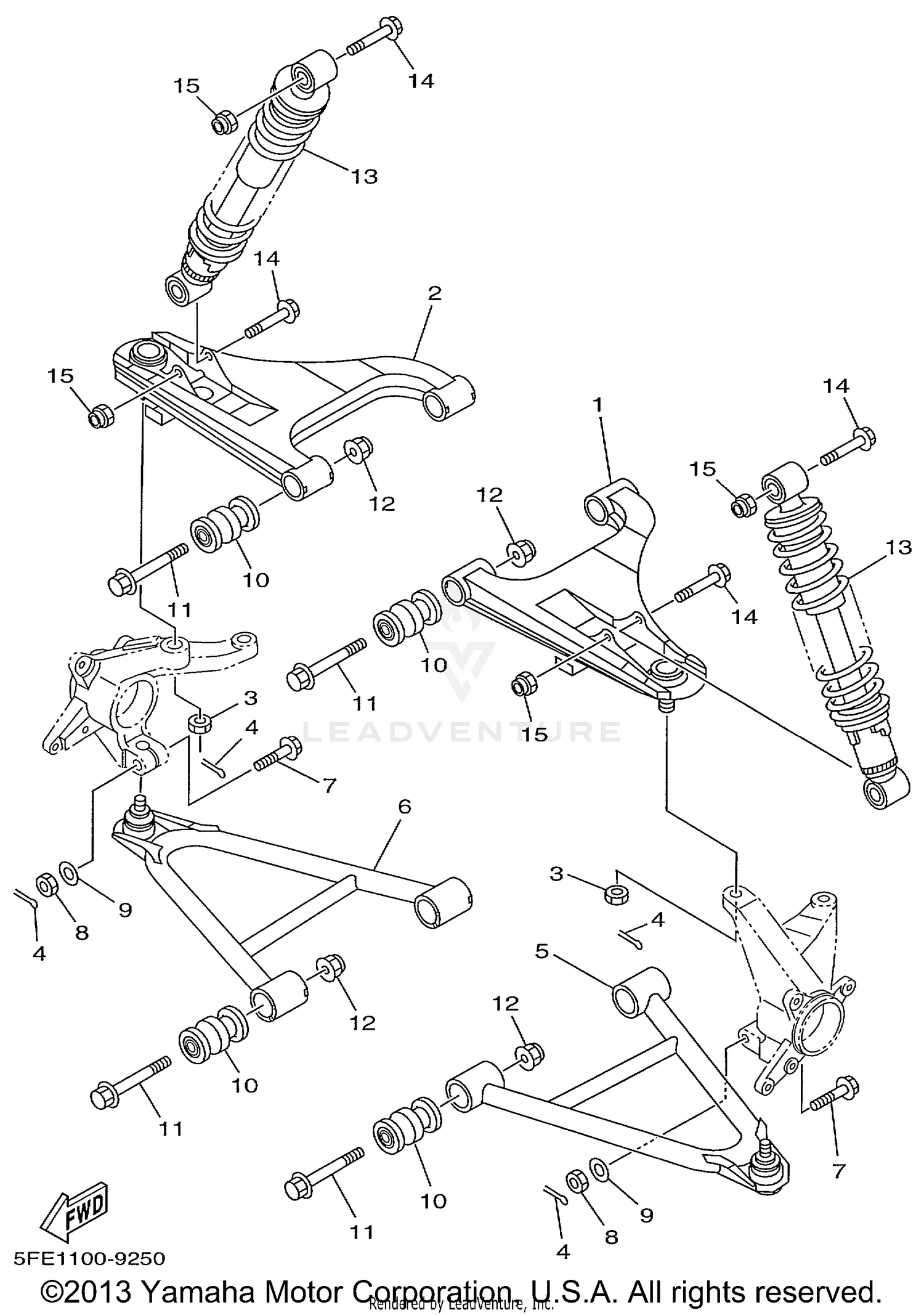

Front Suspension Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT UPPER ARM COMP. (LEFT)
4WU-23540-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRONT UPPER ARM COMP. (RIGHT)
4WU-23550-00-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, CASTLE
90171-10046-00
Superseded by 90171-10001-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PIN, COTTER
91401-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
FRONT LOWER ARM (LEF
5FE-23570-00-00
Superseded by 5FE-23570-01-00
|
$211.99 | ||
|
Unavailable |
|||
|
#6
FRONT LOWER ARM (RIG
5FE-23580-00-00
Superseded by 5FE-23580-01-00
|
$211.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
90105-10549-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
95337-10600-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-10430-00
Superseded by 90201-100F7-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUSH
2HR-23526-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-10253-00
Superseded by 90105-10788-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SELF-LOCKING
90185-10060-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK ABSORBER ASSEMBLY
5FE-23350-00-33
|
$244.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-10388-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-10060-00
|
$8.49 | ||
|
Unavailable |
|||
