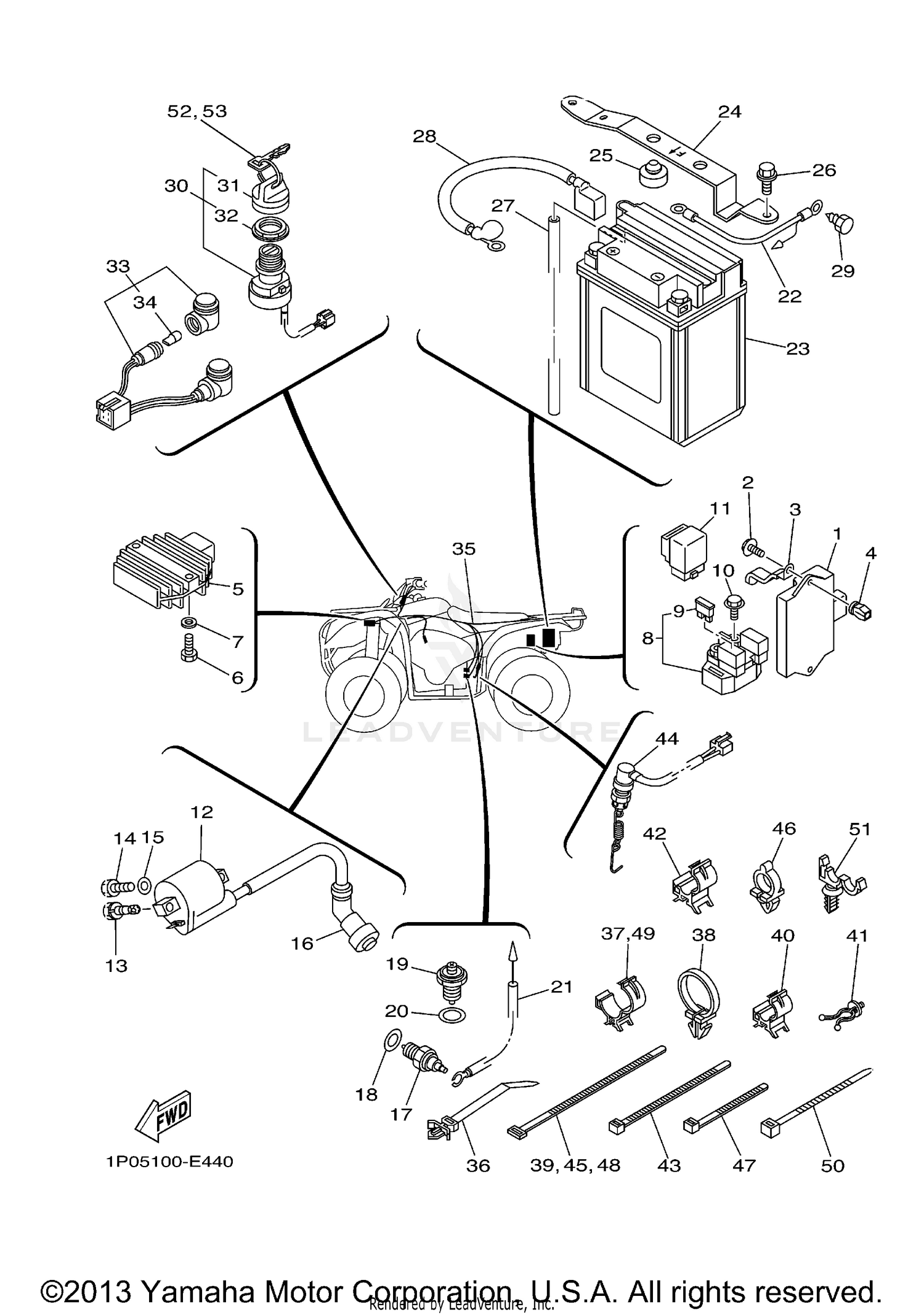

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
1P0-85540-00-00
|
$469.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, TAPPING
97707-60420-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP
90462-06016-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG
90338-08226-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RECTIFIER & REGULATOR ASSY
5GT-81960-00-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
STARTER RELAY ASSY (RC19-026)
4XE-81940-12-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE (20A-BL)
2GH-82151-00-00
Superseded by 2GV-82151-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT, FLANGE
9502P-06008-00
Superseded by 95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
RELAY ASSY
1RL-81950-92-00
Superseded by 12R-81950-02-00
|
$76.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
IGNITION COIL ASSY
4KJ-82310-10-00
Superseded by 3KJ-82310-14-00
|
$41.99 | ||
|
Unavailable |
|||
|
#13
BOLT
90109-06873-00
Superseded by 90109-06865-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
Unavailable |
|||
|
#16
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$41.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NEUTRAL SWITCH ASSY
4KD-82540-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-12790-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE, LEAD
5XG-H2507-00-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE, MINUS LEAD
1P0-H2116-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CB14A-A2 GS BATTERY
4XE-H2100-20-00
Superseded by CB1-4AA20-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, BATTERY
1P0-H2128-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PAD, BATTERY
5TG-82121-10-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIPE, BREATHER
1P0-H2112-00-00
|
$2.30 | ||
|
Unavailable |
|||
|
#28
WIRE, PLUS LEAD
1P0-H2115-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING
9770P-60416-00
Superseded by 97702-60416-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
MAIN SWITCH ASSY
4XE-82510-00-00
Superseded by 4XE-82510-01-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, KEY
3HN-82579-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
PILOT LIGHT ASSY
5TE-83530-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BULB (12V-1.7W)
5GH-83516-00-00
Superseded by 3FV-83517-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WIRE HARNESS ASSY
1P0-82590-00-00
Superseded by 1P0-82590-10-00
|
$239.99 | ||
|
Unavailable |
|||
|
#36
CLAMP
90464-25800-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLAMP
90464-20835-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-19815-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP
90464-48837-00
Superseded by 90464-48800-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-08834-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-12836-00
Superseded by 90464-12815-00
|
$3.60 | ||
|
Unavailable |
|||
|
#42
CLAMP
90464-10842-00
|
$1.35 | ||
|
Unavailable |
|||
|
#43
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#44
STOP SWITCH ASSY
4XE-82530-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-48837-00
Superseded by 90464-48800-00
|
$4.90 | ||
|
Unavailable |
|||
|
#46
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-31827-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90464-48837-00
Superseded by 90464-48800-00
|
$4.90 | ||
|
Unavailable |
|||
|
#49
CLAMP
90464-20835-00
|
$2.25 | ||
|
Unavailable |
|||
|
#50
CLAMP
90464-31827-00
|
$3.70 | ||
|
Unavailable |
|||
|
#51
CLAMP
90464-12830-00
|
$1.60 | ||
|
Unavailable |
|||
|
#52
BLANK KEY (A-TYPE)
90890-56001-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
BLANK KEY (B-TYPE)
90890-56002-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
