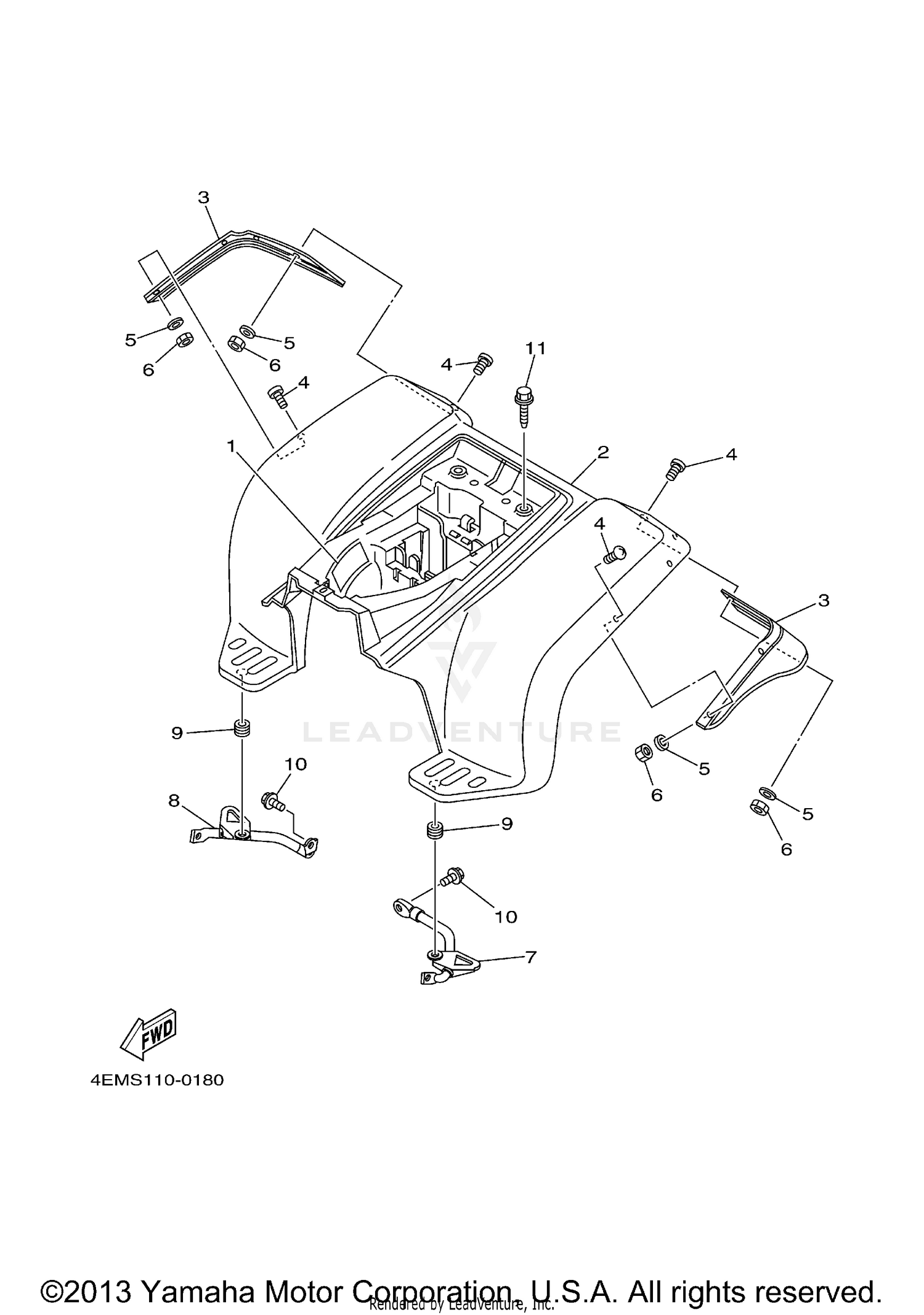

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLATE, EPA 3 (CALIFORNIA)
4EM-2179T-10-00
|
$27.99 | ||
|
Unavailable |
|||
|
#2
REAR FENDER COMP.
4EM-W2161-F1-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#
REAR FENDER COMP.
4EM-W2161-E1-00
|
$247.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLAP
2HX-21621-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, BINDING
90154-05005-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-05029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95707-05300-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, FENDER 1
3GB-21613-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, FENDER 2
3GB-21614-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-16233-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95807-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06056-00
Superseded by 90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
