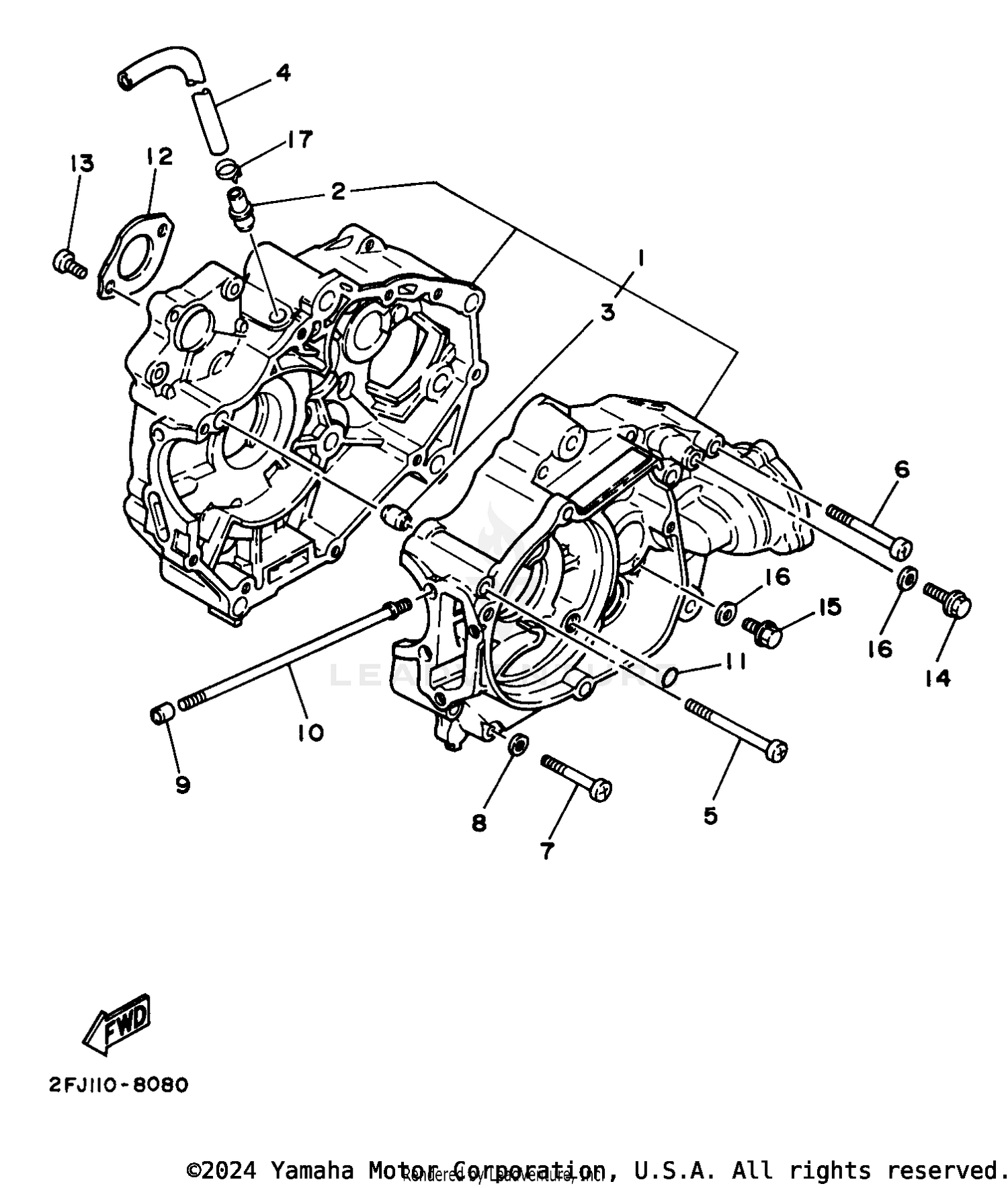

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
2FJ-15100-01-00
|
$408.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, BREATHER 2
59V-11167-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE (L700)
90445-121F6-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98507-06075-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98507-06060-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-06045-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, STUD
90116-06399-00
Superseded by 90116-06042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-07540-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, BEARING COVER
22F-15383-01-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95817-06016-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET
90430-06166-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-13064-00
Superseded by 90467-13133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
