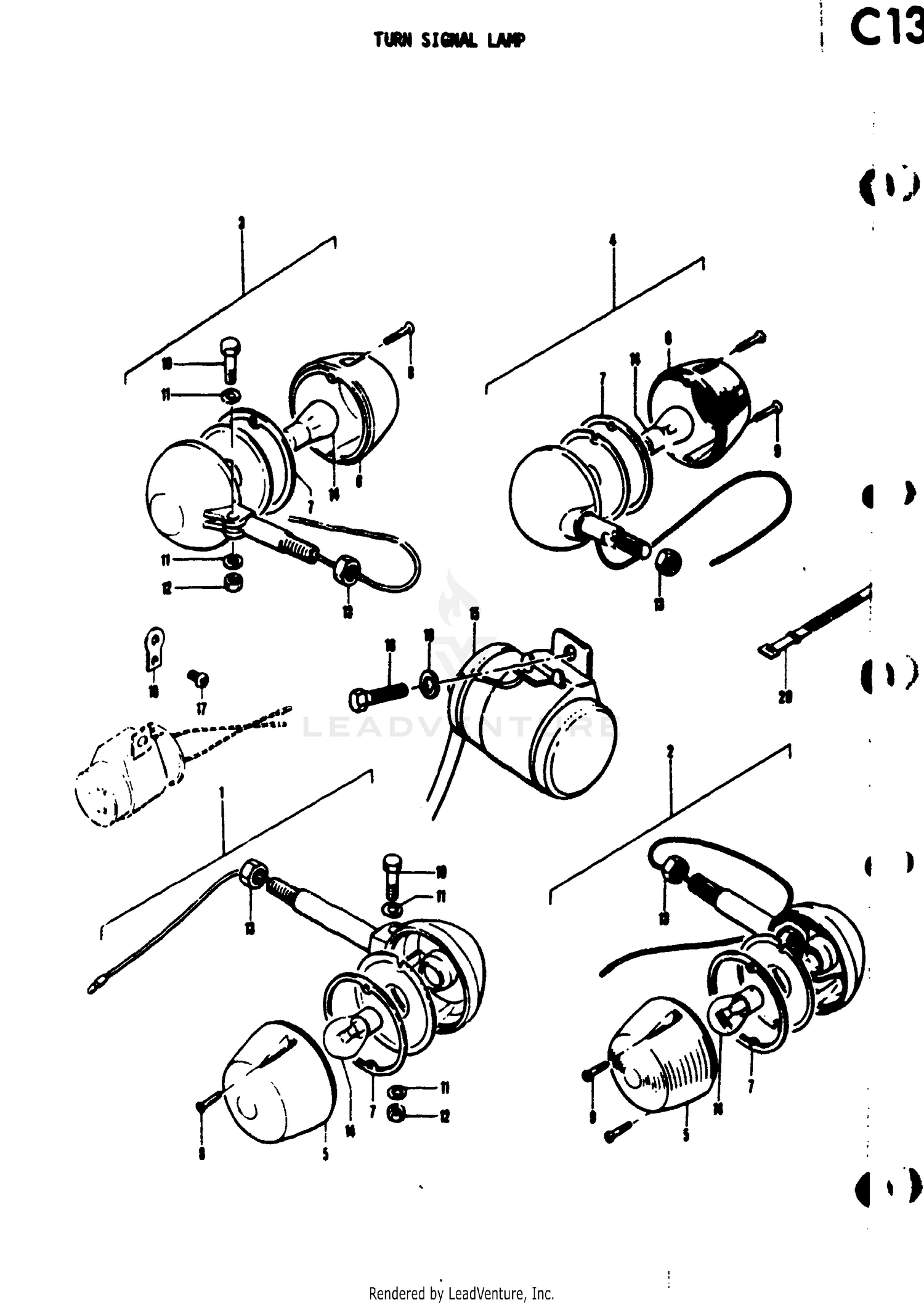

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, TURN SIGNAL FRONT
35601-18511-999
|
$31.50 | ||
|
Unavailable |
|||
|
#2
LAMP ASSY, TURN SIGNAL FRONT
35601-27630-999
|
$72.50 | ||
|
Unavailable |
|||
|
#3
LAMP ASSY, TURN SIGNAL REAR
35603-20691-999
|
|||
|
Unavailable |
|||
|
#4
LAMP ASSY, TURN SIGNAL REAR
35603-26610-999
|
|||
|
Unavailable |
|||
|
#5
LENS, FRONT
35612-12611
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#6
LENS, REAR
35652-22610
|
$14.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
35613-03610
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
35623-06110
|
$1.09 | ||
|
Unavailable |
|||
|
#9
SCREW
02133-03167
Superseded by 02132-03167
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
35625-12610
|
|||
|
Unavailable |
|||
|
#11
.WASHER
08322-11068
Superseded by 08322-0106B
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
.NUT
08311-31068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
NUT
08312-31108
Superseded by 08310-00107
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB
09471-06011
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY ASSY,TRN
38610-28610
Superseded by 38610-05X50
|
$55.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01112-06128
Superseded by 01500-06127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02112-06068
Superseded by 02112-06067
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BRACKET
38611-26600
|
|||
|
Unavailable |
|||
|
#20
CLAMP
09407-09302
|
|||
|
Unavailable |
|||
