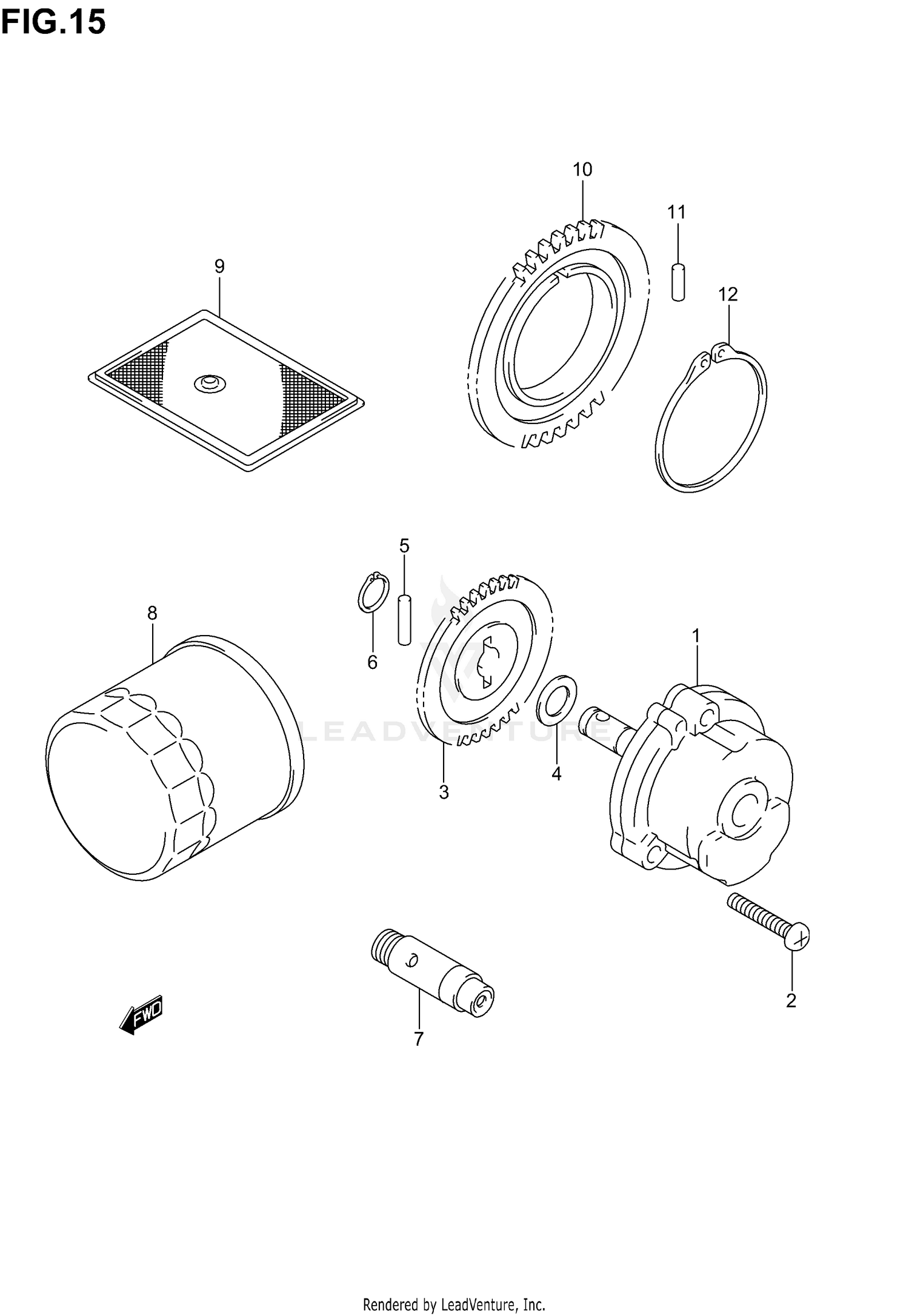

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,ENG OIL
16400-02FB0
|
$222.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-06253
Superseded by 02112-0625A
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, OIL PUMP DRIVEN
16331-02F00
|
$74.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
09181-10158
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09261-04009
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
08331-31106
Superseded by 08331-31109
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE ASSY, OIL RELIEF
16440-24F00
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
FILTER ASSY,ENGINE OIL
16510-03G00-X07
Superseded by 16510-07J10
|
$16.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
STRAINER,ENG OIL
16520-32E00
Superseded by 16520-32E01
|
$16.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, OIL PUMP DRIVE
16321-02F00
|
$68.58 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN (OD:6,L:6)
09261-06002
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
08331-31506
Superseded by 08331-31509
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
