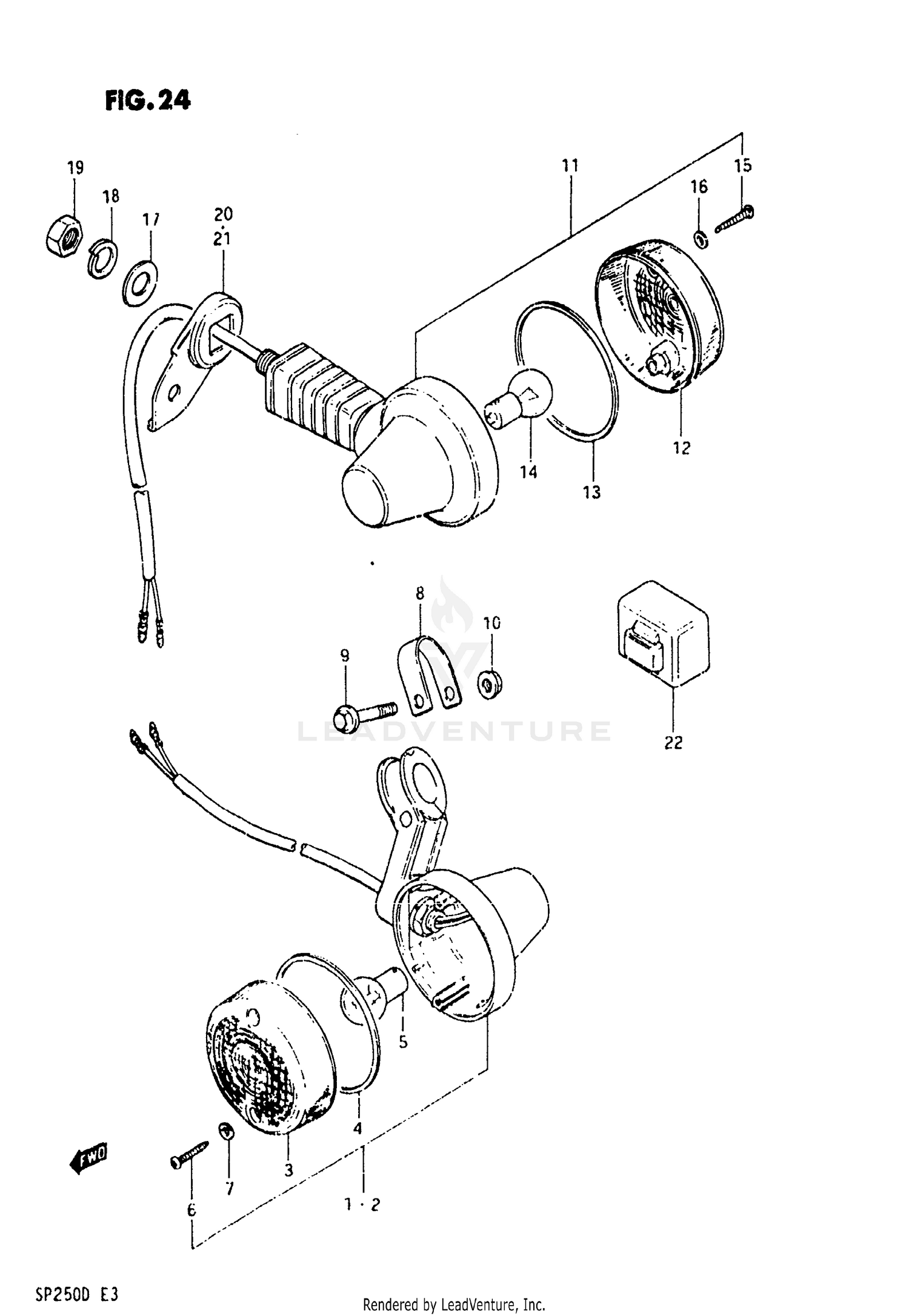

Turn Signal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP, FRONT TURN SIGNAL RH
35601-38210
Superseded by 35601-38210-999
|
$41.36 | ||
|
Unavailable |
|||
|
#2
LAMP, FRONT TURN SIGNAL LH
35602-38210
Superseded by 35602-38210-999
|
$41.36 | ||
|
Unavailable |
|||
|
#3
LENS,FR TRNSIG
35612-48530
Superseded by 35612-01A70
|
$10.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
35613-28620
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB (6V,17W)
09471-06011
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03211-04258
Superseded by 03211-0425B
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
35627-43010
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
35616-05210
|
$3.01 | ||
|
Unavailable |
|||
|
#9
BOLT
09103-05003
|
$1.02 | ||
|
Unavailable |
|||
|
#10
NUT
08316-16058
Superseded by 08316-1005A
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#11
LAMP, REAR TURN SIGNAL
35603-38210
Superseded by 35603-38201-999
|
$61.73 | ||
|
Unavailable |
|||
|
#11
LAMP, REAR TURN SIGNAL
35603-38211
Superseded by 35603-38201-999
|
$61.73 | ||
|
Unavailable |
|||
|
#12
LENS,FR TRNSIG
35612-48530
Superseded by 35612-01A70
|
$10.10 | ||
|
Unavailable |
|||
|
#13
GASKET
35613-28620
|
$5.78 | ||
|
Unavailable |
|||
|
#14
BULB (6V,17W)
09471-06011
|
$5.38 | ||
|
Unavailable |
|||
|
#15
SCREW
03211-04258
Superseded by 03211-0425B
|
$2.85 | ||
|
Unavailable |
|||
|
#16
GASKET
35627-43010
|
$2.56 | ||
|
Unavailable |
|||
|
#17
WASHER
09160-12049
Superseded by 09160-12048
|
$0.78 | ||
|
Unavailable |
|||
|
#18
LOCK WASHER
08321-21128
Superseded by 08321-01127
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FIXED DRIVE FACE
08310-12128
Superseded by 09140-12039
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, RH
35621-38201
|
$3.13 | ||
|
Unavailable |
|||
|
#21
BRACKET, LH
35641-38201
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
RELAY ASSY,TRN
38610-48600
Superseded by 38610-05X50
|
$55.45 | ||
|
Available to order. Add to View Price |
|||
