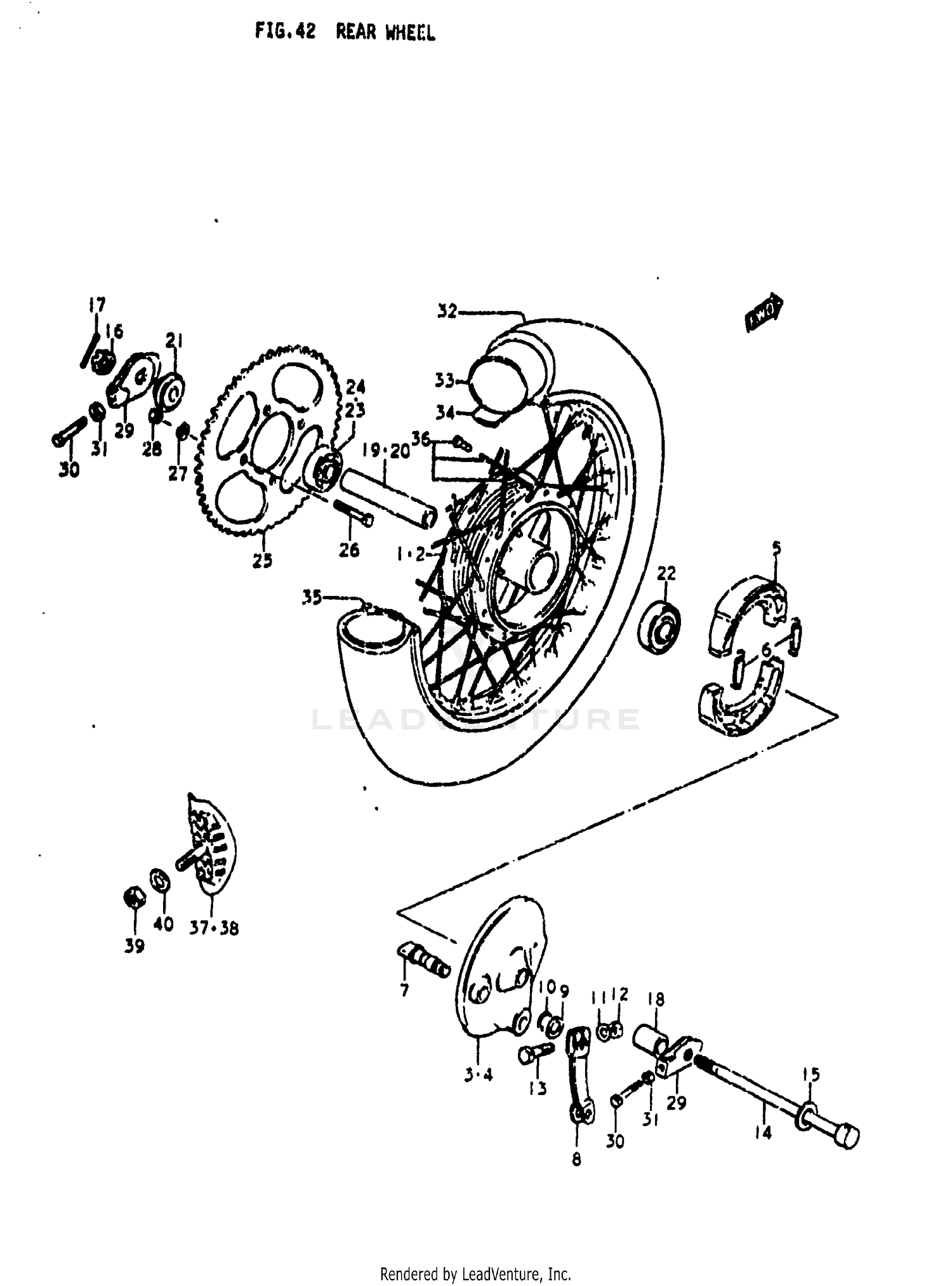

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM, REAR HUB
64110-46000
|
$71.09 | ||
|
Unavailable |
|||
|
#2
DRUM, REAR HUB
64110-46001
Superseded by 64100-46811
|
$137.88 | ||
|
Unavailable |
|||
|
#2
DRUM, REAR HUB
64100-46810
Superseded by 64100-46811
|
$137.88 | ||
|
Unavailable |
|||
|
#3
PANEL, REAR BRAKE ANCHOR
64210-46000
Superseded by 64210-46024
|
$86.73 | ||
|
Unavailable |
|||
|
#4
PANEL, REAR BRAKE ANCHOR
64210-46022
Superseded by 64210-46024
|
$86.73 | ||
|
Unavailable |
|||
|
#5
SHOE/SPRING SET
54410-43000
Superseded by 54400-35860
|
$38.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHOE/SPRING SET
54410-01005
Superseded by 54400-35860
|
$38.15 | ||
|
Unavailable |
|||
|
#6
SPRING
09443-07001
Superseded by 09443-07025
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM,BRAKE
54441-29300
Superseded by 54441-29305
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM,BRAKE
54441-29301
Superseded by 54441-29305
|
$21.62 | ||
|
Unavailable |
|||
|
#8
LEVER,REAR BRAK
64451-46100
Superseded by 64451-46100-A05
|
$19.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
09160-14001
Superseded by 09160-14055
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:2.5,ID:13.8)
09280-14003
Superseded by 09280-14011
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
08322-21068
Superseded by 08322-01067
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
.NUT
08310-11068
Superseded by 08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT, BRAKE CAM LEVER
09100-06078
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#14
AXLE,FRONT
64711-43000
Superseded by 64711-43001
|
$45.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-11128
Superseded by 08322-01127
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
08314-31128
Superseded by 08314-3112A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
04111-30308
Superseded by 04111-3030A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER,12.1X22X
09180-12077
Superseded by 09180-12077-XC0
|
$5.76 | ||
|
Unavailable |
|||
|
#19
SPACER, REAR HUB BEARING
09180-12078
|
$11.86 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, REAR HUB BEARING
09180-12082
|
$5.03 | ||
|
Unavailable |
|||
|
#21
SPACER, REAR AXLE LH
64750-46000
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
B1 12X37X12 BEA
08143-63010
Superseded by 08143-6301B
|
$23.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, REAR HUB LH
08113-63010
|
$20.56 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
08123-63010
Superseded by 08123-6301B
|
$17.17 | ||
|
Unavailable |
|||
|
#25
NO DESCRIPTION AVAILABLE
64511-46020
Superseded by 64511-39210
|
$47.25 | ||
|
Unavailable |
|||
|
#25
SPROCKET, REAR
64511-46030
|
$32.28 | ||
|
Unavailable |
|||
|
#25
SPROCKET, REAR
64511-46040
|
$33.03 | ||
|
Unavailable |
|||
|
#26
BOLT,STUD
01421-10208
Superseded by 01421-1020A
|
$3.06 | ||
|
Available to order. Add to View Price |
|||
|
#27
LOCK WASHER
08321-21108
Superseded by 08321-01107
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
08319-21108
Superseded by 09159-10027
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#29
ADJUSTER, CHAIN
61410-26000
|
$41.96 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
09104-06002
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
.NUT
08310-11068
Superseded by 08310-00067
|
$2.22 | ||
|
Unavailable |
|||
|
#32
TIRE
65100-46010
Superseded by 65100-46900
|
$74.66 | ||
|
Unavailable |
|||
|
#32
TIRE
65100-46900
|
$74.66 | ||
|
Unavailable |
|||
|
#33
TUBE ASSY, INNER
55200-24010
Superseded by 65200-02B40
|
$29.83 | ||
|
Available to order. Add to View Price |
|||
|
#34
PROTECTOR,INNER
55261-24010
Superseded by 55261-24020
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#35
RIM, WHEEL
65311-46020
Superseded by 55311-24020
|
$40.09 | ||
|
Unavailable |
|||
|
#35
NO DESCRIPTION AVAILABLE
65311-46900
Superseded by 55311-09D00
|
$82.57 | ||
|
Unavailable |
|||
|
#36
SPOKE ASSY, REAR
65300-24807
Superseded by 65320-20300
|
$47.59 | ||
|
Available to order. Add to View Price |
|||
|
#37
STOPPER, BEAD
65270-28600
|
$59.13 | ||
|
Available to order. Add to View Price |
|||
|
#38
STOPPER,BEAD (1.85)
65270-46900
Superseded by 65270-43D00
|
$63.46 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT
08310-12088
Superseded by 08310-00087
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
