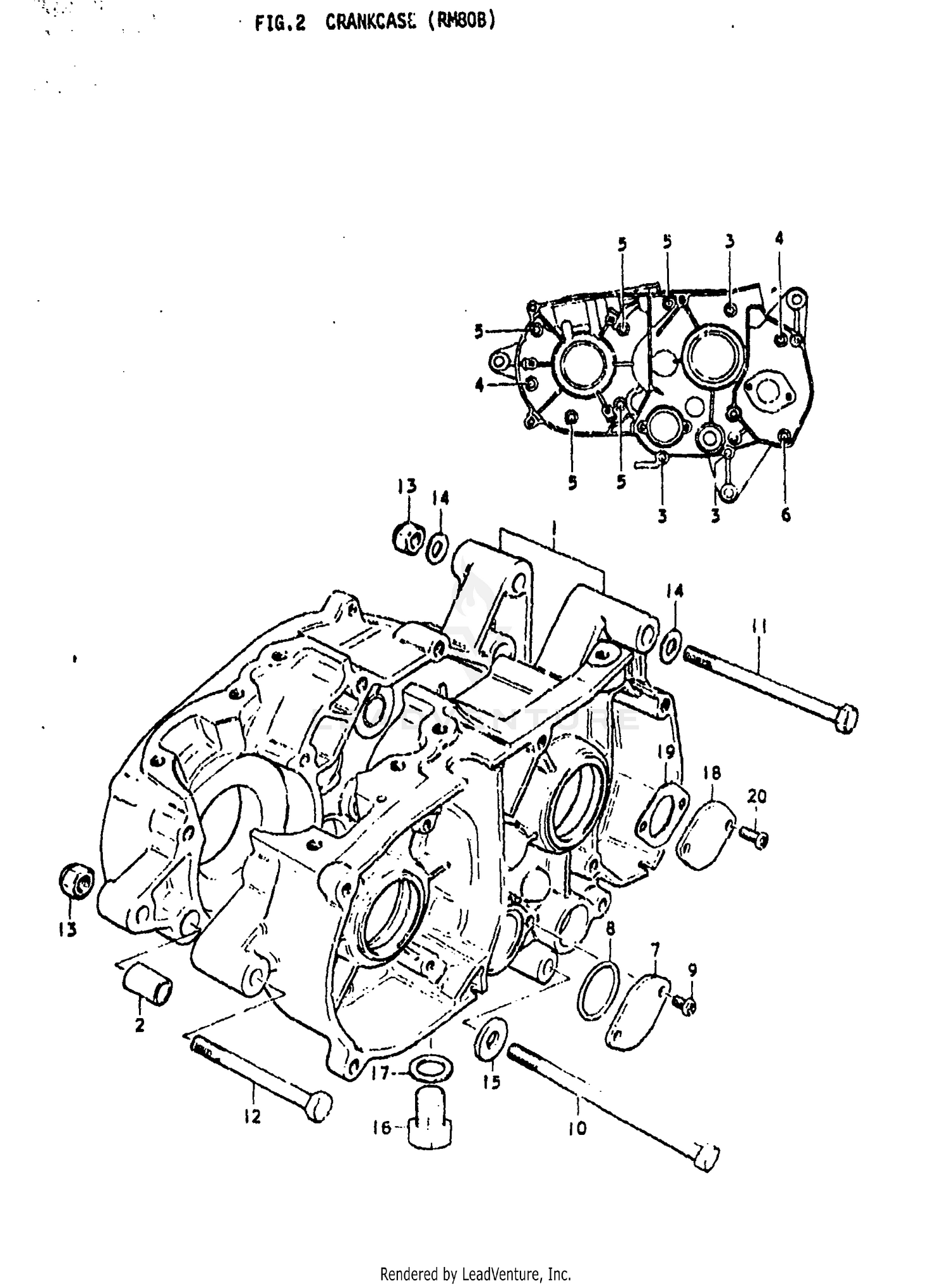

Crankcase (rm80b) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANK CASE SET
11300-46811
Superseded by 11301-46822
|
$581.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN
09206-13001
Superseded by 04211-13189
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SCREW
02112-06557
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X45)
02112-06458
Superseded by 02112-06457
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02112-06358
Superseded by 02112-06357
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02112-06258
Superseded by 02112-06257
|
$2.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CAP, GEAR SHIFTING CAM PIVOT
11451-46000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING (D:2.4,ID:26.2)
09280-26003
Superseded by 09280-26005
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02112-05088
Superseded by 02112-05087
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
09100-08027
Superseded by 09116-08064
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, NO.2
09100-08023
|
$1.92 | ||
|
Unavailable |
|||
|
#12
BOLT
01107-08758
Superseded by 01500-0875B
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09159-08020
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-11088
Superseded by 08322-01087
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER
09160-08030
Superseded by 09160-08128
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, DRAIN
09247-14007
Superseded by 09247-14025
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
09168-14004
|
$1.92 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CAP OIL PUMP DRIVE SHAFT
16745-16701
|
$8.73 | ||
|
Unavailable |
|||
|
#19
GASKET, OIL PUMP
16731-03100
Superseded by 16731-03101
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02112-05128
Superseded by 02112-05127
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
