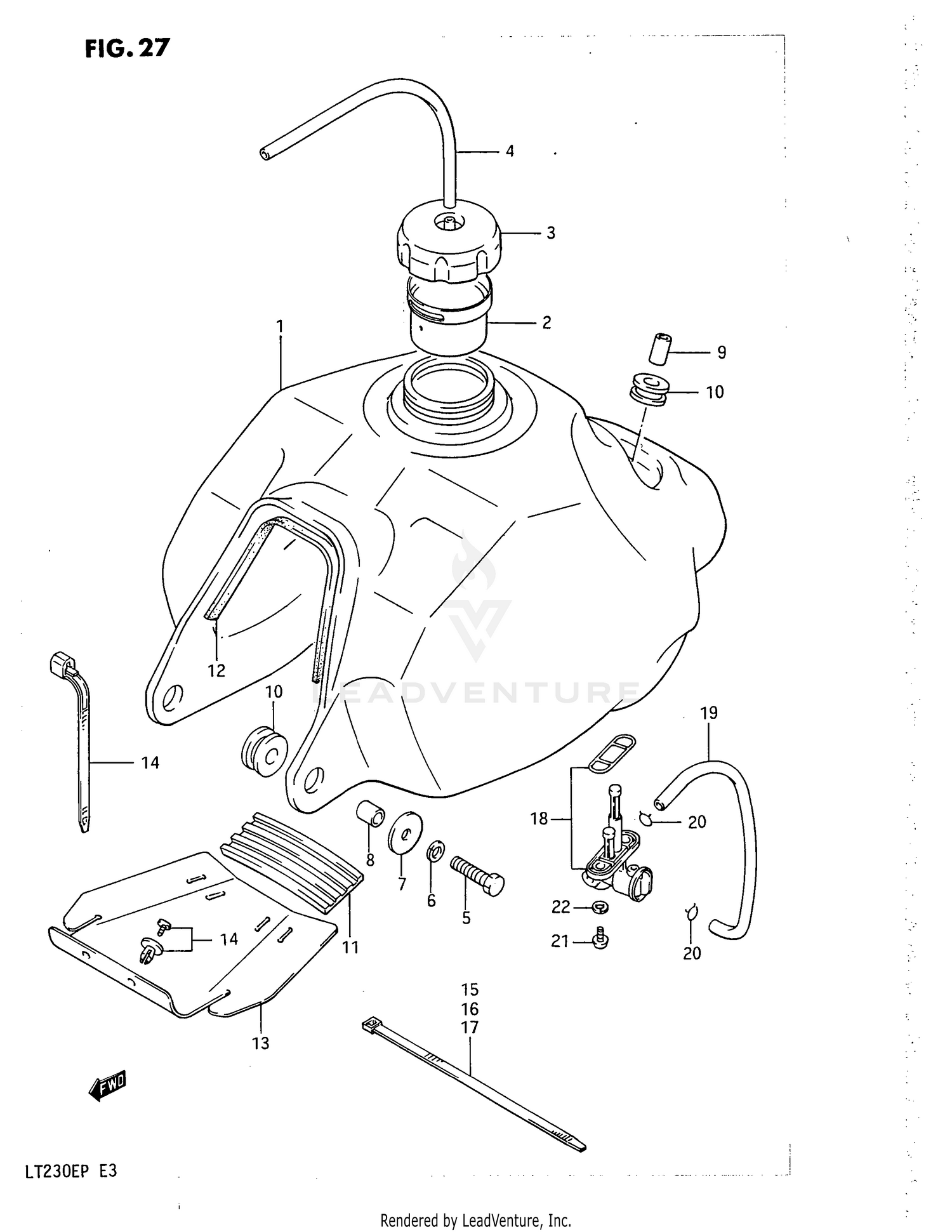

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL
44110-22A00
|
$224.71 | ||
|
Unavailable |
|||
|
#2
TUBE, TANK FILLER
44199-19A00
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, FUEL TANK
44200-19A01
|
$62.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01107-08358
Superseded by 01500-0835B
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT
09118-08121
|
$2.51 | ||
|
Unavailable |
|||
|
#6
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
WASHER, MUFFLER SUPPORT
09160-08001
Superseded by 09160-08503
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER 8.2X12X1
09180-08032
Superseded by 09180-08143
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER,6.5X10X2
09180-06115
Superseded by 09180-06297
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-12016
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION,FUEL TANK UPR FR
44541-14500
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
.RUBBER,FUEL TANK,FRONT
44261-22A00
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
MUD GUARD, CLEANER INLET
47157-22A00
Superseded by 47157-22A01
|
$22.78 | ||
|
Unavailable |
|||
|
#13
MUD GUARD, CLEANER INLET
47157-22A01
|
$22.78 | ||
|
Unavailable |
|||
|
#14
.CLIP (BLACK)
09409-07305
Superseded by 09409-07305-5PK
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLAMP
09407-20402
Superseded by 09407-25402
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09407-30401
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
COCK ASSY, FUEL
44300-22A00
Superseded by 44300-22A01
|
$73.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
COCK ASSY, FUEL
44300-22A01
|
$73.25 | ||
|
Unavailable |
|||
|
#19
HOSE,5X10X600
09352-50823-300
Superseded by 44421-13ER0
|
$12.80 | ||
|
Unavailable |
|||
|
#20
CLIP
09401-08401
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02112-06167
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
02112-36168
Superseded by 02112-36167
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER,LOCK
08321-21067
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
