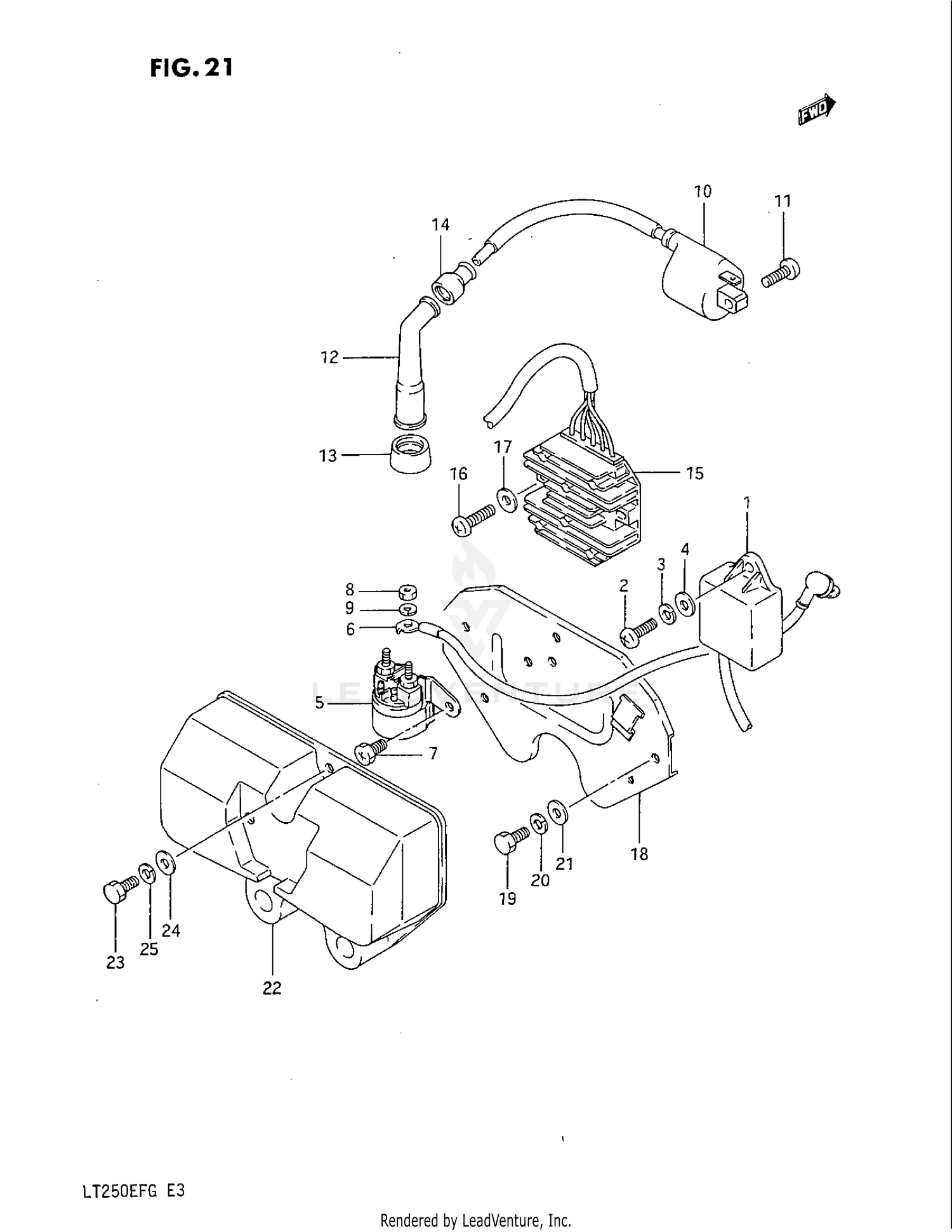

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I UNIT
32900-24510
|
$384.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-06166
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
LOCK WASHER
08321-21066
Superseded by 08321-0106A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
.WASHER
08322-21066
Superseded by 08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RELAY, STARTING MOTOR
31800-49100
|
$125.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEAD WIRE, STARTING MOTOR
33850-24500
Superseded by 33850-05A00
|
$25.65 | ||
|
Unavailable |
|||
|
#7
SCREW
09128-06038
|
$0.37 | ||
|
Unavailable |
|||
|
#8
NUT
08310-11066
Superseded by 08310-0006A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK WASHER
08321-21066
Superseded by 08321-0106A
|
$2.29 | ||
|
Unavailable |
|||
|
#10
COIL ASSY,IGNIT
33410-24510
Superseded by 33410-09412
|
$92.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
09129-06003
|
$1.17 | ||
|
Unavailable |
|||
|
#12
CAP, SPARK PLUG
33510-45010
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, SPARK PLUG
33541-24510
Superseded by 33541-47D00
|
$10.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SEAL,HIGH TENSION CORD
33542-98000
Superseded by 33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
RECTIFIER ASSY
32800-24500
Superseded by 32800-24501
|
$324.64 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
02112-06206
Superseded by 02112-0620A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
.WASHER
08322-21066
Superseded by 08322-0106B
|
$2.80 | ||
|
Unavailable |
|||
|
#18
HOLDER, ELECTRIC PARTS
47410-24500
|
$7.80 | ||
|
Unavailable |
|||
|
#19
BOLT
01107-06126
Superseded by 01500-0612A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21066
Superseded by 08321-0106A
|
$2.29 | ||
|
Unavailable |
|||
|
#21
.WASHER
08322-21066
Superseded by 08322-0106B
|
$2.80 | ||
|
Unavailable |
|||
|
#22
COVER, ELECTRIC PARTS
47433-24501
|
$15.26 | ||
|
Unavailable |
|||
|
#23
BOLT
01107-06125
Superseded by 01500-0612A
|
$2.24 | ||
|
Unavailable |
|||
|
#24
WASHER
09169-06034
Superseded by 09169-06071
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
LOCK WASHER
08321-21064
Superseded by 08321-0106A
|
$2.29 | ||
|
Unavailable |
|||
