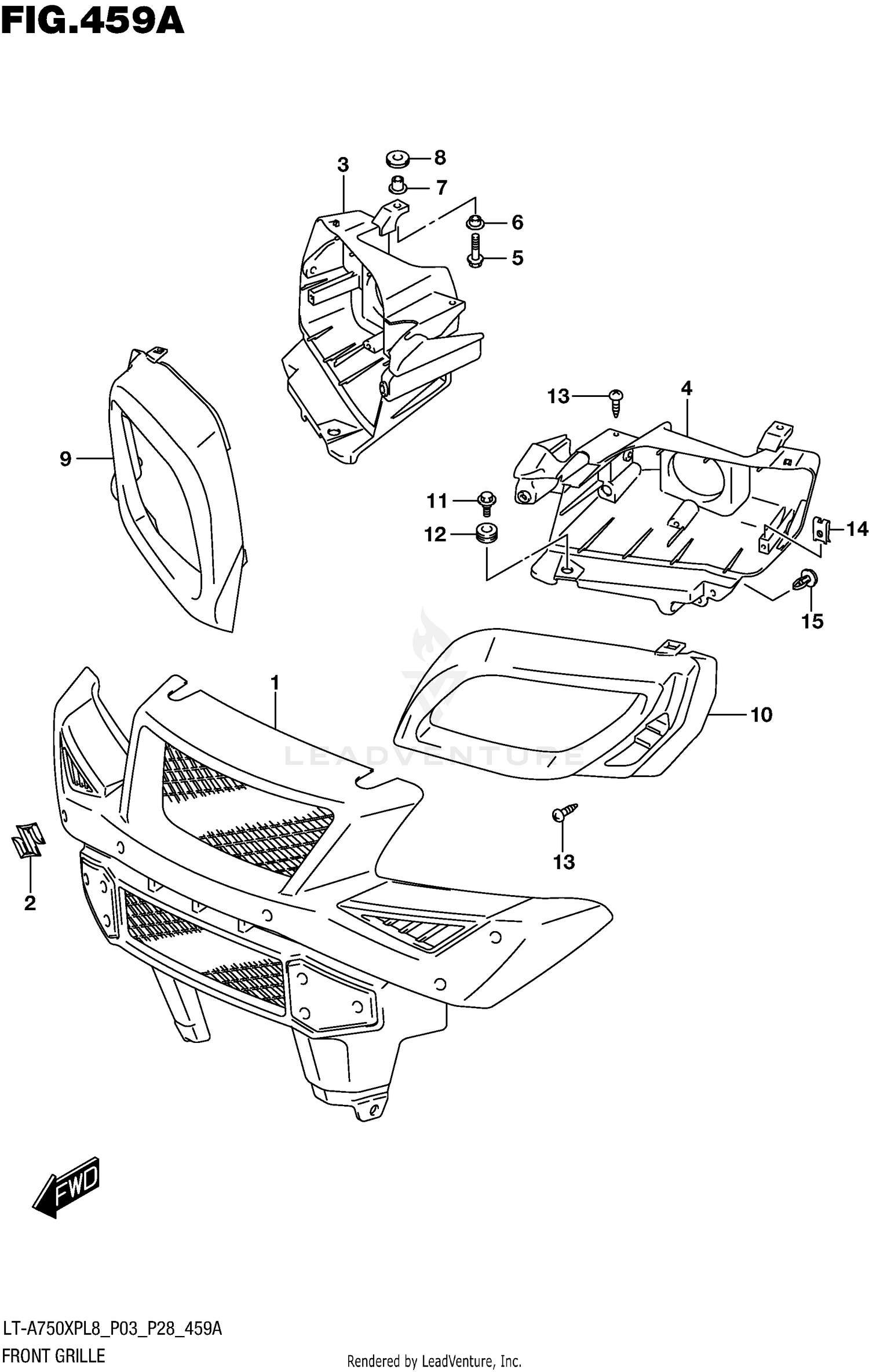

Front Grille (lt-a750xpl8 P03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRILLE,FRONT
53118-31GA1-291
Superseded by 53118-31GA2-291
|
$81.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, "S"
68151-03G40
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING,FRONT L
53281-31G01-291
Superseded by 53281-31G04-291
|
$96.58 | ||
|
Unavailable |
|||
|
#4
HOUSING, FRONT LH (BLACK)
53284-31G01-291
|
$37.52 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER (6.1X17.0X4.8)
09169-06073
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
09169-06074
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION (11.5X32X12.2)
09320-11021
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,FRONT LAM
53282-31G01-291
Superseded by 53282-31G04-291
|
$19.65 | ||
|
Unavailable |
|||
|
#10
COVER,FRONT LAM
53283-31G01-291
Superseded by 53283-31G03-291
|
$39.14 | ||
|
Unavailable |
|||
|
#11
SCREW (6X22.5)
09139-06118
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-10501
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
09409-08335
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
