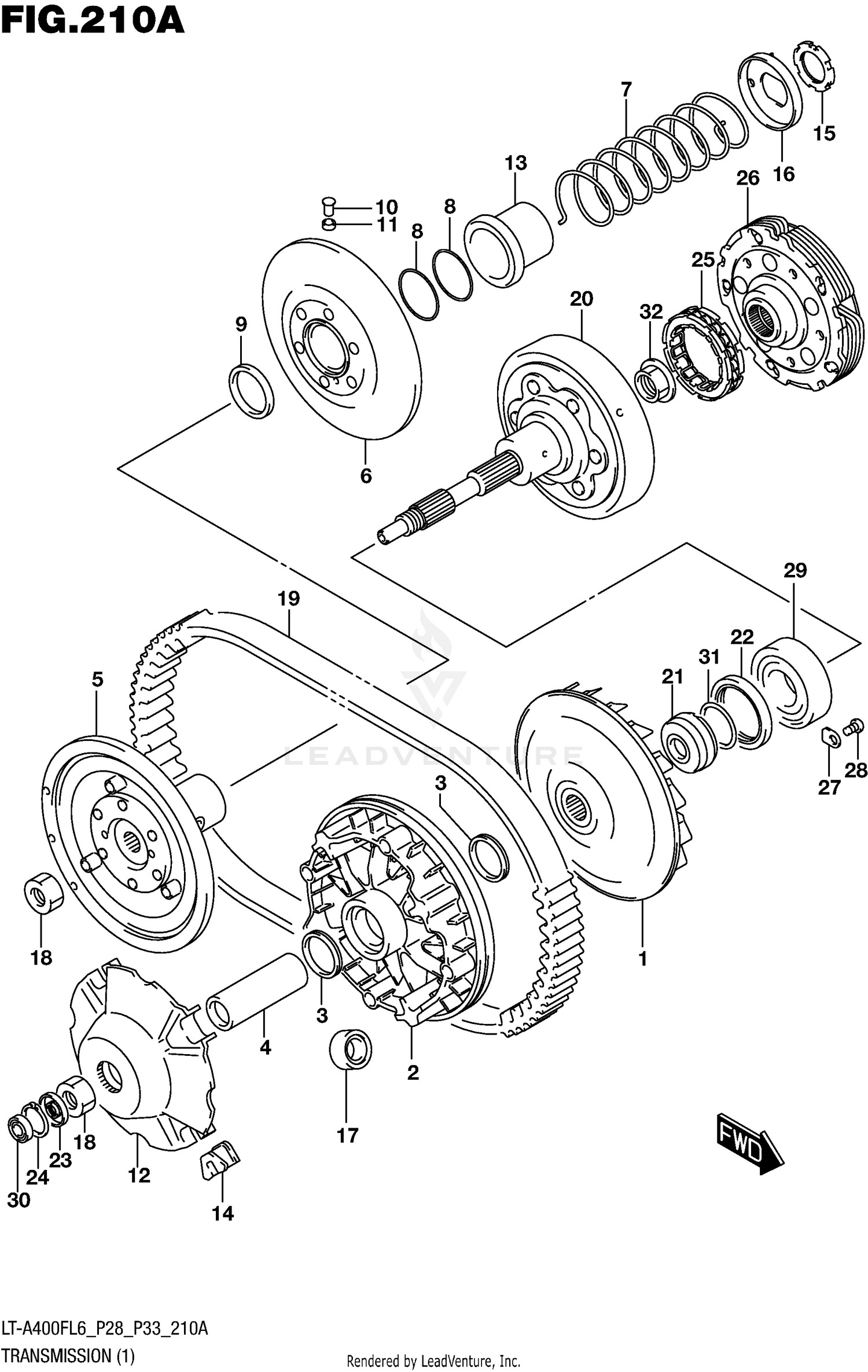

Transmission (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FACE,FIXED DRIVE
21110-38F00
|
$200.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
FACE,MOVABLE DRIVE
21120-38F00
|
$186.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, MOVABLE DRIVE
21124-14F00
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER,MOVABLE DRIVE
21125-38F01
|
$49.83 | ||
|
Available to order. Add to View Price |
|||
|
#5
FACE,FIXED DRIVEN
21210-38F02
|
$444.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
FACE,MOVABLE DRIVEN
21240-38F02
|
$425.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING,MOVABLE DRIVEN
21243-38F01
|
$58.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING,MOVABLE DRIVEN
21245-38F00
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL,MOVABLE DRIVEN OIL
21247-38F00
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN,MOVABLE DRIVEN
21248-15F01
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,MOVABLE DRIVEN PIN
21249-15F00
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE,MOVABLE DRIVE
21431-38F00
|
$55.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHEET,MOVABLE DRIVEN
21471-38F01
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER,MOVABLE DRIVE PLATE
21481-14F00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT,DRIVEN PULLEY SPRING
21518-38F00
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOLDER, MOVABLE DRIVEN
21519-38F00
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROLLER,MOVABLE DRIVE
21650-15F20
|
$19.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09140-16032
|
$8.14 | ||
|
Available to order. Add to View Price |
|||
|
#19
V-BELT, DRIVE
27601-38F00
|
$200.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOUSING,CLUTCH
21100-38F00
|
$363.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, FIXED DRIVE LH
21102-38F00
|
$53.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL,CLUTCH HOUSING SPACER OI
21104-09F56
Superseded by 21104-09F60
|
$78.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL (12X32X5)
09283-12008
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
08331-41329
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLUTCH,PRI DRIVE ONE WAY
21273-44D00
|
$178.21 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLUTCH ASSY, SHOE
21500-38F10
|
$455.16 | ||
|
Available to order. Add to View Price |
|||
|
#27
RETAINER, BEARING
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW (6X12)
09125-06122
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING (40X80X18)
09262-40010
|
$123.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
08113-62017
Superseded by 08113-6201B
|
$12.91 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING (D:2.4,ID:39.7)
09280-40010
Superseded by 09280-40020
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
09159-18023
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
