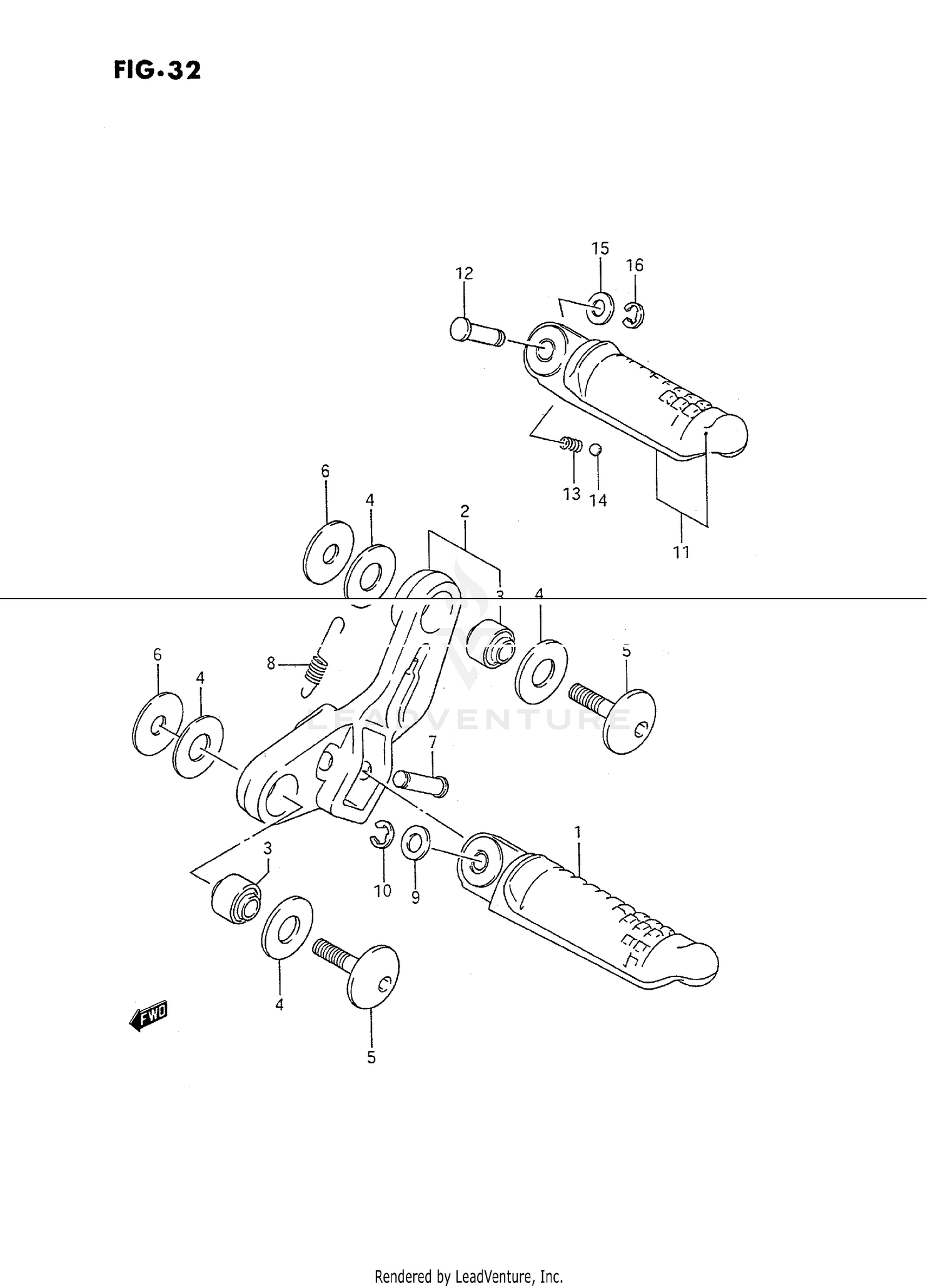

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FR FOOTRES
43510-19C00
Superseded by 43510-19C02
|
$98.83 | ||
|
Available to order. Add to View Price |
|||
|
#1
BAR, FR FOOTRES
43510-19C01
Superseded by 43510-19C02
|
$98.83 | ||
|
Unavailable |
|||
|
#1
BAR,FR FOOTREST
43520-19C00
Superseded by 43520-19C02
|
$80.09 | ||
|
Available to order. Add to View Price |
|||
|
#1
BAR,FR FOOTREST
43520-19C01
Superseded by 43520-19C02
|
$80.09 | ||
|
Unavailable |
|||
|
#2
HOLDER, FRONT FOOTREST RH
43531-19C00
|
$86.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOLDER, FRONT FOOTREST LH
43541-19C00
|
$81.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, HOLDER
09319-08033
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, HOLDER
09161-12006
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09106-08079
|
$11.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, MUFFLER SUPPORT
09160-08104
Superseded by 09160-08503
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-08503
|
$3.17 | ||
|
Unavailable |
|||
|
#7
PIN
09208-08010
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SPRING
09443-08049
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,LOCK
08322-11084
Superseded by 08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.29 | ||
|
Unavailable |
|||
|
#10
E-RING
08332-11066
Superseded by 08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#11
BAR, PILLION FOOTREST RH
43610-19C00
|
$56.92 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR, PILLION FOOTREST LH
43710-19C00
|
$70.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BAR, PILLION FOOTREST LH
43710-20C00
Superseded by 43710-20C01
|
$83.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
09208-08011
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,LOCK
08322-11084
Superseded by 08322-0108A
|
$2.29 | ||
|
Unavailable |
|||
|
#15
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.29 | ||
|
Unavailable |
|||
|
#16
E RING
08332-11069
|
|||
|
Unavailable |
|||
|
#16
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
