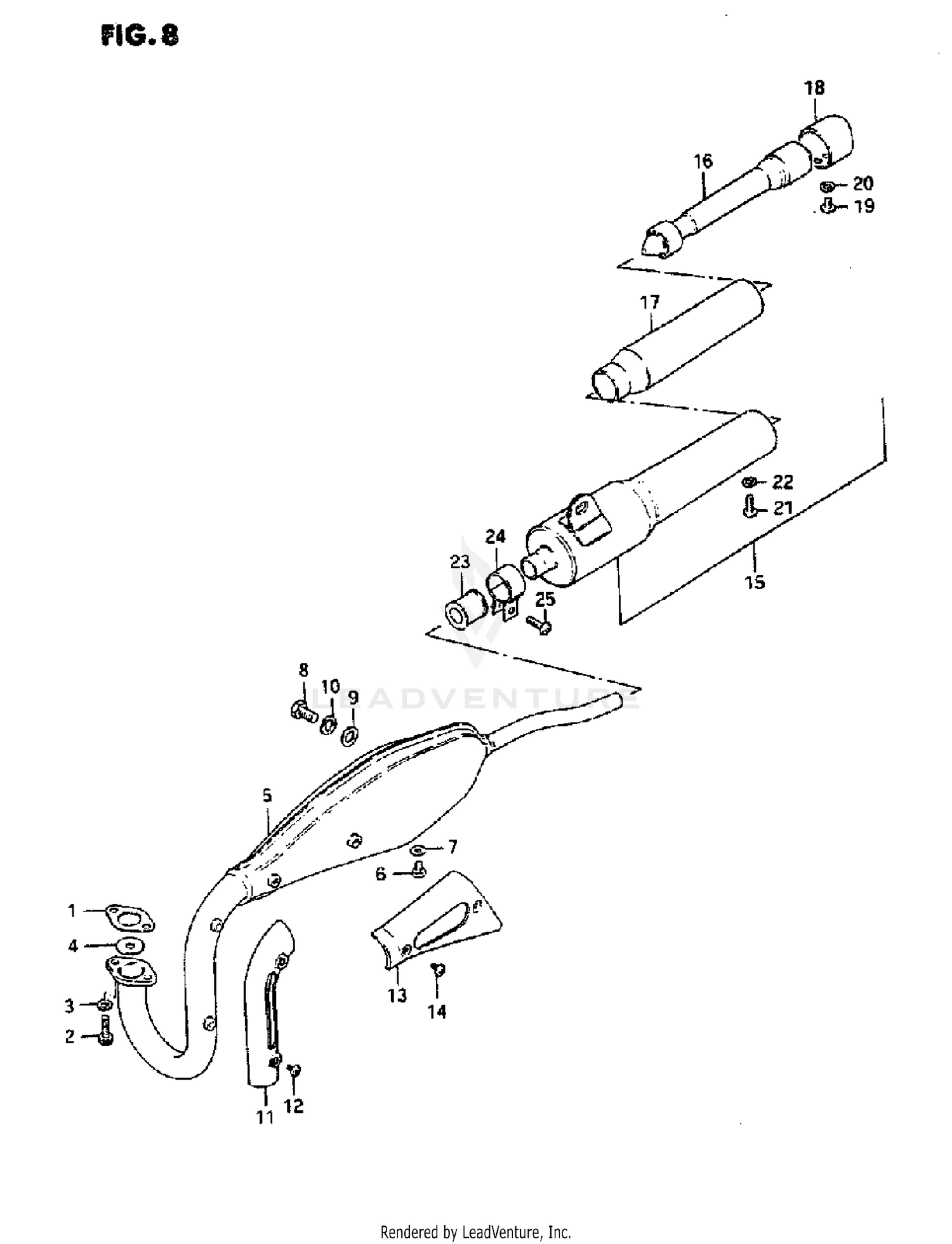

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET. EXHAUST PIPE (NA)
14181-04200
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
07110-06167
Superseded by 07130-06167
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
07130-06163
Superseded by 07130-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,LOCK
08321-21067
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
LOCK WASHER
08321-01063
Superseded by 08321-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, EXHAUST PIPE
14159-04410
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
MUFFLER ASSY
14301-04412-H01
Superseded by 14301-04420-H01
|
$450.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01107-06107
Superseded by 01500-06107
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01500-06103
Superseded by 01500-0610B
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
08322-21067
Superseded by 08322-01067
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
.WASHER
08322-01063
Superseded by 08322-0106B
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLUG, DRAIN
01107-08167
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG, DRAIN
01500-08163
Superseded by 01500-0816B
|
$3.11 | ||
|
Unavailable |
|||
|
#9
WASHER (8.5X20X1.6)
09160-08010
Superseded by 09160-08054
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER,LOCK
08321-01083
Superseded by 08321-0108A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER. EXHAUST PIPE
14186-04410
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
02112-05068
Superseded by 09125-05122
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW
09125-05121
Superseded by 02112-0506B
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, MUFFLER
14781-04410
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02112-05068
Superseded by 09125-05122
|
$2.59 | ||
|
Unavailable |
|||
|
#14
SCREW
09125-05121
Superseded by 02112-0506B
|
$2.33 | ||
|
Unavailable |
|||
|
#15
MUFFLER ASSY
14303-04412-H01
Superseded by 14301-04420-H01
|
$450.13 | ||
|
Unavailable |
|||
|
#16
TUBE, CLEAN OUT
14850-30602
|
$57.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHELL. ARRESTER
14815-46600
|
$69.89 | ||
|
Unavailable |
|||
|
#18
CUTTER, MUFFLER TAIL
14817-04410
|
$9.76 | ||
|
Unavailable |
|||
|
#19
SCREW
02112-06087
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,LOCK
08321-21067
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#21
SCREW
02112-06167
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER,LOCK
08321-21067
Superseded by 08321-01067
|
$2.29 | ||
|
Unavailable |
|||
|
#23
CONNECTOR. MUFFLER
14771-04410
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
09402-22601
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW
02112-06167
|
$1.78 | ||
|
Unavailable |
|||
|
#25
SCREW
02112-06163
Superseded by 02112-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
