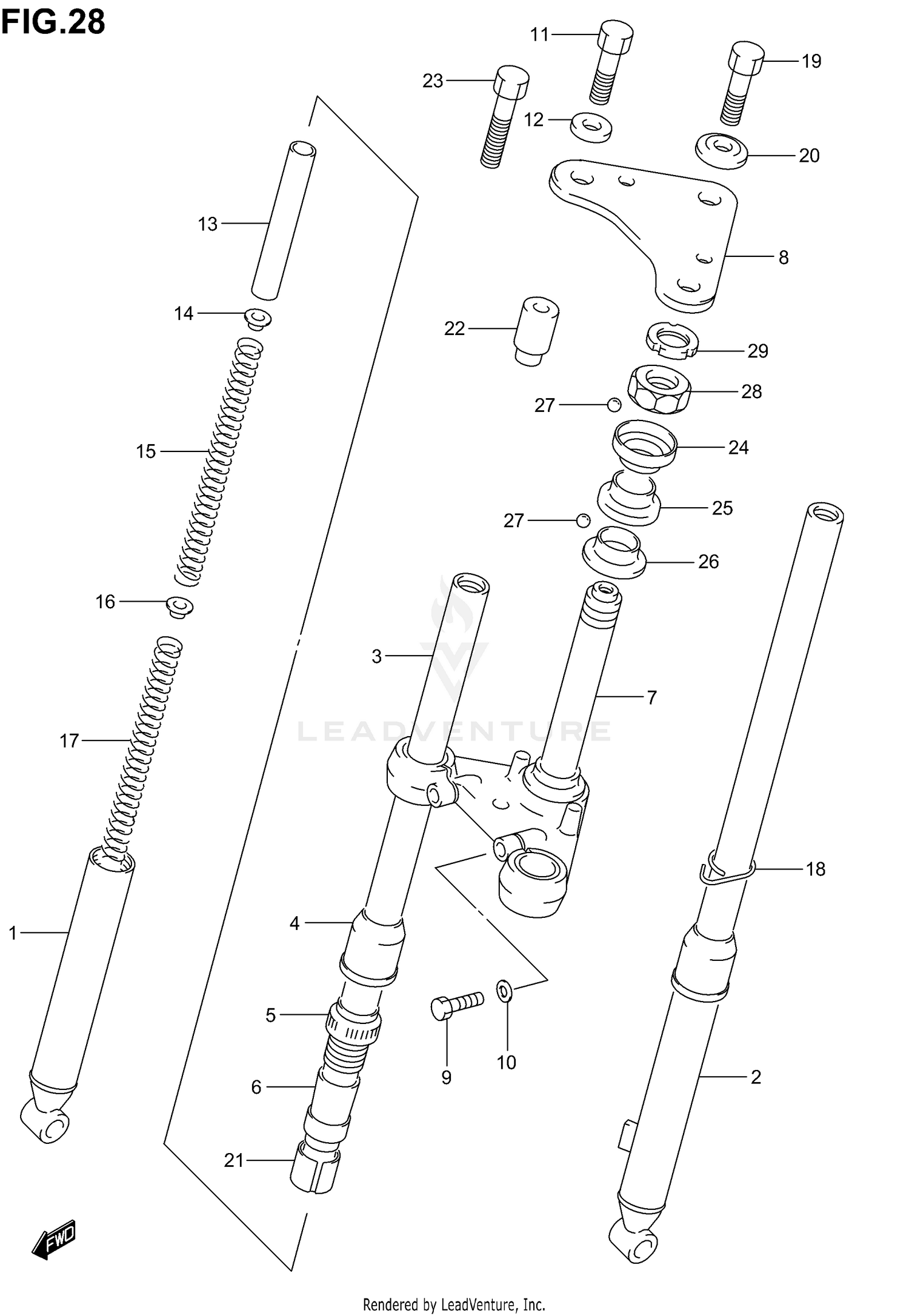

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
FORK ASSY, FRONT (SILVER)
51100-04430-13L
|
$375.74 | ||
|
Available to order. Add to View Price |
|||
|
#1
TUBE, OUTER RH (SILVER)
51130-04411-13L
|
$190.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER LH (SILVER)
51140-04411-13L
|
$171.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, INNER
51110-04420
|
$56.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
DUST SEAL
51173-04410
|
$13.74 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, OUTER
51150-04410
|
$20.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
STOPPER
51193-04410
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
STEM, STEERING
51410-04430
|
$100.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
HEAD, STEERING STEM
51310-04430
|
$34.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01500-08257
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER
08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT
51352-04420
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (36X10.5X2.3)
51356-07010
|
$7.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
51176-04420
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, SPRING NO.1
51172-04420
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, NO.1
51171-04420
|
$9.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE, SPRING NO.2
51172-04410
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, NO.2
51184-04420
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP
51572-04410
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
51351-04420
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (33.5X10.5X4.2)
51356-04420
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, SLIDE
51121-04430
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
52331-04420
|
$13.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
09100-10302
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#24
RACE, INNER UPPER
51611-19G00
|
$12.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
RACE, INNER LOWER
51612-19G00
|
$12.22 | ||
|
Available to order. Add to View Price |
|||
|
#26
RACE,STEERING O
51622-29C10
Superseded by 51622-29C20
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#27
STEEL BALL
06111-05004
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#28
RACE,STEERING O
51621-02200
Superseded by 51621-16A01
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, STEERING STEM
99800-10420
|
$2.16 | ||
|
Unavailable |
|||
