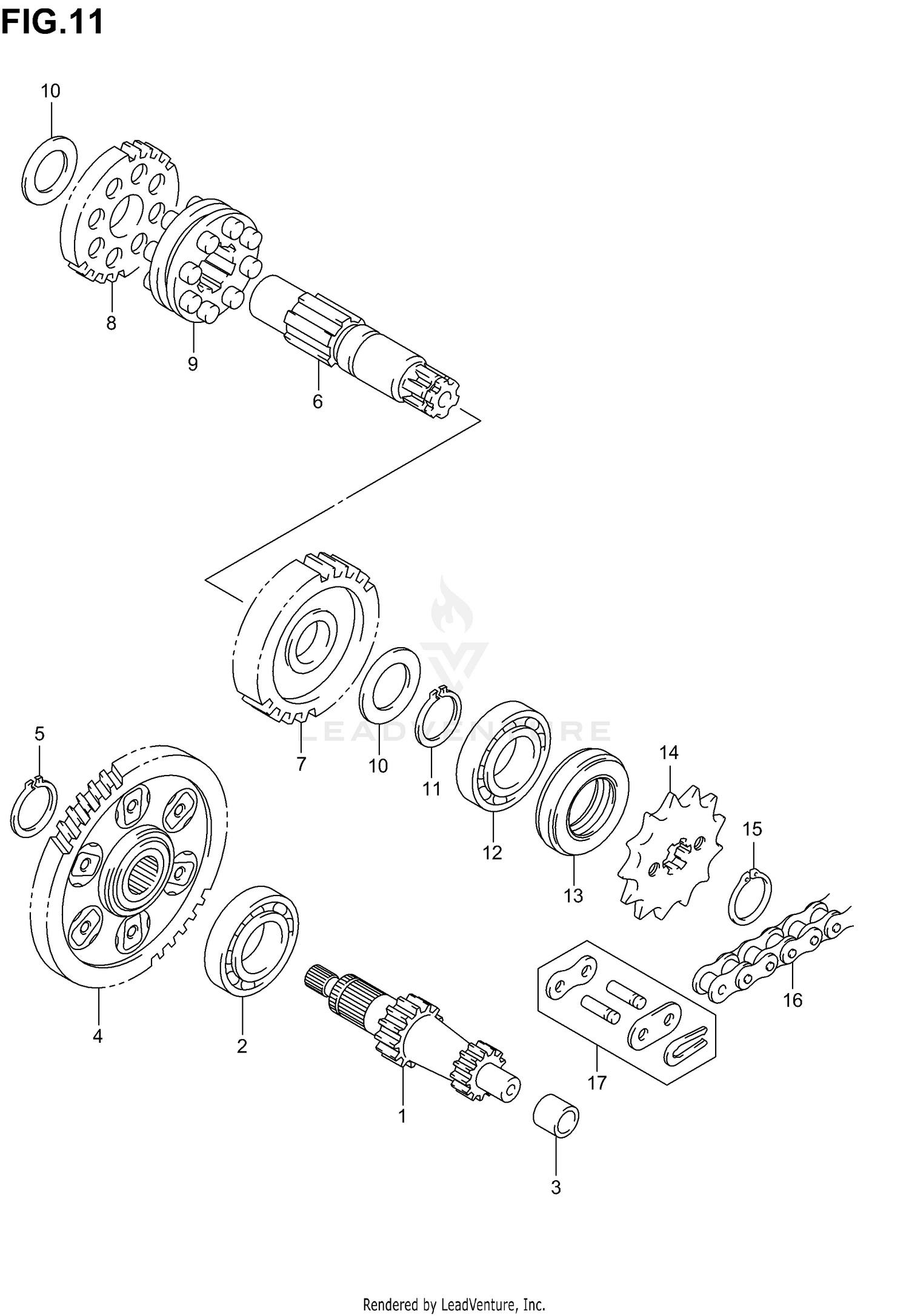

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:10/13)
24121-04011
|
$129.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (17X40X12)
09262-17023
|
$21.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BUSH
09304-10005
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, PRIMARY DRIVEN (NT:53)
21200-04501
|
$154.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
09380-17003
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
DRIVE SHAFT
24131-04001
|
$92.15 | ||
|
Unavailable |
|||
|
#7
GEAR, 1ST DRIVEN (NT:40)
24311-04002
|
$88.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 2ND DRIVEN (NT:29)
24321-04011
|
$90.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
WHEEL, SLIDING
24411-04003
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (17X30X1.0)
09181-17223
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP, 2ND DRIVEN
09380-17003
|
$2.67 | ||
|
Unavailable |
|||
|
#12
BEARING (17X40X12)
09262-17023
|
$21.01 | ||
|
Unavailable |
|||
|
#13
OIL SEAL CRANKS
09283-17010
Superseded by 09283-17012
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET, ENGINE (NT:13)
27511-19000
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
08331-31166
Superseded by 08331-31169
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
CHAIN ASSY,DRIV
27600-01011-078
Superseded by 27600-01012-078
|
$26.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
JOINT (DID)
27620-01012
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
