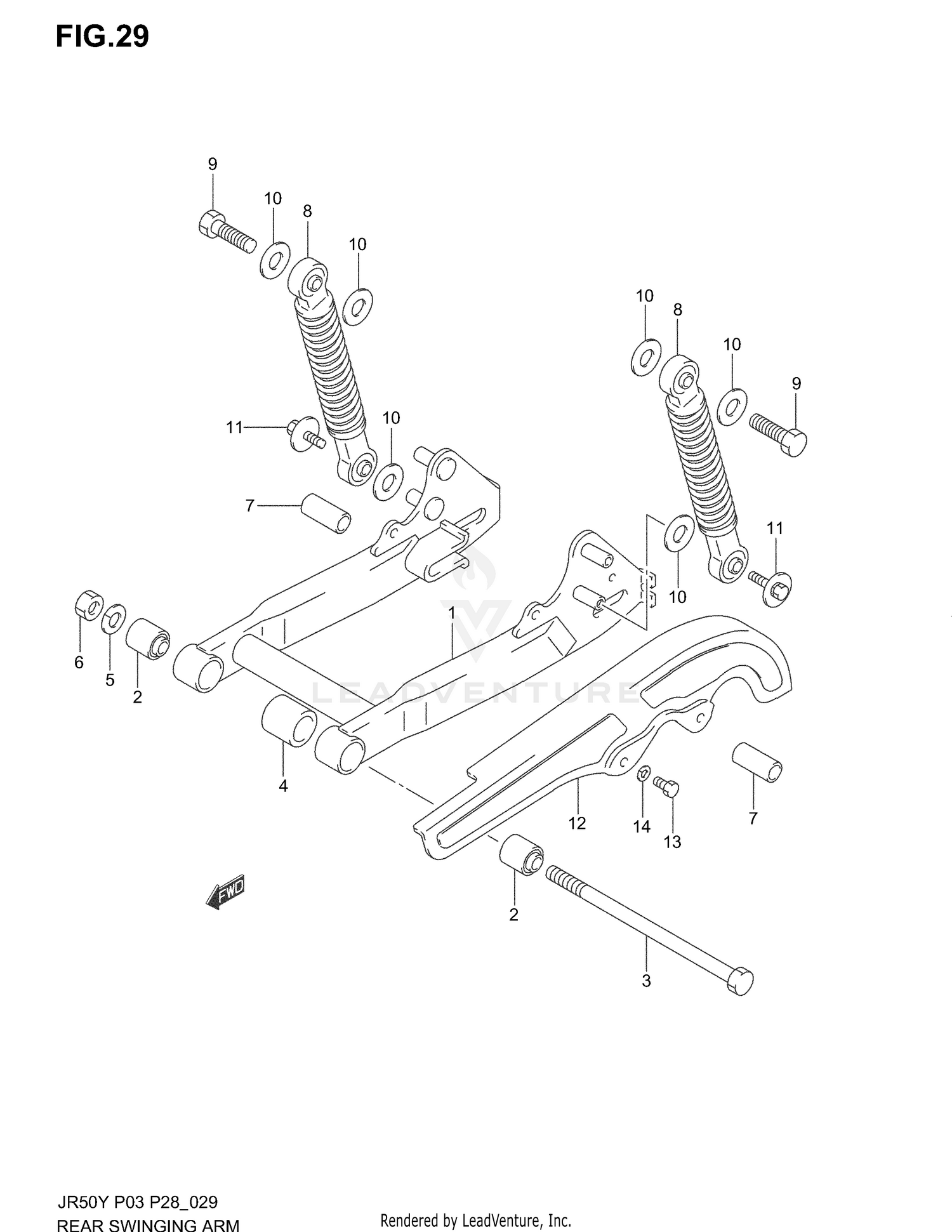

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR (SILVER)
61000-04420-13L
|
$105.77 | ||
|
Unavailable |
|||
|
#2
BUSHING (10X22X28)
09319-10014
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, PIVOT
61211-04410
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, PIVOT
61211-04420
|
$20.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION R SWING
09320-20002
Superseded by 09320-20012
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,10.5X22X
09160-10119
Superseded by 09160-10143
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT
08310-00103
Superseded by 08310-0010A
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CAP, BOSS
61223-04420
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
ABSORBER ASSY, REAR SHOCK
62100-04410
|
$70.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HANDLE HOLDER
01500-10353
Superseded by 01500-1035B
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,10.5X22X
09160-10119
Superseded by 09160-10143
|
$2.95 | ||
|
Unavailable |
|||
|
#11
BOLT (6X12)
09118-06055
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CASE, CHAIN
61310-04410
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
LOCK WASHER
08321-01063
Superseded by 08321-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
