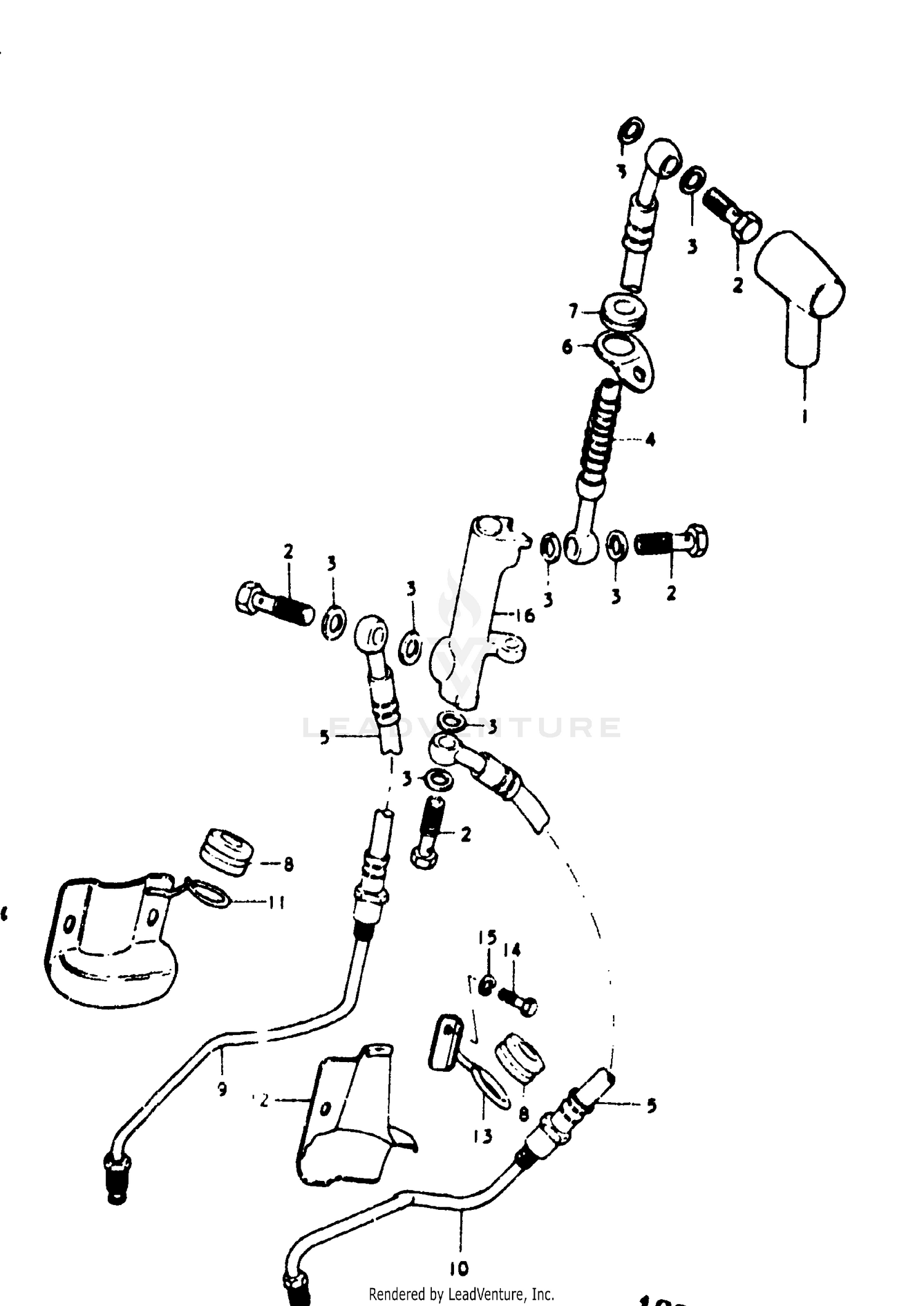

Brake Hose (gt750k) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT, MASTER CYLINDER
59711-18400
Superseded by 59711-49001
|
$9.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNION
09360-10003
Superseded by 09360-10017
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER (10X15X1.5)
09161-10005
Superseded by 09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,FRONT BRAK
59480-31010
Superseded by 59480-33410
|
$63.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
NO DESCRIPTION AVAILABLE
59240-31010
Superseded by 59240-31700
|
$15.82 | ||
|
Unavailable |
|||
|
#6
GUIDE, BRAKE HOSE
59243-31000
|
$2.59 | ||
|
Unavailable |
|||
|
#7
GROMMET
09308-14007
Superseded by 09308-14009
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET, BRAKE HOSE
59244-18400
|
$1.10 | ||
|
Unavailable |
|||
|
#9
PIPE, BRAKE RH
59250-34020
|
|||
|
Unavailable |
|||
|
#10
PIPE, BRAKE LH
59450-31020
|
|||
|
Unavailable |
|||
|
#11
COVER, BRAKE PIPE RH
59280-18400
|
$6.56 | ||
|
Unavailable |
|||
|
#12
COVER, BRAKE PIPE LH
59510-31000
|
$3.02 | ||
|
Unavailable |
|||
|
#13
COVER, BRAKE PIPE LH
59470-31000
|
$2.40 | ||
|
Unavailable |
|||
|
#14
FRM CVR,SCREW(6
09128-06011
Superseded by 09128-06092
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER,LOCK
08321-21068
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
JOINT, THREE WAY BRAKE HOSE
59491-31030
|
|||
|
Unavailable |
|||
