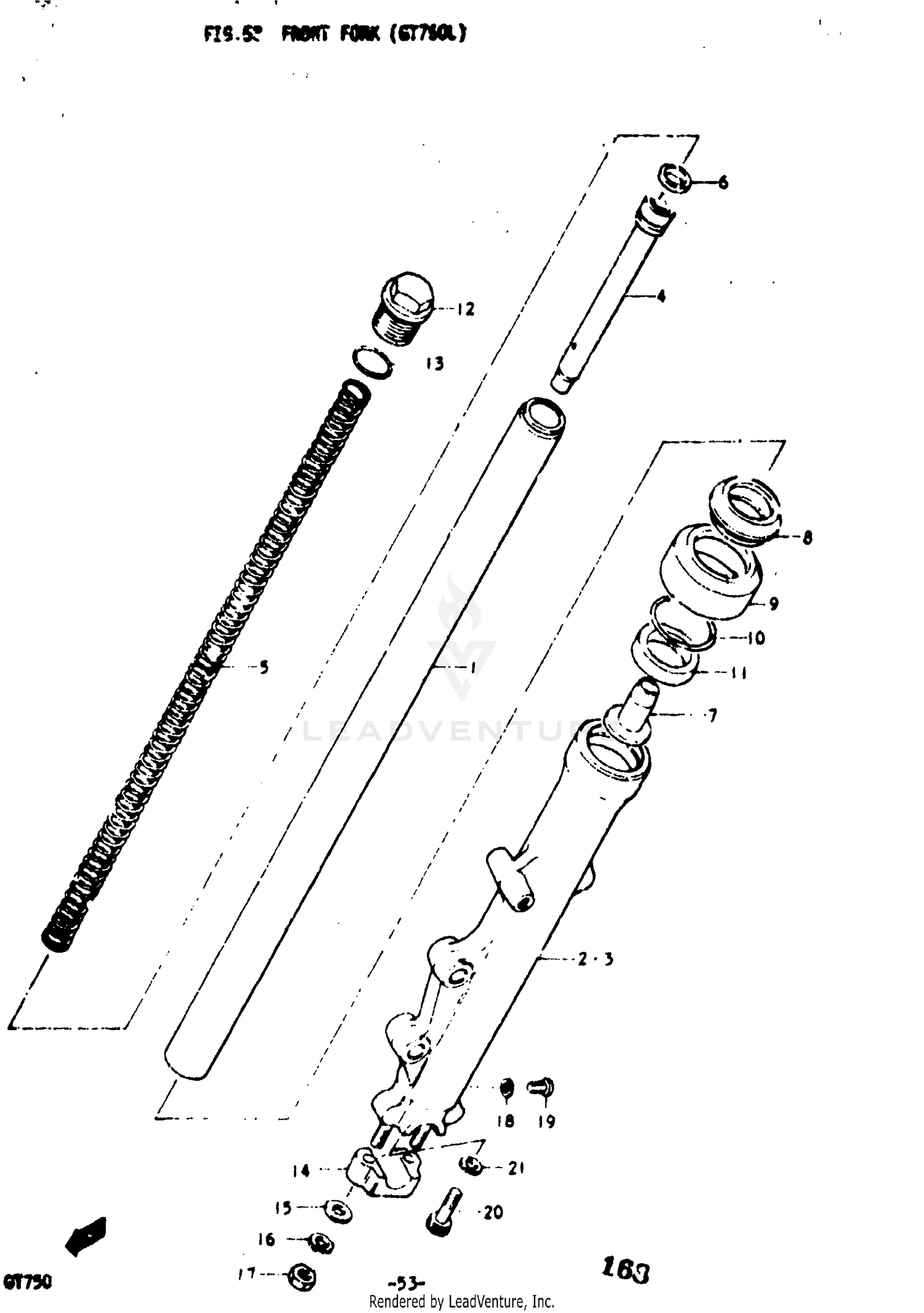

Front Fork (gt750l) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
DAMPER ASSY, RH
51103-31230
|
$219.73 | ||
|
Unavailable |
|||
|
#
DAMPER ASSY, LH
51104-31230
|
$179.32 | ||
|
Unavailable |
|||
|
#1
TUBE
51110-31203
|
|||
|
Unavailable |
|||
|
#2
OUTER TUBE, RH
51131-31230
|
$95.16 | ||
|
Unavailable |
|||
|
#3
OUTER TUBE, LH
51141-31230
|
$89.69 | ||
|
Unavailable |
|||
|
#4
INNER, TUBE
51146-31230
|
$35.44 | ||
|
Unavailable |
|||
|
#5
SPRING
51171-31230
Superseded by 51171-31231
|
$24.21 | ||
|
Unavailable |
|||
|
#6
RING
51196-31230
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIECE, OIL LOCK
51195-31230
|
$10.02 | ||
|
Unavailable |
|||
|
#8
DUST SEAL
51571-31230
Superseded by 51571-20520
|
$24.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE COVER
51572-31230
|
$14.02 | ||
|
Unavailable |
|||
|
#10
.RING,OIL SEAL STOPPER
51156-31230
Superseded by 51156-01A00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
.SEAL,OIL
51153-34730
Superseded by 51153-19D10
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
51351-31030
|
$37.34 | ||
|
Unavailable |
|||
|
#13
O RING
51181-31030
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER
51132-31030
|
$34.09 | ||
|
Unavailable |
|||
|
#15
WASHER
08322-21088
Superseded by 08322-01087
|
$2.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT
08311-11088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GASKET
51183-33030
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02111-04067
Superseded by 02112-0406B
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
51147-31030
Superseded by 51147-48130
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
.GASKET (8.2X13X1.5)
51148-31030
Superseded by 51148-36011
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
