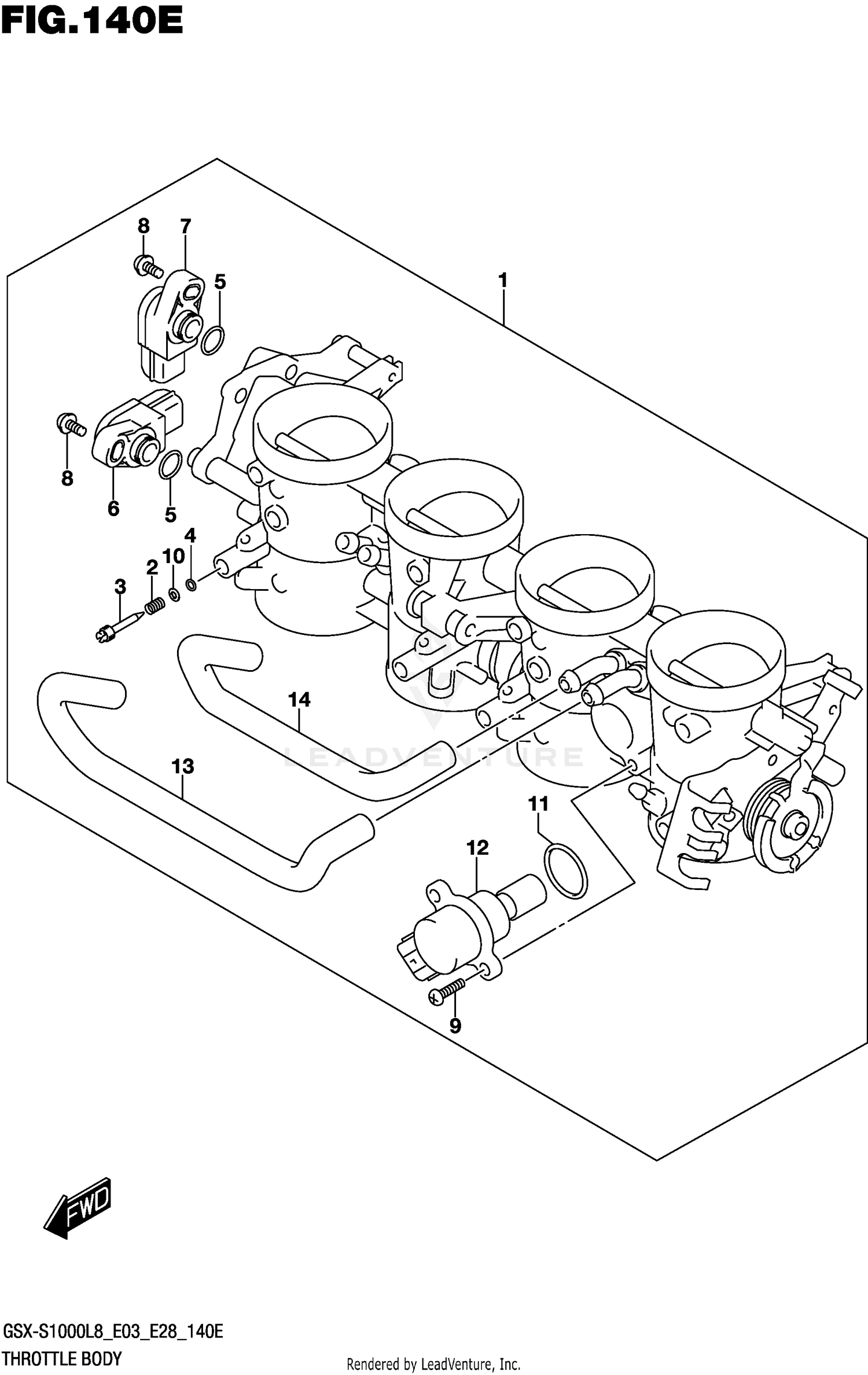

Throttle Body (gsx-s1000l8 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROT
13405-04K30
Superseded by 13405-04K31
|
$1,419.33 | ||
|
Unavailable |
|||
|
#2
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
.SCREW
13269-33E00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O-RING
13575-29G00
Superseded by 13575-29G01
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SENSOR
13580-14J00
|
$169.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
.SENSOR ASSY
13580-29G00
|
$153.72 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW
13605-02F00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
13602-05A40
Superseded by 02112-0412A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
.WASHER
13606-47A00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O RING
13679-37H00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#12
.MOTOR ASSY
18117-14J01
|
$436.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
.HOSE
13698-08J00
|
$47.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
.HOSE
13698-08J10
|
$39.05 | ||
|
Available to order. Add to View Price |
|||
