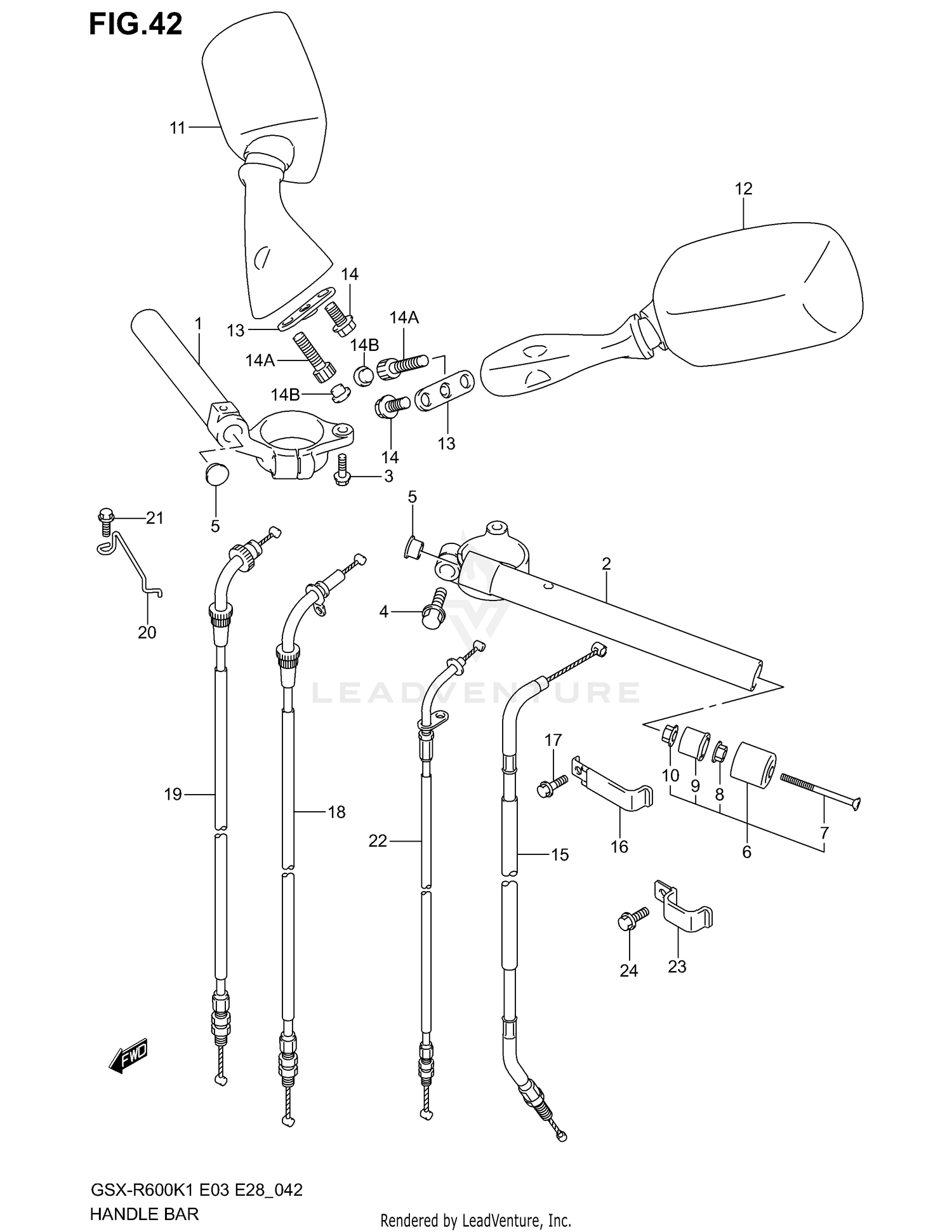

Handlebar Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR, RH
56111-39F00
|
$220.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
HANDLEBAR, LH
56151-39F00
|
$220.30 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HANDLEBAR
56123-35F00
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
09250-14006
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
BALANCER SET,HA
56200-35830
Superseded by 56200-35831
|
$51.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02122-06603
Superseded by 02122-0660B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
EXPANDER
56272-44500
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09159-06024
|
$2.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
MIRROR ASSY, REAR VIEW RH
56500-24F00
Superseded by 56500-24F20
|
$289.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
MIRROR ASSY, REAR VIEW RH
56500-40F10
|
$184.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
MIRROR ASSY, REAR VIEW LH
56600-24F00
Superseded by 56600-24F20
|
$269.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
MIRROR ASSY, REAR VIEW LH
56600-40F10
|
$184.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION,REAR VIEW MIR
94576-24F00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14A
BOLT
07130-06303
Superseded by 07130-0630B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#14B
BOLT
09250-05009
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE ASSY, CLUTCH
58200-39F00
|
$26.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE ASSY, CLUTCH
58200-35F10
|
$32.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
36651-35F00
Superseded by 36651-35F02
|
$3.11 | ||
|
Unavailable |
|||
|
#17
BOLT
01550-05123
Superseded by 01550-0512B
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE ASSY, THROTTLE NO.1
58300-39F00
|
$27.61 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE ASSY, THROTTLE NO.1
58300-39F20
|
$38.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY, THROTTLE NO.2
58300-39F10
|
$26.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
CABLE ASSY, THROTTLE NO.2
58300-39F30
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE,THROTTLE
58621-35F10
Superseded by 58621-35F1V
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE, STARTER
58410-39F00
|
$42.64 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
09403-10307
Superseded by 09403-10328
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
