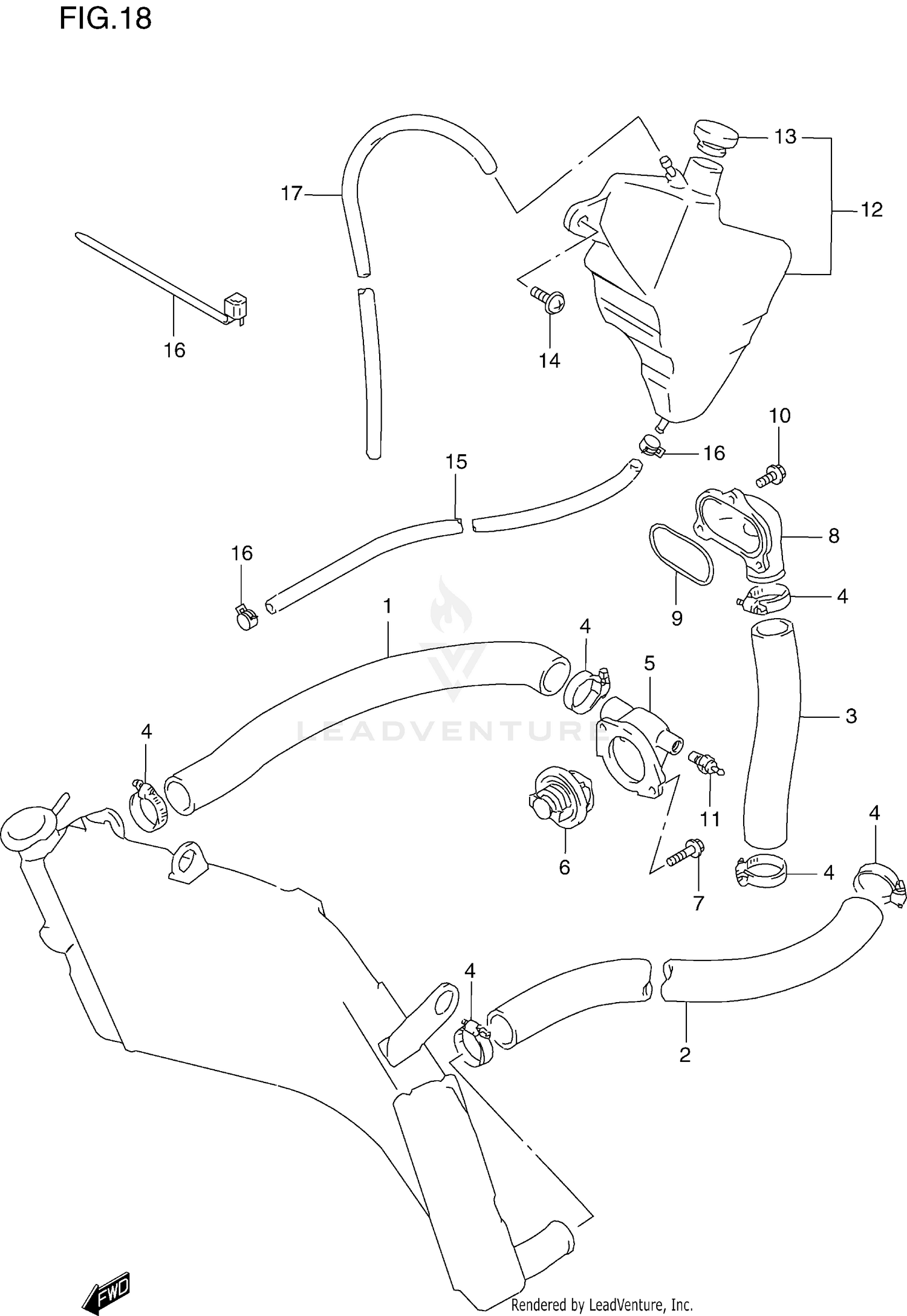

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RADIATOR INLET
17851-33E00
|
$31.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, RADIATOR OUTLET
17852-33E00
|
$35.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, CYLINDER INLET
17853-33E00
|
$19.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09402-38511
|
$14.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR, THERMOSTAT INLET
17662-33E00
|
$37.46 | ||
|
Unavailable |
|||
|
#6
THERMOSTAT,WATE
17670-32C01
Superseded by 17670-32C02
|
$48.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
THERMOSTAT,WATE
17670-32C10
Superseded by 17670-32C11
|
$52.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
07120-06203
Superseded by 07120-0620B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR,CYL WATER INLET
17861-33E00
Superseded by 17861-33E20
|
$29.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
O RING,CYL WATER CONNECTOR
17863-33E00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
GAUGE ASSY, WATER TEMP
34850-33E00
|
$77.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK ASSY, RESERVOIR
17910-33E00
|
$74.28 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CAP, RESERVOIR TANK
17932-12C00
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (6X20)
09136-06022
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE SET,RSVR I
17981-12C00
Superseded by 17900-41810
|
$33.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
09401-08411
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, OVER FLOW
17982-38810
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
09407-18403
Superseded by 09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLAMP
09407-18402
|
$2.77 | ||
|
Unavailable |
|||
