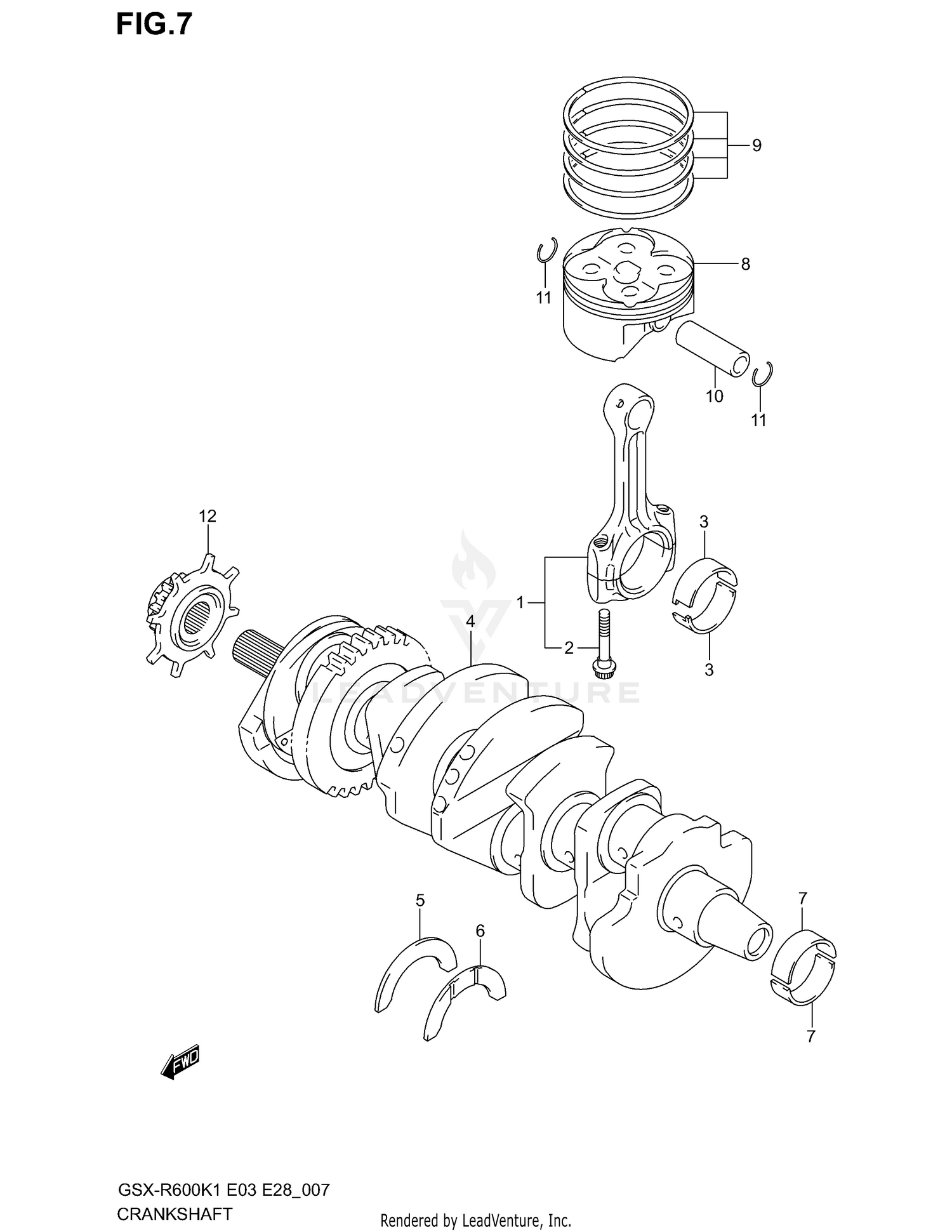

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD ASSY, CONNECTING
12160-39F00
|
$146.97 | ||
|
Unavailable |
|||
|
#2
.BOLT, CONNECTING ROD
12163-35F00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#2A
PIN
12165-27A50
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN
12164-39F00-0A0
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN
12164-39F00-0B0
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN
12164-39F00-0C0
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN
12164-39F00-0D0
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKSHAFT SET
12000-39830
|
$1,196.33 | ||
|
Unavailable |
|||
|
#5
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#6
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (GREEN)
12229-35F00-0A0
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (BLACK)
12229-35F00-0B0
|
$22.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (BROWN)
12229-35F00-0C0
|
$22.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (YELLOW)
12229-35F00-0D0
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON
12111-39F00-0F0
|
$118.73 | ||
|
Unavailable |
|||
|
#9
RING SET, PISTON
12140-39F00
|
$77.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PISTON
12151-39F00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, SNAP
09381-14001
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPROCKET, CAM CHAIN
12731-35F00
|
$119.98 | ||
|
Available to order. Add to View Price |
|||
