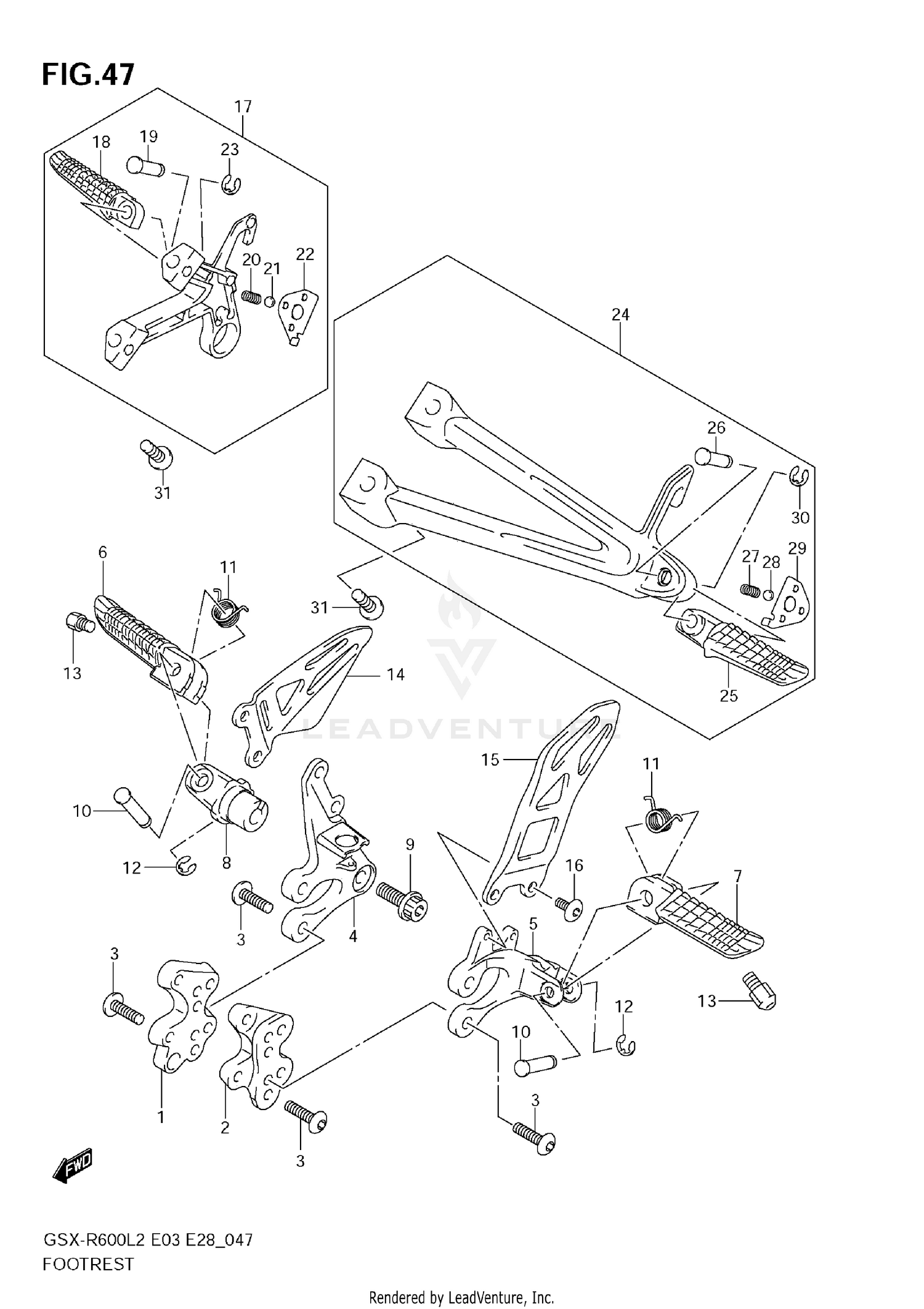

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FOOTREST NO.1 RH
43541-14J00
|
$34.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FOOTREST NO.1 LH
43551-14J00
|
$34.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X23)
09106-08186
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FOOTREST NO.2 RH
43511-14J00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, FOOTREST NO.2 LH
43521-47H10
|
$153.24 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, FOOTREST RH
43516-37H00
|
$54.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAR, FOOTREST LH
43526-37H00
|
$52.68 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, FOOTREST
43531-41G10
|
$111.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (10X28)
09106-10064
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09208-08018
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
09448-14037
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
E-RING
08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BOLT,BANK SENSOR
43576-07D01
|
$11.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, FOOTREST RH
43571-47H00
|
$90.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FOOTREST LH
43576-47H10
|
$88.67 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW,FOOTREST GUARD LH
43577-35F00
Superseded by 43577-35F10
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST, PILLION RH (SILVER)
43600-14J00
|
$298.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAR,PILLION FOOTREST RH
43611-37H00
Superseded by 43611-37H20
|
$50.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
09208-08017
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-05003
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
.PLATE,PILLION FOOTREST RH
43816-47H00
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#23
E-RING
08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#24
FOOTREST, PILLION LH (SILVER)
43700-14J00
|
$292.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAR,PILLION FOOTREST LH
43621-37H00
Superseded by 43621-37H20
|
$48.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN
09208-08017
|
$3.67 | ||
|
Unavailable |
|||
|
#27
SPRING
09440-05003
|
$1.79 | ||
|
Unavailable |
|||
|
#28
BALL
06111-07004
|
$1.53 | ||
|
Unavailable |
|||
|
#29
.PLATE,PILLION FOOTREST LH
43826-47H00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#30
E-RING
08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#31
BOLT (8X23)
09106-08186
|
$4.29 | ||
|
Unavailable |
|||
