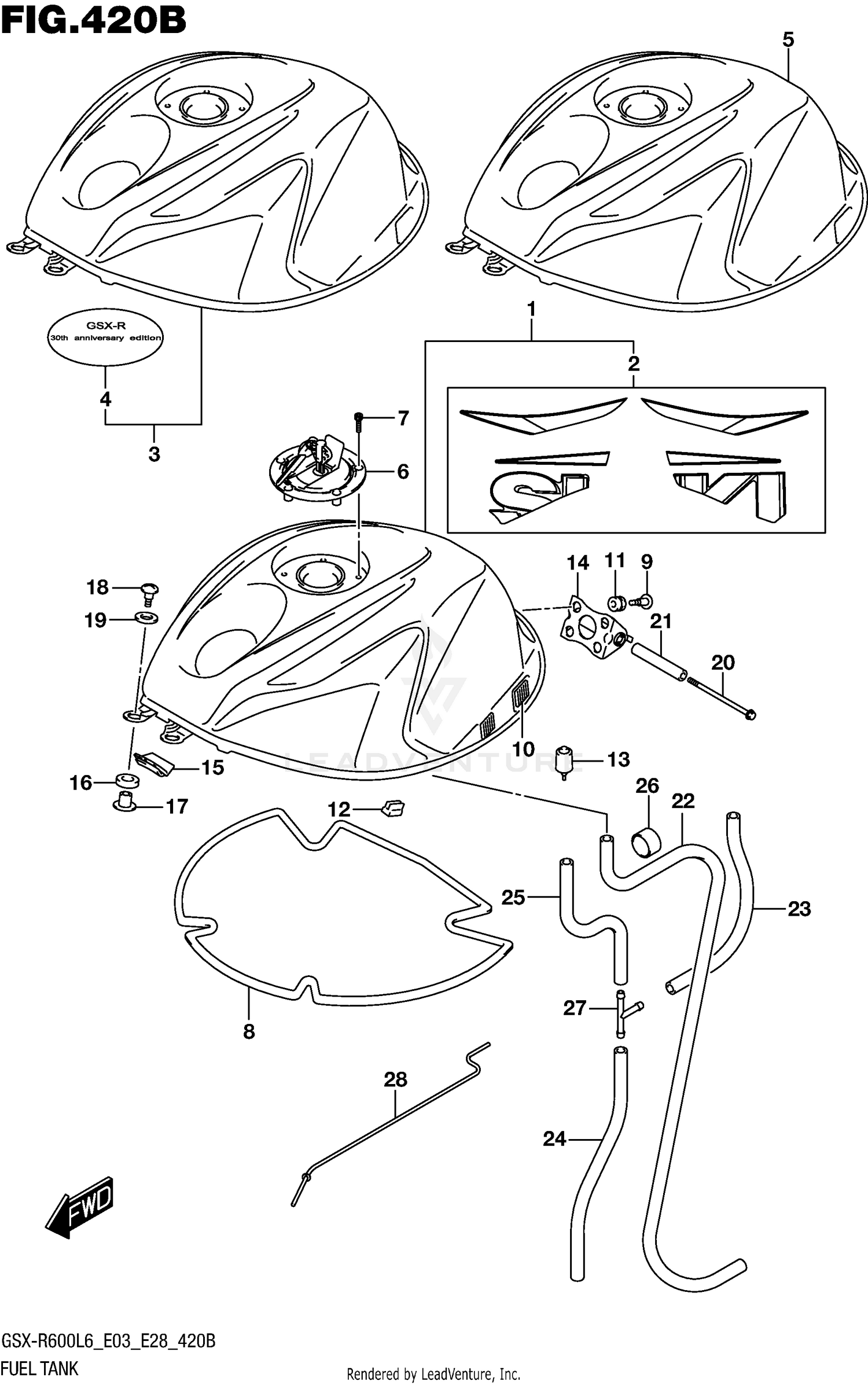

Fuel Tank (gsx-r600l6 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY, FUEL (BLUE)
44100-14J60-YSF
|
$1,341.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TAPE SET, FUEL TANK
68110-14J00-A3E
|
$198.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
(WHITE/BLUE)
68110-14J00-A3E
|
$198.55 | ||
|
Unavailable |
|||
|
#3
TANK ASSY (BLUE)
44100-14J90-YKY
|
$955.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
.EMBLEM, FUEL TANK COVER
68121-47H10-QES
|
$28.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
TANK ASSY, FUEL (RED)
44100-14J32-YVZ
|
$1,637.36 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP SET,FUEL TA
44200-16850
Superseded by 44200-16852
|
$151.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
44244-11J00
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIELD,FUEL TANK HEAT
44191-14J00
|
$104.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
44543-14J00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-08071
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION,FUEL TANK COVER
44276-21H00
Superseded by 44276-21H01
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION,FUEL TANK REAR
44542-41G00
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, REAR
44530-41G01
|
$45.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER,FUEL TANK FRONT
44546-44H00
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
CUSHION,FUEL TANK FRONT
44511-16G00
Superseded by 44511-16G01
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER,FUEL TANK,FR
44512-16G00
|
$9.59 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW (6X25)
09139-06192
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
09160-06012
Superseded by 09160-06054
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (6X110)
09106-06119
|
$7.23 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER,FUEL TANK REAR
44561-18G00
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE,FUEL TANK WATER DRAIN
44423-14J00
Superseded by 44423-14J01
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE,FUEL TANK BRTHR NO.1
44424-14J00
Superseded by 44424-14J01
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,FUEL TANK BRTHR NO.2
44424-14J10
Superseded by 44424-14J11
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE,VACUUM
44425-09E00
Superseded by 44425-09E01
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE (12X16X600)
09352-12163-600
|
$8.81 | ||
|
Unavailable |
|||
|
#27
3 WAY
09367-06007
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY, FUEL TANK
44574-35F00
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLOR :
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#29
AJP=YKY(BLUE),YWW(WHITE)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#29
:
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#29
ARB=YVZ(RED),YKV(BLACK)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
