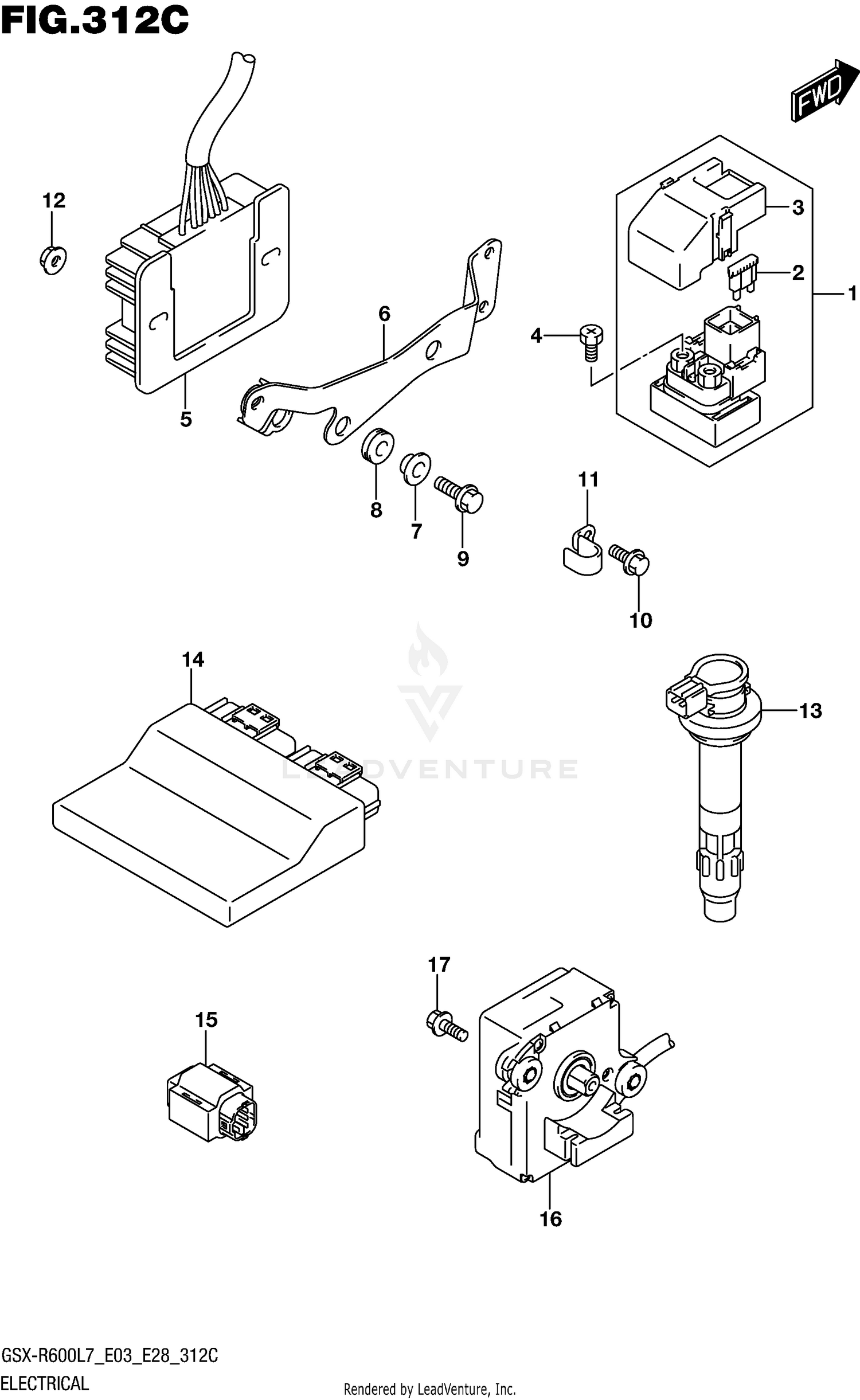

Electrical (gsx-r600l7 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-06G00
Superseded by 31800-06G02
|
$86.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FUSE (30A)
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
.COVER, STARTER
31861-47E00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, RECTIFIER
32830-14J00
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.2X8.4X6.9)
09180-06325
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
.CUSHION (8.4X18X6)
09320-08066
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X20)
09116-06182
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COIL ASSY,IGNITION
33410-37H00
|
$195.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
CONTROL UNIT,FI
32920-14J90
Superseded by 32920-14J91
|
$2,197.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
SENSOR ASSY, FUEL CUT
33960-27G00
|
$124.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
ACTUATOR ASSY
33970-47H01
Superseded by 33970-47H03
|
$465.80 | ||
|
Unavailable |
|||
|
#17
BOLT (6X32.5)
09116-06148
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
