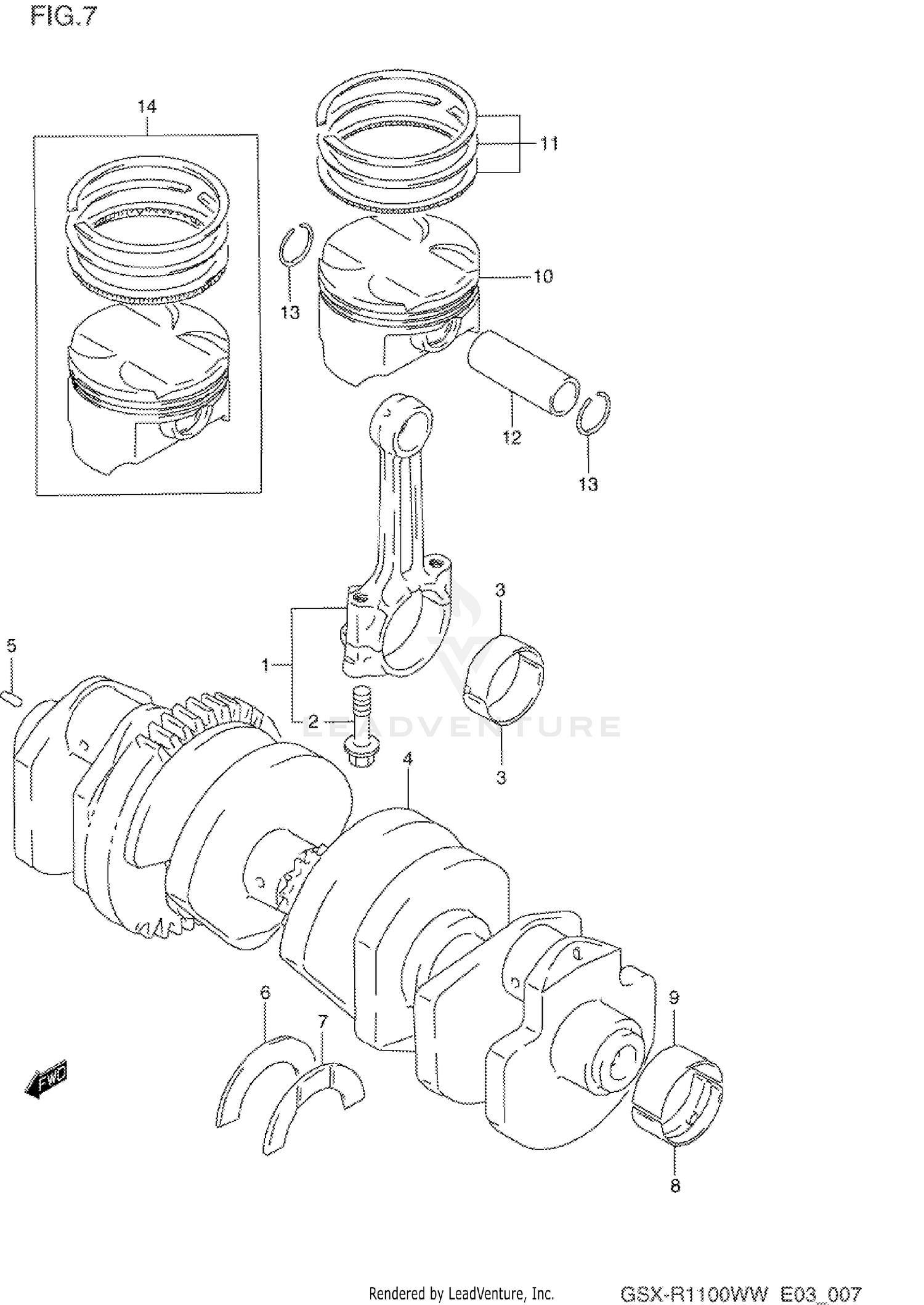

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD ASSY, CONNECTING
12160-46E02
|
$168.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
12163-17C50
|
$21.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING,CRANK PIN (T:1.484/1.
12164-46E01-0A0
|
$21.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING,CRANK PIN (T:1.488/1.
12164-46E01-0B0
|
$21.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING,CRANK PIN (T:1.492/1.
12164-46E01-0C0
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING,CRANK PIN (T:1.496/1.
12164-46E01-0D0
|
$22.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKSHAFT SET
12000-46821
|
$1,365.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#7
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (GREEN)
12229-17E00-0A0
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLACK)
12229-17E00-0B0
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BROWN)
12229-17E00-0C0
|
$13.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (YELLOW)
12229-17E00-0D0
|
$11.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (GREEN)
12229-46E00-0A0
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLACK)
12229-46E00-0B0
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BROWN)
12229-46E00-0C0
|
$13.61 | ||
|
Unavailable |
|||
|
#8
BEARING, CRANKSHAFT (YELLOW)
12229-46E00-0D0
|
$15.07 | ||
|
Unavailable |
|||
|
#9
BEARING, CRANKSHAFT (GREEN)
12229-17E10-0A0
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (BLACK)
12229-17E10-0B0
|
$15.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (BROWN)
12229-17E10-0C0
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (YELLOW)
12229-17E10-0D0
|
$9.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (GREEN)
12229-46E10-0A0
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (BLACK)
12229-46E10-0B0
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (BROWN)
12229-46E10-0C0
|
$18.23 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING, CRANKSHAFT (YELLOW)
12229-46E10-0D0
|
$13.61 | ||
|
Unavailable |
|||
|
#10
PISTON
12111-46E06-0F0
Superseded by 12111-46E07-0F0
|
$87.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON
12111-46E07-0F0
|
$87.41 | ||
|
Unavailable |
|||
|
#11
RING SET, PISTON
12140-46E12
Superseded by 12140-46E13
|
$95.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING SET, PISTON
12140-46E13
|
$95.94 | ||
|
Unavailable |
|||
|
#12
PIN,PISTON
12151-24A00
|
$28.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
09381-20004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON SET (OS:0.5)
12100-46E01-050
|
$149.40 | ||
|
Available to order. Add to View Price |
|||
