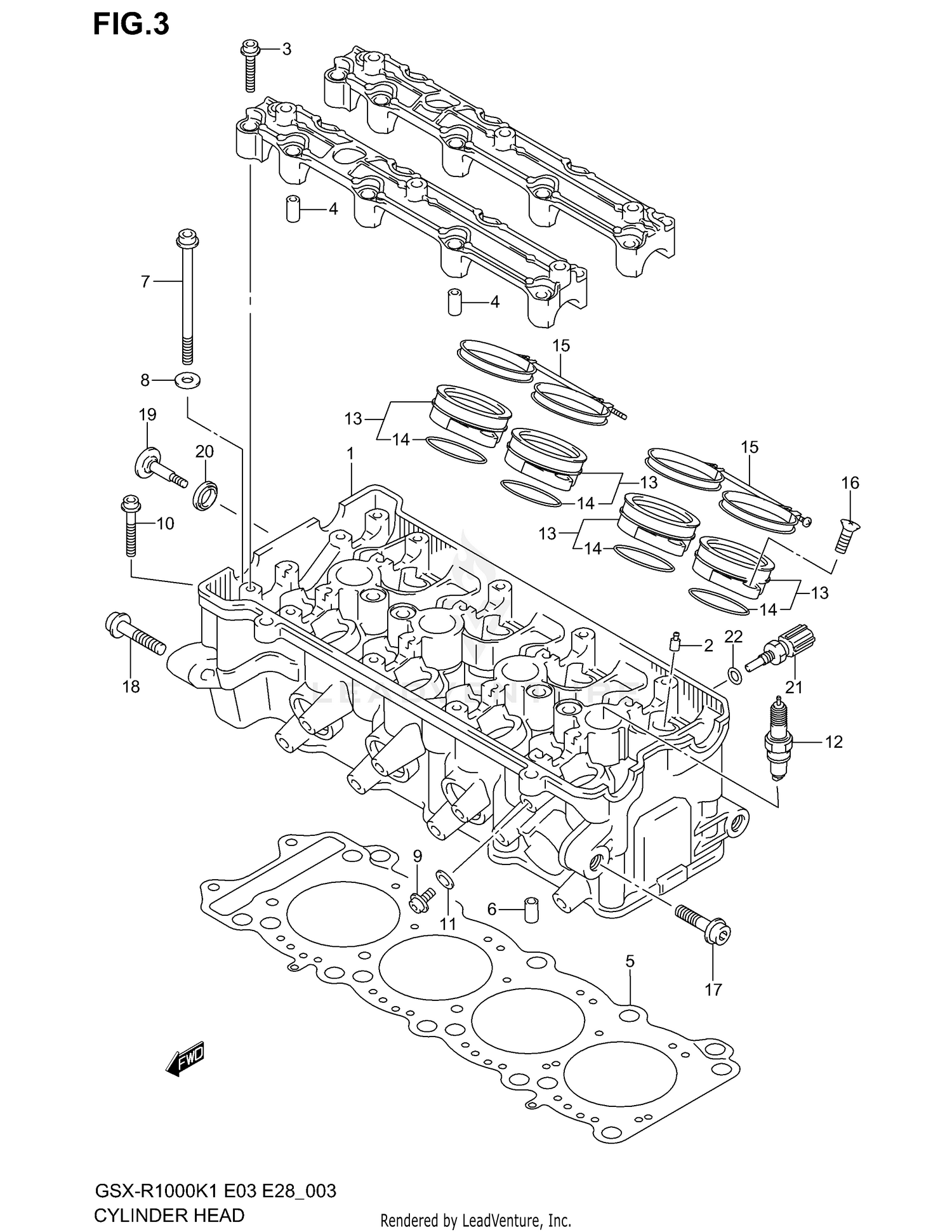

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-35F00
|
$1,350.49 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
11115-11D70
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07120-06403
Superseded by 07120-0640B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
09206-08007
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
11141-40F00
|
$115.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
.PIN
04211-11169
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09103-10330
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09160-10082
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, OIL GALLERY
07120-06123
Superseded by 07120-0612B
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, RECTIFIER
07120-06503
Superseded by 07120-0650B
|
$4.47 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
GASKET
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPARK PLUG (CR9E)
09482-00458
|
$7.99 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (DENSO,U27ESR-N)
09482-00459
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPARK PLUG (NGK,CR8E)
09482-00456
|
$8.32 | ||
|
Unavailable |
|||
|
#12
SPARK PLUG (NGK,CR10E)
09482-00460
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPARK PLUG (DENSO,U24ESR-N)
09482-00457
|
$7.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPARK PLUG (DENSO,U31ESR-N)
09482-00461
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, INTAKE
13101-40F00
|
$50.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
.O-RING (D:2.4,ID:47X42)
09280-46006
Superseded by 09280-46007
|
$8.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP
13170-35F01
|
$33.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW
02122-06163
Superseded by 02122-0616A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, ENG MOUNTING HEAD (10X45)
09106-10069
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, ENG MOUNTING HEAD (10X55)
09106-10070
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, CYL HEAD SIDE FACE
11161-33E00
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
11191-13E00
|
$5.86 | ||
|
Available to order. Add to View Price |
|||
|
#21
SENSOR, WATER TEMPERATURE
13650-51G10
|
$118.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
