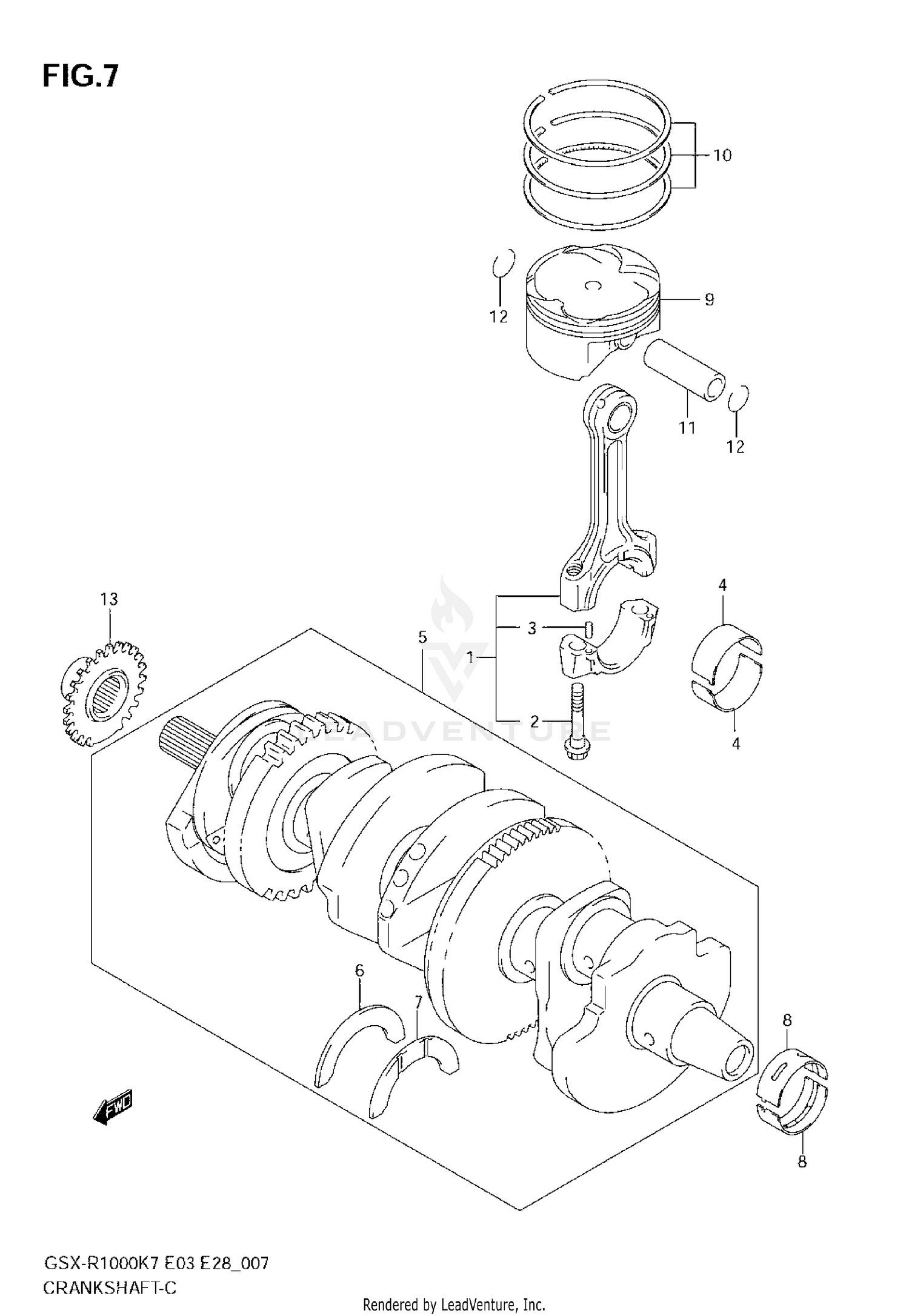

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROD ASSY, CONNECTING
12160-41G10
|
$300.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BOLT,CONNROD
12163-24F10
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CONNROD
12165-27A50
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (GREEN)
12164-41G01-0A0
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (BLACK)
12164-41G01-0B0
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (BROWN)
12164-41G01-0C0
|
$15.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, CRANK PIN (YELLOW)
12164-41G01-0D0
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT SET
12000-41820
Superseded by 12000-48851
|
$1,558.28 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BEARING, CRANK THRUST
12228-48B00-0E0
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0B0
|
$13.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0C0
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0D0
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0E0
|
$12.41 | ||
|
Unavailable |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0F0
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0G0
|
$13.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
.BEARING, CRANK THRUST
12228-48B00-0H0
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (GREEN)
12229-41G00-0A0
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLACK)
12229-41G00-0B0
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BROWN)
12229-41G00-0C0
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (YELLOW)
12229-41G00-0D0
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING, CRANKSHAFT (BLUE)
12229-41G00-0E0
|
$24.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
PISTON
12111-21H00-0F0
Superseded by 12111-21H01-0F0
|
$252.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
RING SET, PISTON
12140-41G10
|
$118.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN,PISTON
12151-41G00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
09381-15001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, CAM CHAIN
12731-29G00
|
$146.42 | ||
|
Available to order. Add to View Price |
|||
